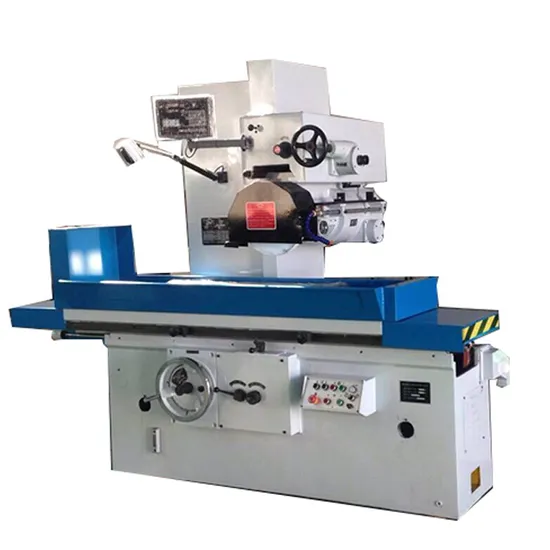

Wheel Head Moving Surface Grinding Machine
| US$8,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7163X2200
Type
Surface Grinding Machine
Processing Object
Curve
Abrasives
Abrasive Belt
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Worktable Size(Wxl)
630*2200
Max Matching Dimension(W X L)
630*2200
Max Distance Between Spindle Center
700
Lineand Worktable Surface
700
Longitudinal Moving Speed of Worktable
3/27
T-Slot Number X W
3*22
Total Power
13.75
Max Loading Capacity
1010
Chuck Size(Wxl)
630*1000*2
Wheel Size
400*40*203
Transport Package
Plyw/Cases
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
8501109190
Production Capacity
200sets/Month
Product Description
Wheel head moving surface grinding machine(M7163X2200)SPECIFICATION1. ISO certification
2. Taiwan cross leadscrew
3. Easy operation
4. Perfect painting
5. Siemens electric elements
Heavy Surface Grinder Machine M7163
This series surface grinder is not only applied to the surface grinding of steel piece, casting piece and other metal material, but also can handle the machining of the slots and flanch surface.
Heavy surface grinder machine M7163 ACCESSORIES
Standard accessories:
Diamond dresser base, Wheel exactor, Balancing arbor, Foundation bolts and wedges, Brush, Electric magnetic chuck.
Optional accessories:
Wheel balancing stand, Diamond pen, Demagnetizer.
Heavy surface grinder machine M7163 surface grinder with good control box and the electrical parts adopted SIEMENS and other famous brand. The circuit is well designed insure more safety.
Heavy surface grinder machine M7163 WORKSHOP
The accuracy of this machine is 0.005mm and it can meet the routine machining job requirement.
The worktable longitudinal movement is driven by the vane pump, so that to make the movement stable and fluently with low noise.
The wheel head adopts the bearing bush structure, so that to handle the heavy duty machining job.
The machine gets the hydraulic auto feed and manual feed in cross feed unit, which is very convenient for operation. The wheel head vertical movement is controlled manually, it also equips with the rapid elevating unit to reduce the labor intensity and improve the working efficiency.
The machine not only works stable and performance reliable, but also gets the advantages of low noise, accuracy stable and easy operation.
| Model | Unit | M7130 | M7140A | M7140A | M7140A | M7150A | M7150A | M7150A | M7163 | M7163 | M7163 | |
| x1600 | x2200 | x1000 | x1600 | x2200 | x1250 | x1600 | x2200 | |||||
| Worktable size(WxL) | Mm | 300x1000 | 400x1000 | 400x1600 | 400x2200 | 500x1000 | 500x1600 | 500x2200 | 630x1250 | 630x1600 | 630x2200 | |
| Max matching dimension(W x L) | Mm | 300x1000 | 400x1000 | 400x1600 | 400x2200 | 500x1000 | 500x1600 | 500x2200 | 630x1250 | 630x1600 | 630x2200 | |
| Max distance between spindle center | Mm | 575 | 600 | 700 | ||||||||
| lineand worktable surface | ||||||||||||
| Longitudinal moving speed of worktable | m/min | 5//25 | 3//27 | |||||||||
| T-slot number x W | Mm | 3x18 | 3x22 | |||||||||
| Wheel head | Continuous | m/min | 0.5-4.5 | |||||||||
| feed speed | ||||||||||||
| Cross moving | Intermittent | Mm/t | 3//30 | |||||||||
| feed speed | ||||||||||||
| Hand wheel | Mm/gra | ------ | 0.02 | 0.01 | ||||||||
| feed | ||||||||||||
| Vertical | Rapid | Mm/min | 400 | |||||||||
| Moving | speed | |||||||||||
| of wheel head | Hand wheel | Mm/.gra | 0.005 | |||||||||
| feed | ||||||||||||
| Wheel Head | Power | Kw | 5.5 | 7.5 | 7.5 | |||||||
| motor | Rotation | Rpm | 1440 | |||||||||
| speed | ||||||||||||
| Total power | Kw | 8.63 | 11 | 13.5 | 12.25 | 13.75 | 15.75 | 13.75 | 15.75 | |||
| Max loading capacity | Kg | 470 | 620 | 1000 | 1380 | 700 | 1240 | 1410 | 1010 | 1290 | 1780 | |
| of worktable | ||||||||||||
| (with chuck) | ||||||||||||
| Chuck size(WxL) | Mm | 300x680 | 400x1000 | 400x800 | 400x1000 | 500x1000 | 500x800 | 500x1000 | 630x1250 | 630x800 | 630x1000 | |
| x1 | x1 | x2 | x2 | x1 | x2 | x2 | x1 | x2 | x2 | |||
| Wheel size | Mm | 350x40 | 400x40 | 400x40x203 | ||||||||
| (ODxWxID) | x127 | x127 | ||||||||||
| Machine | Cm | 286x154 | 311x182 | 494x182 | 674x182 | 311x190 | 514x190 | 674x190 | 399x220 | 514x220 | 674x220 | |
| dimension(LxWxH) | x203 | x223 | x223 | x223 | x242 | x242 | x242 | x242 | x242 | x242 | ||
| Machine Weight | t | 3.49 | 5.01 | 6.51 | 7.6 | 5.78 | 7.32 | 8.78 | 6.86 | 7.85 | 9.65 | |
