Monthly Deals CE FDA Fiber Laser Marking Engraving Machine for Metallic

Product Description

China marking machine factory! CE ROHS FDA
Factory great promotion!
fiber laser marking engraving machine,20w 30w 50w 100w 120w laser
Durable marking fiber laser marking machine on metals

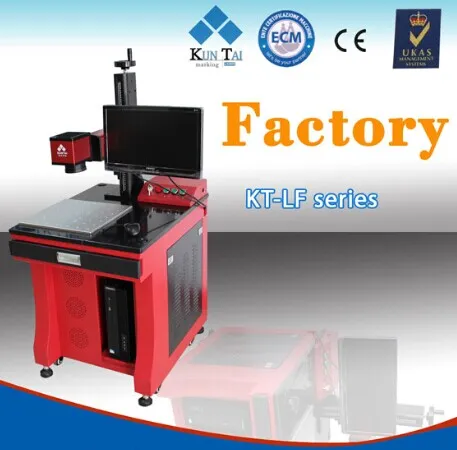

KT-series high quality laser marking machine is a new generation laser marking system made with newest laser technique in the world,
It design with fiber laser maker as laser source, and thru high-speed vibration-mirror scan system to actualize marking function,
The fiber laser making machine have high conversion efficiency of electric-light, mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe, communication products images marking etc.
Specification:

Item no	KT-LF
Laser output	20w 30w 50w 100w 120w
Max marking speed	800 characters/s, height of cahrater 1mm
Laser wavelength	1064nm
Beam quality(m2)	< 1.8 square metres
Standard marking area	100mm× 100mm
Marking depth	< 0.1mm, according to different materials
Whole machine power	800W
Min line width	0.01mm
Repeatabilityprecision	± 0.001mm
Out package size	900X700X1150mm
Cooling system	Air cooling

Main spare parts and Packing list:
Packaging and shipping
Model: KT-LF
Each unit per plywood case
Outer dimension: 90x70x115cm
Gross weight: 150kg
Delivery date: Within 15 days after payment received
Shipping: By sea/by air/international express posting
Advantages
1) USB interface connection: Will work with a Laptop or computer.
2) Small and compact: The dimension of fiber marker is very small, convenient to be taken away.
3) High Precision, bring you the fantastic and satisfied marking effect.
4) Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.
5) No Consumables: One Fiber marker can work for many years without any consumables.
6) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.
7) No need to adjust the laser optical path.
8) With Up/Down Focus and scale plate, capable to make location precisely, it is convenient and swift.
Applicable material:
Metals and a variety of non-metallic materials, such as
Hard alloys, oxides, plating, coating, ABS, epoxy resin, ink, engineering plastics and so on. Especially the area which need high request of Deep, smooth, fine degrees such as watches and clocks, the mold industry, bitmap marking and so on
marking samples:

warranty:
1,We supply the software which can assist the marking machine
2,Free design of fixtures as customers required and technical support.
3,We guarantee delivery time within 7 days
4,We can produce the marking machine as your request.
5,TWO years for laser source,one year for other spare parts
Certificate and Our company:
Wuxi Kuntai Automation Co., Ltd has more than 10 years manufacturing experience Our products were all passed CE ROHS FDA ISO, and were exported to Europe, North America, Latin America, Middle East, and South-east Asia.We have a Design group, specilized in constantly improve the existing products and design new Laser products.
