Softel 8 in 1 HD Video Encoder Modulator DVB-C RF out Encoder Modulator

Product Description

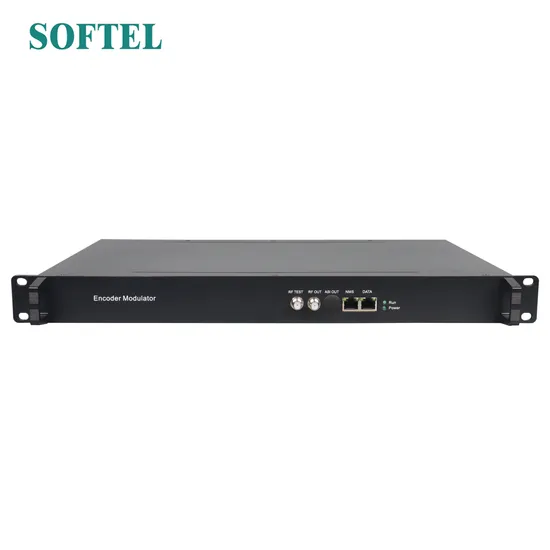

SOFTEL 8 in 1 HD Video Encoder Modulator
Summary
SFT3528S is a professional high integration device which includes encoding, multiplexing, and modulating in one box. It supports 8 HD inputs and DVB-C/T RF out with 4 adjacent carries and 4 MPTS out as mirror out of the 4 modulation carriers via DATA (GE) port. This full function device makes it ideal for small CATV head end system, and it's a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
Features
Support QR code, LOGO, OSD insertion for every local channel
8/16/24 HD input, MPEG-4 AVC/H.264 Video encoding
1DVB-C tuner input for re-mux (only for DVB-C RF out)
128 IP input over UDP and RTP protocol
MPEG1 Layer II Audio encoding and support audio gain adjustment
4 groups of multiplexing/scrambling/modulation output channels
Support 4 MPTS IP (DATA1 port only) output over UDP and RTP
Support PID remapping/accurate PCR adjusting/PSI/SI editing and inserting
Control via web management, and easy updates via web
Lowest cost per channel, breakthrough price
Parameter

Input	4/8/12 HD inputs for option
	1 DVB-C Tuner input for remux, F type interface (only for DVB-C RF out)
	128 IP input over UDP and RTP
Video	Resolution	In-put	1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i,
		Out-put	1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,
	Encoding	MPEG-4 AVC/H.264
	Bit Rate	1Mbps~13Mbps each channel
	Rate Control	CBR/VBR
	GOP Structure	IP…P (P Frame adjustment, without B Frame )
Audio	Encoding	MPEG1 Layer 2;
	Sampling rate	48KHz
	Resolution	24-bit
	Audio Gain	0-255 Adjustable
	Bit-rate	64kbps, 96kbps, 112kbps, 128kbps, 160kbps, 192kbps, 224kbps, 256kbps, 320kbps,384kbps
Multiplexing	Maximum PID Remapping	180 input per channel
	Function	PID remapping ( automatically or manually)
		Accurate PCR adjusting
		Generate PSI/ SI table automatically
Streaming	Maximum simulcrypt CA	4
	Standard	EN300 429/ITU-T J.83A/B
	Connection	Local/remote connection
Modulation	DVB-C	QAM Channel: 4 Standard: EN300 429/ITU-T J.83A/B MER: ≥40db RF frequency: 50~960MHz, 1KHz step RF output level: -26~-1dBm (81~106 dbµV), 0.1dBm Symbol Rate: 5.0Msps~7.0Msps, 1ksps stepping Constellation: 16/32/64/128/256QAM
			J.83A	J.83B
		Constellation	16/32/64/128/256QAM	64/256 QAM
		Bandwidth	8M	6M
	DVB-T	Standard	EN300744
		FFT mode	2K,
		Bandwidth	6M, 7M, 8M
		Constellation	QPSK, 16QAM, 64QAM
		Guard Interval	1/4, 1/8, 1/16, 1/32
		FEC	1/2, 2/3, 3/4, 5/6, 7/8
		MER	≥42 dB
		RF frequency	50~960MHz, 1KHz step
		RF out	4*RF COFDM DVB-T out (4 carriers combined output)
		RF output level	-28~ -3 dBm (77~97 dbµV), 0.1db step
Stream output	RF output (F type interface)
	4 IP MPTS output over UDP/RTP, 1*1000M Base-T Ethernet interface (Data1 only)
System Function	Network management(WEB)
	Chinese and English language
	Ethernet software upgrade
Miscellaneous	Dimension (W× L× H)				482mm×410mm×44mm
	Approx weight				8kg
	Temperature				0~45ºC(work), -20~80ºC(Storage)
	Power				AC 100V-220V±10%, 50/60Hz,AC 220 ±10%,50/60Hz
	Consumption				70W

Order Information

	SFT3542I-4 (DVB-C RF out)	SFT3542I-4 (DVB-T RF out)	SFT3542I-8 (DVB-C RF out)	SFT3542I-8 (DVB-T RF out)	SFT3542I-12 (DVB-C RF out)	SFT3542I-12 (DVB-T RF out)
4 HD Input	√	√
8 HD Input			√	√
12 HD Input					√	√
Scrambling function	√		√		√
DVB-C Tuner Input	√		√		√
