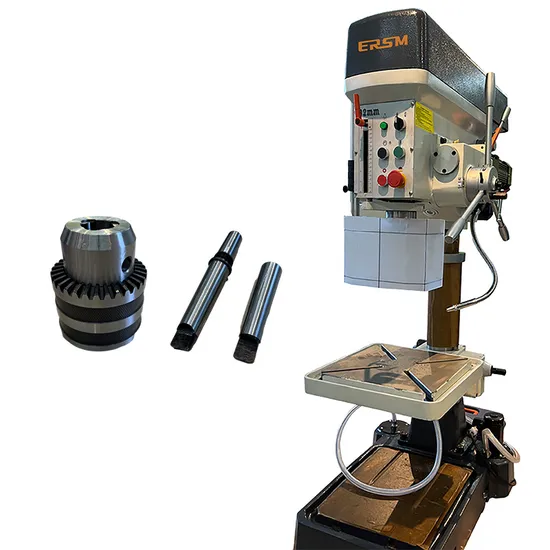

Hot Sale Low Wear Lifting Table Auto Feed Drill Press
| US$970.00-1,260.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AD-4132H
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
2
Hole Diameter
32mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE
Condition
New
Max Drilling Capacity
31.75
Max Tapping Capacity
M20
Spindle Speeds Range
320-1820 R/Min
Motor
1.5kw
Transport Package
Export Wooden Box
Specification
1040*640*1510mm
Trademark
OEM
Origin
Shanghai, China
Product Description
Product Features. Auto feed system
. Driling and Tapping
. Attractive and well placement design
. Solid structure, high rigidity
. Work table can turn 360°
. Long spindle travel
. Wide machining range
. Wide speed range
. Manual and automatic switching
Product Parameter
| Model | AD-4132H AD-4132HP | AD-4120H | AD-4116H | AD-5032H AD-5032HP |
| Max.Drilling Capacity (mm) | 31.75(steel) | 20/16 | 16(steel) | 31.75(steel) |
| Max.Tapping Capacity (mm) | M20(steel) | M20(cast)/M16(steel) | M12(cast)/M10(steel) | M20(steel) |
| Distance spindle axis to column genetating line (mm) | 265 | 240 | 193 | 265 |
| Spindle travel (mm) | manual 150 auto 105 | manual 135 auto 75 | manual 100 auto 75 | manual 150 auto 105 |
| Max.Distance spindle nose to table (mm) | 390 | 366 | 330 | 820 |
| Max.Distance spindle nose to base (mm) | 745 | 678 | 613 | 1235 |
| Diameter of column (mm) | 100 | 85 | 70 | 100 |
| Spindle speeds range (r/min) | 320-1820 | 340-2180 | 320-2730 | 320-1820 |
| Spindle taper | MT3 | MT2 | MT2 | MT3 |
| Dimension of worktable surface (mm) | 380*400 | 300*320 | 265*285 | 380*400/330*330 |
| Motor (kw) | 1.5 | 1.1 | 0.75 | 1.5 |
| Net weight (kg) | 238 | 183 | 153 | 310 |
| Packing dimension (mm) | 1040*640*1510 | 990*590*1400 | 850*540*1280 | 1040*640*2050 |
| Max.feed rate(mm/min) | 113 | 109 | 110 | 113 |
FAQ
1.What models do you have?
There are many types of drilling machines, and we can recommend them according to your needs.
The best-selling series is Bench Drilling Machine and Bench Auto Feed Drilling Machine.
2.Do you have CE certification?
Yes, we have CE . The quality of the machine is guaranteed.
3.Can you accept OEM orders?
Of course, we can accept OEM with your trademark printed on the machine and pack it according to your design.
4.What products does your company provide?
Main products is riveting machine,tapping machine,drilling machine,self-clinching fasteners and so on.
