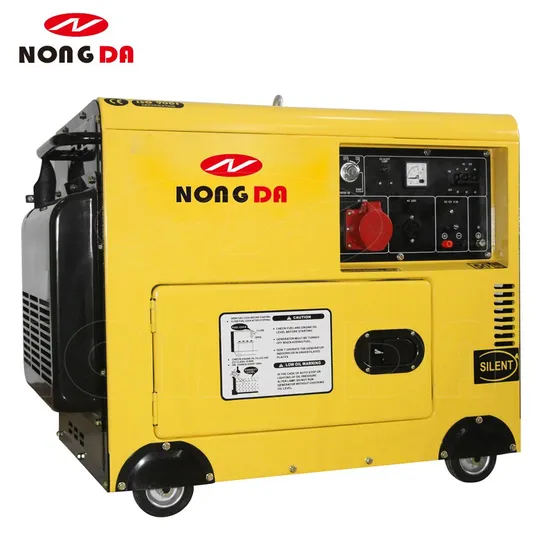

5kVA 6.5kVA 7.5kVA 8kVA Air Cooled Soundproof Silent Diesel Generator

Product Description

6500dse 7800dse 8500dse 5kVA 6.5kVA 7.5kVA 8kVA Soundproof Silent Diesel Generator Product Parameters

ITEM	Open Type Diesel Generator				Soundproof /Silent Diesel Generator
Type	Revolving Magnetic Field,Self-exciting,2 Poles,Single-phase(or 3-phase)
Rating frequency(Hz)		50/60			50/60	50/60	50/60	50/60	50/60
Rated AC Output(kvA)	3.0/3.3	5.0 / 5.5	6.5/7.0	7.5/8.0	5.0 / 5.5	6.5/7.0	7.5/8.0	9/9.5	12/13
Max. AC Output(kvA)	3.3/3.6	5.5 / 6.0	7.0/7.5	8.0/8.5	5.5 / 6.0	7.0/7.5	8.0/8.5	10/10.5	13/14
Voltage(V)	110/220/380/400
Voltage Regulator	Auto Regulating System
Power factor(cos)					0.8/1.0
Model	178F	186F	188F	192F	186FA	188F	192F	198F	2V92
Type					Air-cooled,Single-cylinder,4-stroke,Direct-injection,Diesel Engine
Bore x Stroke(mm)	78X62	86x72	88x75	92x75	86x72	88x75	92x75	98x84	92X75
Diaplacement(CC)	296	418	456	498	418	456	498	618	996
Recommended Fuel					Light Diesel
Fuel tank capacity(L)	12.5	12.5	12.5	12.5	16	16	16	30	30
Engine Oil Capactiy(L)	1.1	1.65	1.65	1.65	1.65
Lube Oil	SAE 10-30W
Start System	Recoil Start/Electric Start				Electric Start
Operating Hour for 1 Tank Fuel(Hrs)	12	7	7	7	9	9	9	12	12
Noise level(7m)dB(A)	82-84				70-72
Packing Dimension Lx Wx H(mm)	660x505x565	745x505x655			955x565x780			1100x760x860	1210x820x930
Gross Weight/Net Weight(kg)	67/62	105/ 100	107/102	109/104	175/170	177/172	179/174	205/210	310/325

Detailed Photos
Product Applications
About Us Taizhou Nongda Machinery Co.,Ltd is located in Taizhou City, Zhejiang Province,China,next to Ningbo Port & Shanghai port,it is very convenient for shipment.Nongda is a Professional Manufacturer of Generator, Water Pump, Engine, Power Tiller,Power Sprayer, Pressure Washer, Brush Cutter and some other Power & Agricultural Machinery. We Own Self brands NONGDA ,KINGMAXPOWER,also offer the products Powered by Honda, Yamaha,Briggs & Stratton .Nongda aimed to be the respectable enterprise who can offer Excellent Quality and VIP service to every Clients all over the world, Whenever you come to Nongda, we will make you feel at home
Few useful tips while you considering us as new supplier:
1.Quality is depend on your market request to offer, we have self-made normal quality and high quality engine,original Honda engine, Kama Engine, B&S engine for your optional.
2.Price based on FOB SHANGHAI/NINGBO, requseting for CNF&CIF price is welcome.
3.MOQ 10PCS,50PCS.100PCS for different products.
4.Delivery time 15-40 days depending on the actual product requirements.
5.Payment term 30% deposit, 70% before shipping. 100% deposit required for amount under $5000. Multifuctional Currencies accepted as follows:

6.Support multi-product container mixing, one-stop purchasing. Please provide the estimated quantity, we will offer the loading plan for 20ft/40HQ.

7. Lifetime spare parts and tech support.
8. Factory ISO9001/140001 audited by TUV, products CE ,EPA approved, EUV emission certified, for option.
√ As a factory, we will always support your with the technologies for all of our products.
√ If any warranty case happens, we will get back to you with our solutions within 24 hours.
√ All the spare parts, within our warranty period, are for free.
√ If exceeds the warranty period, we can also provide the spare parts for all of our products.
Sincerely welcome you to establish long-term cooperation with us,to create a bright tomorrow.
