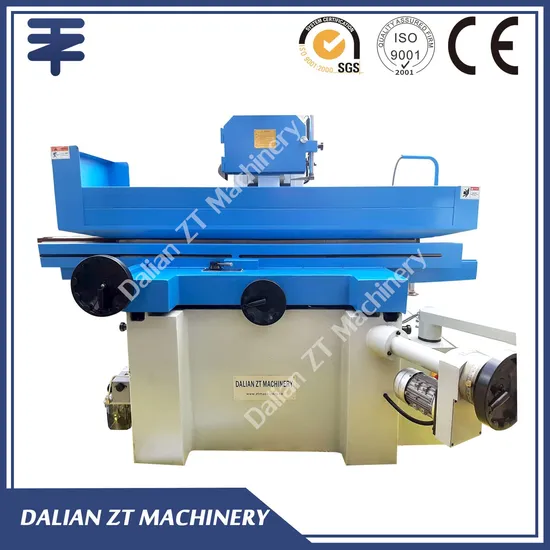

High Precision Saddle Moving Surface Grinder Grinding Machine SG3063 SG40100

Product Description

Application:

Grinding material: cast iron and nonferrous metals.
The model of surface grinding machine is used for mid-type & mini-type material processing workshop and the other repairing & tools workshop.
Features:
Saddle moving grinding machine; Well designed perfect symmetrical structure ensures the machine is very suitable for precision grinding.
Saddle makes elevating movement and is driven by manual (M series), AC motor (R series), or AC servo motor (A series).
Saddle is adopted in the design, all these 3 guideways are lined with TF wearable material and lubricated by intermittent forced oil pump, the column have double walls. The table right and left moving is driven by variable displacement vane pump and adopted closed type hydraulic system. All above make the machine with high rigidity and precision, less thermal distortion, moving smoothly, low noise and temperature increase, is easy to maintain. The table is driven by manual or by hydraulic in right or left direction, the speed is variable changed by adjusting lever located on the saddle, driven by manual or by motor through driven the ball leading screw. The grinding head could be driven by lifting motor ( AHR model) or servo motor( AHD model), also it be driven by manual.
CE standard electric requirements;
Independent hydraulic station;
Turcite coated guide way;

Item	SG-40100M	SG-40100R	SG-40100A
Table size	406*1020mm	406*1020mm	406*1020mm
Magnetic chuck size	400*1000mm	400*1000mm	400*1000mm
Max. Distance from spindle center to table	580mm	580mm	580mm
Table cross travel	450mm	450mm	450mm
Table longitudinal travel	1130mm	1130mm	1130mm
Max. Loading capacity (including chuck)	600kg	600kg	600kg
Speed of table longitudinal movement	5-25m/min	5-25m/min	5-25m/min
Cross motion
Intermittent feedrate	0.1-8mm/t	0.1-8mm/t	0.1-8mm/t
Rapid speed	990mm/min	990mm/min	990mm/min
Feed of handwheel	0.02mm/div	0.02mm/div	0.02mm/div
Vertical motion
Auto down feed rate			0.005-0.5mm/t
Rapid down speed		650mm/min	480mm/min
Feed of handwheel	0.005mm/div.	0.005mm/div.	0.005mm/div.
Spindle speed	1450(50Hz)/1750(60Hz)
Grinding wheel size	350*40*127mm
Spindle motor power	4kW
Floor space (L*W*H)	4400*2400*1900mm
Gross weight	3700kg
Packing size	2950*2270*2210mm

Packing & Shipment
Customers' Visiting
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
