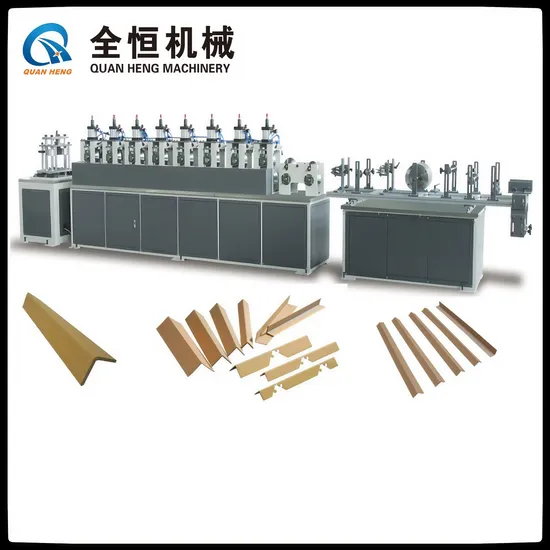

V Kraft Paper Angle Edge Corner Cardboard Protection Protector Making Machine

Product Description

Edge board & Paper board Protector Machine

Paper Angle Protection Specification	Wide20-100mm
	Long50-9000mm
	Thick2-8mm
Production speed	0-40m/min
paper layers	12layers
Forming roller	8 groups
way to control	Frequency
Cut off method	Automatic CNC cutting
Number of operators	1-2
total weight	4322Kg

Main engine power	7.5kw+4.3kw
PLC controller	Special products
HMI	Special products
Frequency converter	ENERGY
Electrical components	Omron/Chint
Signal element	Omron/Pefun
Button/emergency stop	Siemens
Pneumatic Components	Airtac/Tianao
Area size:	27m*3m
Upper paper shelf	Right-angle belt hoisting
Glue frame	Automatic gluing
Paper guide wheel	stainless steel pipe
Host table	Stainless steel plate
Unloading conveyor	2
application tools	1

The angle protection host consists of 8 sets/10 sets/12 composite pressure wheels that rotate coaxially, and the upper pressure wheel is pneumatically adjusted. Adopting frequency converter, servo motor, touch screen, PLC human-machine interface. Easy to operate and learn. The production operation is fully digital, with batch input of production specifications into the touch screen, production quantity monitoring, and automatic shutdown after completion. Automatic alarm, fault prompt, and convenient maintenance. A punching and indentation device can be installed on the corner protection production line, which can punch the corner protection with a width of 30-80mm. Commonly used are 90 degree punching, 90 degree buckle punching, and 5-90 degree surround punching Adopting a thickened and reinforced square tube profile frame, international standard forming wheels and quenching treatment, 10mm thick machine panel, integrated process of punching and throwing tables, chrome plating treatment for all important components, latest servo flying shear table, stable operation, high cutting accuracy, and long service life.
