Electric Laser Feeding System for Versatile Material Processing and Cutting

Product Description

Product Description

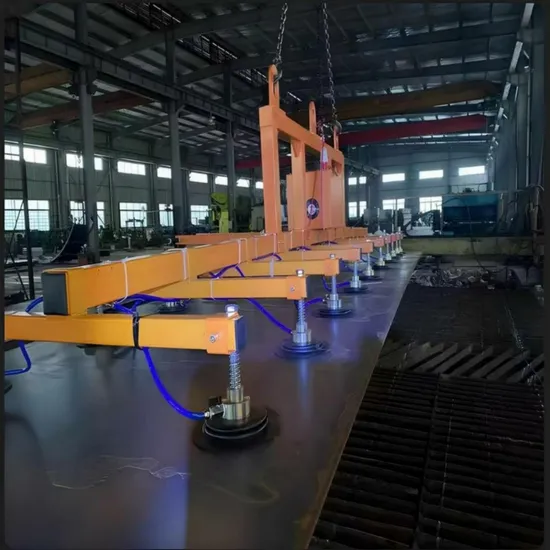

Vacuum Lifter
Enhancing Efficiency with Automation In the realm of modern manufacturing, efficiency and precision are key to competitiveness. The electric laser cutting feeding machine has revolutionized the metalworking industry with its exceptional automation capabilities. This equipment automates the loading and unloading of metal sheets, reducing the need for manual handling and significantly increasing production efficiency. Compared to traditional manual feeding methods, electric laser cutting feeding machines speed up processing by minimizing material handling time, allowing companies to quickly respond to market changes and meet urgent order demands. Moreover, their accurate positioning systems ensure consistent cutting quality, reducing material waste and enhancing product competitiveness in the market. The intelligent operation of electric laser cutting feeding machines not only boosts work efficiency but also lightens the workload, saving costs for businesses and improving the working environment.
Intelligent Operation for Safety and Reliability The electric laser cutting feeding machine's intelligent features offer unprecedented convenience to the metal processing industry. With advanced sensors and control systems, these machines accurately recognize and position metal sheets, ensuring high precision in the cutting process. Operators can input commands through a simple interface, and the electric laser cutting feeding machine automatically completes complex feeding and cutting tasks. This automated operation not only increases production efficiency but also significantly reduces the risk of work-related accidents, ensuring operator safety. Additionally, the stability and reliability of electric laser cutting feeding machines ensure consistent performance during continuous production, reducing equipment breakdowns and maintenance time, and saving businesses considerable operational costs. In summary, with its intelligence, safety, and high efficiency, the electric laser cutting feeding machine has become an ideal choice for metal processing enterprises.
Specification (Support Customerized size)

Model	Length	Capacity	Sucker Qty	Sucker diameter	Input Voltage	Package Size	Gross weight
XDL300-2M	2m	300kg	4pcs	200mm	220/380V	2100x840x840mm	110kg
XDL600-2M	2m	600kg	6pcs	200mm	220/380V	2100x840x840mm	120kg
XDL800-2M	2m	800kg	8pcs	200mm	220/380V	2100x840x840mm	125kg
XDL800-3M	3m	800kg	8pcs	200mm	220/380V	2100x840x840mm	135kg
XDL1000-3M	3m	1000kg	10pcs	200mm	220/380V	2100x840x840mm	180kg
XDL1000-5M	5m	1000kg	10pcs	200mm	220/380V	2100x840x840mm	190kg
XDL2000-5M	5m	2000kg	20pcs	200mm	220/380V	2100x840x840mm	290kg

Precision and Efficiency The electric laser cutting feeding machine stands out for its precision and efficiency in automated material handling. It eliminates manual errors in traditional methods, ensuring each cut is accurate and consistent. This machine's speed and reliability make it an invaluable asset in high-volume production environments, where every second counts.

Operator Comfort and Safety Offering a user-friendly interface, electric laser cutting feeding machines prioritize operator comfort and safety. The reduction of physical labor lessens the risk of injury, while the machine's automated processes free up operators to focus on more complex tasks. This not only enhances productivity but also creates a safer working environment.
Versatility in Material Handling Electric laser cutting feeding machines are designed for versatility, capable of handling a wide range of materials, from thin sheets to thick plates. This adaptability allows manufacturers to diversify their product offerings without the need for additional equipment, saving both space and investment costs
Cost-Effective and Environmentally Friendly These machines are not only cost-effective but also environmentally friendly. By reducing material waste and energy consumption, electric laser cutting feeding machines contribute to sustainable manufacturing practices. Their low maintenance requirements also mean fewer resources are needed for upkeep, further lowering operational expenses.


Product Details
High quality thickened steel sheet metalSheet metal bracket welding base, fully painted bracket connection, not easy to break.Intelligent alarm deviceWhen the automatic detection system determines that the vacuum pressure is lower than the set value of 50, the vacuum alarm will sound and light alarm and provide efficient supply (only 1.5 seconds). When the vacuum height of the sucked plate is lower than the specified value, it will automatically sound the alarm.
Features and Advantages
1. Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric
2. Both ends of the suction cup holder are retractable, suitable for occasions with large size changes
3. Imported oil-free vacuum pump, valve
4. Efficient, safe, fast and labor-saving
5. Accumulator and pressure detection ensure safety
6. Suction cup position adjustable and can be closed manually 7.Usually copperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job.

Our Machine Advantages :
*Professional and experienced Manufacturer Manufacturer specializing in the production, development and production of laser cutting machines, plasma cutting machines and shearing machines for loading and unloading in China. *Various styles, used in different working scenarios 1,The product can be loaded with aluminum plates, stainless steel plates, wooden boards, glass, marble tiles and other flat plates.
2,A variety of structures and suction cups are available for configuration. *Stable structure, stable operation, quality assurance 1,Adopt all-steel structure and use imported vacuum pumps, valves and other parts, such as Airtac, SNS.
2,The company has passed SGS certification and the products have passed CE certification. *Worry-free after sales service Provide a 12-month warranty period, and provide online installation guidance or on-site teaching after sales
