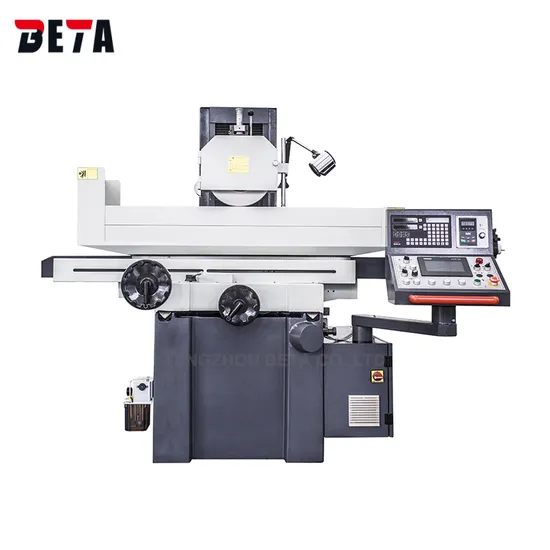

Sga2050ahd Magnetic Chuck Surface Grinding Machine for Metal
Basic Info.
Model NO.
SGA2050AHD
Type
Surface Grinding Machine
Processing Object
Metal Workpiece
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Surface Grinding Machine
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Perfect Precision Flat Surface Grinding Machine
Model
Sga2050ahd
Magnetic Chuck Table Size
200X460mm
Max. Loading Capacity
180kgs
Grinding Type
Surface Grinding for Metal
Chuck
Magnetic Chuck Table
Delivery Time
2 Month
Warranty Time
12 Months
Voltage
380V
Cross Moving
Servo Motor
Longitudinal Moving
Hydraulic
Vertical Travel
Servo Motor
Control
PLC Automatic Control Grinding
Grinding Wheel Size
200X20X31.75mm
OEM
Available
Transport Package
Wooden Pallet
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
2500.000kg
Product Description
SGA2050AHD Magnetic Chuck Surface Grinding Machine For Metal| Model | Unit | SGA2050AH | SGA2050AHR | SGA2050AHD |
| Table size | mm | 200*508 | 200*508 | 200*508 |
| Magnetic chuck size | mm | 200*460 | 200*460 | 200*460 |
| Max.distance from spindle center to table | mm | 450 | 450 | 450 |
| Table cross travel | mm | 240 | 240 | 240 |
| Table longitudinal travel | mm | 560 | 560 | 560 |
| Max.loading capacity (include chuck) | kg | 180 | 180 | 180 |
| Speed of table longitudinal move | m/min | 5~25 | 5~25 | 5~25 |
| Cross motion | ||||
| intermittent feed rate | mm/t | 0.1~8 | 0.1~8 | 0.1~8 |
| rapid speed | mm/min | 990 | 990 | 990 |
| feed of handwheel | mm/div | 0.02 | 0.02 | 0.02 |
| vertical motion | ||||
| auto down feed rate | mm/t | - | - | 0.005~0.5 |
| rapid down speed | mm/min | - | 650 | 480 |
| feed of handwheel | mm/div | 0.005 | 0.005 | 0.005 |
| spindle rotating speed | r/min | 2850 (50HZ) / 3450 (60HZ) | ||
| grind wheel size | mm | 200*20*31.75 | ||
| spindle motor power | kw | 2.2 | ||
| floor space (L*W*H) | mm | 2300*1600*1675 | ||
| Gross weight | kg | 1650 | ||
| Packing size (L*W*H) | mm | 2000*2100*2150 | ||
Standard accessories:
PLC automatic grinding controller ,
Standard grinding wheel,
Grinding wheel flange, Wheel extractor,
Working lamp, Balancing arbor,
Electric magnetic plate 250x500mm,
Wheel dresser stand, coolant tank,
Leveling wedge and bolt, Tools & Tool box
Optional accessories:
Dust exhaust apparatus
Balance stand
parallel dresser
2-axis digital readout
closed guard of worktable
closed guard of oil tank
magnetic separator
magnetic separator & paper filter
Luxury splash board
Closed wooden case packaging
