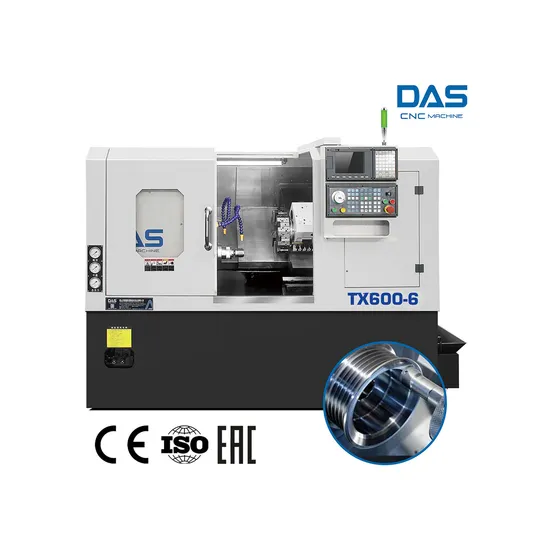

Das 3-Axis CNC Turning Center with Driven Tool Turret Vdi30/Bmt45 Slant Bed Lathe
| US$37,590.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TX600-6
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001, Eac
Condition
New
Max. Swing Diameter
520
Max. Machining Diameter
450
Max. Cutting Length
450
Spindle Nose
A2-5
Transport Package
Plywood
Specification
2800*1550*1800
Trademark
DAS
Origin
China
HS Code
845811
Production Capacity
100/Month
Packaging & Delivery
Package Size
3000.00cm * 1750.00cm * 2200.00cm
Package Gross Weight
4000.000kg
Product Description
Product Description
| Condition: | New |
| Type: | Turret Lathe With Tailstock |
| CNC or Not: | CNC |
| Automatic Grade: | Automatic |
| Control system: | TaiWan Syntec |
| Tailstock: | YES |
| Place of Origin: | China (Mainland) |
| Brand Name: | DAS |
| Model Number: | TX600-6 |
| Max. swing diameter(mm): | 520 |
| Center Height of the turret(mm): | 80 |
| Max. turning diameter(mm): | 450 |
| Max cutting length (mm): | 450 |
| Spindle nose(mm): | A2-5(6 inch) |
| Spindle bore(mm): | Φ56 |
| Max. pass bar diameter(mm): | Φ45 |
| Spindle motor power(kw): | 7.5 |
| Spindle speed (r/min): | 0-4500 |
| X/Z axis moving speed(m/min): | X:26/Z:26 |
| X/Z axis travel(mm): | 260/430 |
| Tool installation: | BMT45 12 station turret |
| Square tool holder(mm): | 25*25 |
| Round tool holder(mm): | Φ32 |
| Tail-stock travel(mm): | 360 |
| Machine power(kw): | 16.3 |
| Net weight(kg): | 3800 |
| Pump motor power (kw): | 0.75 |
| Dimension(L*W*H)(mm): | 2800*1550*1800 |
Company Profile
FAQ
A:How can I choose the most suitable machines ?
B: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
A: What's your main products of your company?
B: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
A: Where is our factory located? How can I visit there?
B: Our factory is located in No.4-7 Xingye 3rd Road,Guangdong Industry Park,Chencun Town,Shunde District,Foshan City,Guangdong,China You are warmly welcomed to visit us.
A. What is your trade terms?
B: FOB, CFR and CIF all acceptable.
A: What's the Payment Terms ?
B : T/T ,30% initial payment when order ,70% balance payment before shipment
A: What's the MOQ?
B: 1 set .(Only some low cost machines will be more than 1 set )
