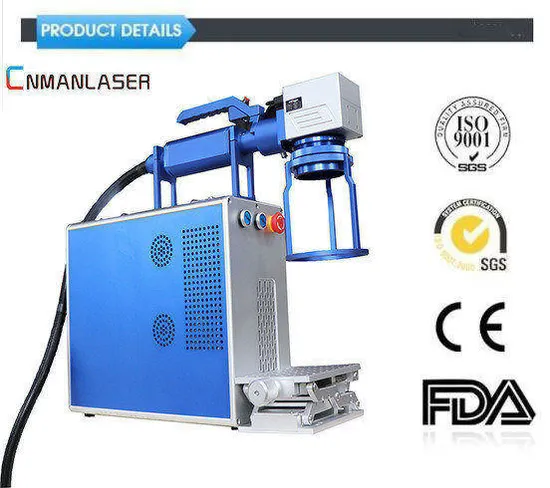

30W Handheld Vin Number Portable Laser Marking on Stainless Steel

Product Description

30W Handheld Vin Number Portable Laser Marking on Stainless Steel
(Model:MAN-30)
1.Germany Made Fiber Laser Sources>> A Wide Selectivity of Operating Wavelengths, Ultra-Low Amplitude Noise, High Stability and Ultra-Long Lifetime
2. Digital Galvanometer Laser Scanning Head with Fast Marking Speed>>Fast Response Ability <0.7ms, High Speed Marking and High Precision.
3. Focus Mirror>> Singapore famous "Wavelength" brand, Fast speed, high transparent rate
4. Control System>> EZ-CAD control system with stable performance and high reliability. More than 10,000 sets of equipment are using EZ-CAD control card, shield-utilizing parts of complex functions, ensuring higher stability.
5. Red Light Pointer>>Adopt red light pointer to show the laser path since laser beam is in-visible.
6. 3D Working Table>> Made up by Precision Alloy and Imported Precise Beeline Device, can be lifting and shifting from left to right. Easy to adjust the laser focus distance.
7. Laser Power Supply>> Adopt Taiwan Famous brand, Stable performance, long life span.
8. Portable Handle>>Easy to held the machine by hand.
9. Emergency Stop>> Press it when meets error, the machine will stop working immediately to avoid losses.
10. Key Switch>> Using key swith to control the power of the machine.
11. Main Switch>> It is designed as a easy button, safe and efficient.
Used in garment accessories, medicine packaging, wine packaging, building ceramics, beverage packaging, fabric cutting, rubber products, shell nameplate, craft gifts, electronic components, leather and other industries. It can carve metal and many kinds of non-metallic materials. It is more suitable for processing products with high precision and precision.
Applied to electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware products, tool accessories, precision instruments, glasses, clocks, jewelry, automotive accessories, plastic keys, building materials, PVC pipes, medical devices and other industries.
Include: ordinary metals and alloys (all metals such as iron, copper, aluminium, magnesium and zinc), rare metals and alloys (gold, silver, titanium), metal oxides (all kinds of metal oxides are acceptable), special surface treatment (Phosphating, aluminium anodizing, electroplating surface), ABS materials (household appliances, daily necessities), inks (light transmission keys, printing products), epoxy. Resin (encapsulation and insulation of electronic components).

Model	MAN-30
Laser Type	hand held Laser Marker
Laser Wavelength	1064um
Marking Area	110×110mm / or Customized
Marking Speed	250 Characters / Second
Minimal Character Size	0.25mm
Minimal Line Width	0.015mm
Power Supply	380V / 50Hz
Cooling Method	Air Cooling
Repetition Rate	0~50KHz
Bitmap Format	BMP, JPG, PNG, TIF, PCX, TGA, ICO, PNG, GIF, PLT, etc.,
Power Consumption	0.5 kw

1) Free Training by VCD:We will supply the machine with <Training VCD> , <User's Manual> and <Instruction Book> in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting.(Recommend)
2) Free Training Factory:You can send operator to laser marker factory for free training. Laser marker will offer professional guide for free.It is direct and effective face-to-face training.Here we have well-assembled equipments, all sorts of tools and testing facility.
Training Time:2-3 days (Recommend)
3) Our engineer can do a door-to-door instruction training service at your local site.We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch.It's better to arrange a translator for both of our engineers during the training period.
Quality Guarantee and After-sales Services
1)The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.Except the damage artificially and laser krypton lamp, we are responsible for offering the fittings free of charge during the guarantee period.While user is kindly requested to send the damaged fittings to us by courier with your charge before we send back the alternative fitting parts.After the guarantee of quality period, the parts required repairing or change, if any, shall be reasonable charged.
2)We will give technical guide by email, fax and telephone when user meets some problems on installation, operation, adjusting, maintaining.
3)We offer technical supporting to ensure safety using & maintenance for user:
Operation manual for installation, adjusting, operation, maintaining;
Professional marking software;
