Factory Price Plastic PVC HDPE PP UPVC CPVC PPR PE Water Drainage Pipe Extruder Agricultural Drip Irrigation Hose Tube Corrugated Pipes Extrusion Making Machine

Product Description

Product Introduction
Factory Price Plastic PVC HDPE PP UPVC CPVC PPR PE Water Drainage Pipe Extruder Agricultural Drip Irrigation Hose Tube Corrugated pipes Extrusion Making Machine
General introduction:
This Plastic Pipe extrusion Machine is mainly used to produce agricultural/water supply/drainage pipes, architectural water supply/drainage pipes, cable laying pipes etc. This pipe extrusion line adopts advanced design concept to ensure the efficient extrusion of PVC or PE powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.

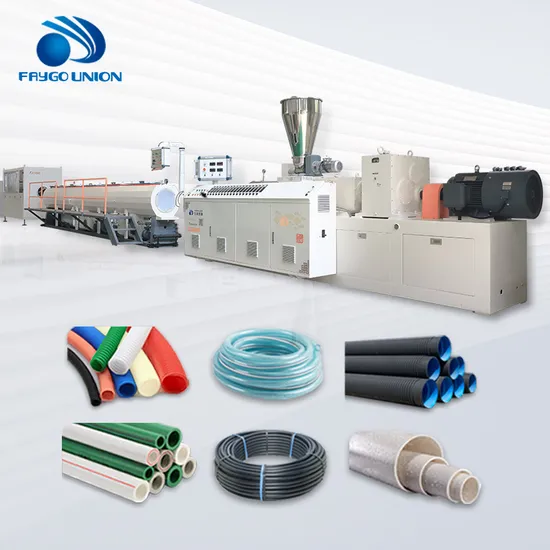

Plastic pipe making machine production line is consist of SJZ series conical twin screw extruder, mould, vacuum cooling tank, spray cooling tank(for big size pipe), haul-off machine, cutting machine, stacker, etc. It also need some auxiliary machinery. For example, hot&cooling mixer, crusher, milling machine, belling machine, etc. The hot&cooling mixer is necessary, others is optional
Product Parameters

Model/data	Pipe diameter	Extruder model	Speed	Max capacity
FP63	16-63mm	LSZ51/105	1-10m/min	120kg/h
FP160	75-200mm	LSZ65/132	1.5-5m/min	260kg/h
FP400	200-400mm	LSZ80/156	0.5-1.5m/min	400kg/h
FP630	400-630mm	LSZ92/188	0.1-0.8m/min	650kg/h

Product Details


Conical double-screw extruder
Feeding system: Motor Power: 1.5kw ;Force Feeder Motor Timing:ABB inverter
Screw : Diameter of screw: 92/188mm ; Material of screw: 38CrMoAl
Barrel: Material: 38CrMoAlA; Heating mode: Cast aluminum + stainless steel covering ; Method of cooling: air blow


PVC pipe extrusion mould
Material: Made by 40Cr. Inner surface polished
Pipe Thickness Control:With 2 different pipe wall thickness
Calibration mould material:Wearable tin bronze ZQSn5-2-5
Vacuum calibration tank
Dimensions: Length: 4000mm
Vacuum pump: Hydroseal vacuum pump Power: 2.2kw X2
Water pump: Power: 3KW X 2
Tank material: Stainless steel, Limit switch; Electric cabinet with water-proof protection
Pipe Haul-off Machines
Haul-off length:1000mm
Haul-off Motor Power:0.55KW×4sets
Haul-off Speed :1.1KW×2sets Inverter
Haul-off Speed: 0.5~12 meters/min
Pipe Cutter
Cutting pipe diameter scope: 16~40mm
Saw blade Diameter: 230mm
Cutter motor power:0.75KW×2 sets
Blade Bracket Longitudinal Moving Distance: 500mm
Pipe Stacker
The length of stacker: 2 meters
Support-Board:0.8mm stainless steel board
Working Method: pneumatic, with stroke switch soleplate, to provide the fixed length cutting signal
Equipment list of PVC pipe extrusion line

Compulsory devices
1		Material charge		1 set
2		Conical twin screw extruder SJ-65/132, 80/156, 92/188		1 set
3		Pipe die head		16-800mm, 1 set or several sets
4		Vacuum calibrating tank		1 set or several sets
5		Water spraying cooling tank		1 set or several sets
6		2-3-4-6-8-10-12 caterpillars hauling off machine		1 set
7		Saw cutting machine or planetary cutting machine		1 set
8		Pipe stacker-6000mm length		1 set
9		Electrical cabinet(ABB, Omron, RKC etc)		1 set
10		Spare parts		1 set
Optional Devices
1		High speed hot and cold mixer		1 set
2		Plastic crusher		1 set
3		Plastic pulverizer		1 set
4		Industrial water chiller		1 set
5		Air compressor		1 set
6		Thermocontroller for die head		1 set
7		Ink jet printer		1 set
Payment, delivery and after sales services
1	Payment terms		30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable
2	Delivery time		60 days after receipt of prepayment
3	Packing method		Wooden cases/pallets with stretching films
4	Guaranteed time		18 months for mechanical parts, 12 months for electrical parts
5	After sale service		Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable

2024 New Technology--- OPVC Pipe Production line
The PVC-O pipe making machine utilizes the latest technology to produce plastic pipes. Featuring special biaxial stretching technology, this machine significantly reduces material costs for pipe production by over 70%. As a result, it has gained increasing popularity in the market.
Performance Test: Unscathed after Car run over
