High-Efficiency Wet Tube Ball Mill for Mineral Grinding

Product Description

Product Description
Introducing the premier solution for all your grinding needs, the Wet Tube Ball Mill Series by Xuzhou Churun Heavy Machinery Manufacturing Co., Ltd. Engineered to perfection, this ball mill is designed to transform crushed materials into incredibly fine powder. It finds its main applications in the industrial and mining sectors, serving enterprises dealing with a variety of ores including gold, copper, lead, manganese, iron, and more. Its versatility extends to metallurgy, building materials, chemical industries, and any other grindable materials. Whether you're engaging in wet or dry milling, open circuit grinding, or circle grinding with a power feeder, this machine adapts seamlessly. Experience the advantage of its rational design, showcasing remarkable adaptability to various raw materials, swift operation, impressive crushing ratio, and substantial capacity, all complemented by its user-friendly operation.
Wet grinding ball mill working principle:
At the heart of this exceptional machine is its working principle, where the electric motor powers the cylinder rotation through a reducer. Inside, broken ore and steel balls are elevated by the lining board, reaching a specific height due to rotational friction and eccentric forces. As gravity takes over, the ores descend, undergoing meticulous crushing and grinding. The resultant finely crushed ores are discharged via the machine's efficient discharging part. Post-discharge, the spiral classifier steps in to sort the ores, directing coarser sand back to the ball mill for further refinement. Thanks to the joint feeding machine, materials are fed into the ball mill continuously and evenly, ensuring a seamless grinding process. This efficient system allows the Chinaware ball mill to operate around the clock, tirelessly performing its powder grinding duties 24 hours a day.
Characteristics
1. Robust Structure: Equipped with a large ring gear, substantial side cover, and oversized bearings, this innovative design significantly extends its longevity. By incorporating high-frequency quenching heat treatment on the modulated surfaces, both the gear hub and sprocket are fortified for enhanced durability and performance.
2. Energy Efficiency: Transitioning from slide bearings to ball bearings substantially minimizes friction, which simplifies the startup process and slashes energy consumption by 10-15% compared to conventional ball mills.
3. Amplified Processing Capacity: Featuring a discharge disc and grate plate akin to the standard mill, this series boosts processing capacity by over 20% relative to traditional energy-saving conical ball mills.
4. Optimized Discharge Efficiency: With a low mud surface at the discharge port, rapid mud passage is ensured, thereby mitigating excessive ore grinding and enhancing operational efficiency.
5. Versatile Ball Loading: Capable of accommodating both large and small balls, the design ensures that smaller balls remain within the system, fostering favorable working conditions and superior grinding performance.
6. Simplified Installation: Outfitted with a support frame, this equipment is streamlined for effortless client installation at plant sites, facilitating a hassle-free setup.
7. Advanced Electronic Control: The electronic control system integrates protective measures against motor overcurrent, power interruptions, and imbalance in the three-phase power supply, ensuring seamless and 'worry-free' ball mill operation.
Detailed Photos

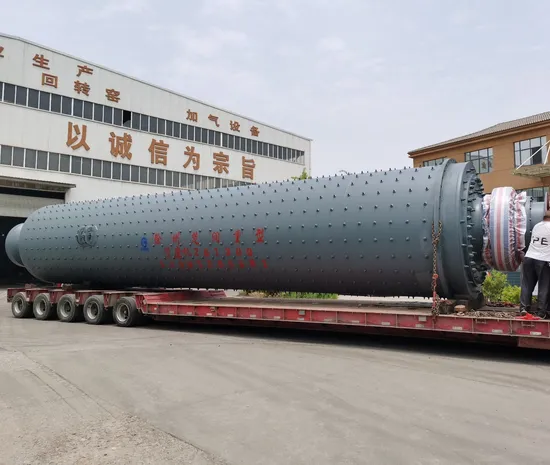

Ball Mill: A robust and efficient grinding solution designed to meet the demanding needs of various mineral processing applications. Structure: Featuring a comprehensive feeding system, an efficient discharging system, and a state-of-the-art transmission system. This includes a speed reducer, small transmission gear, high-performance electrical machinery, and precision electric control, among other advanced components.

Product Parameters
With an unwavering commitment to excellence, our products guarantee top-tier quality, ensuring that non-conforming goods never reach the market. Thanks to this steadfast dedication, Xuzhou Churun Heavy Machinery Manufacturing Co., Ltd. has swiftly captured both domestic and international markets, celebrated for the exceptional quality and dependable performance of the Wet Tube Ball Mill Series. Trust in us means trusting in reliability.

Drum Size	capacity(t/h)	rotation rate(rpm)	Ball Weigh(t)	kind of drive	Reduce	Power(Kw)
Φ1.5*5.7	33-6	27	11	margin	ZD40	130
Φ1.5*6.4	4-7	27	12	margin	ZD40	130
Φ1.83*7	8-13	23.9	21	margin	ZD60	245
Φ2.2*7	13-18	21.4	33	margin	ZD60	380
Φ2.2*7.5	14-19	21.4	35	margin	ZD60	380
Φ2.2*10	15-20	21.4	45	margin	ZD80	475
Φ2.4*8	18-27	20.4	41	margin	ZD80	475
Φ2.4*9	19-29	20.4	42	margin	ZD80	570
Φ2.4*10	20-32	20.4	52	margin	ZD80	630
Φ2.4*11	21-34	20.4	60	margin	ZD80	630
Φ2.4*13	23-36	20.4	65	margin	MBY710	800
Φ2.6*10	28-38	19.7	70	margin	MBY710	800
Φ2.6*13	30-40	19.7	78	margin	MBY800	1000
Φ2.8*13	32-42	19.7	78	margin	MBY800	1250
Φ3.0*9	32-42	18.14	83	margin	MBY710	1000
Φ3.0*11	35-48	18.14	100	margin	MBY800	1250
Φ3.0*13	36-50	18.14	102	margin	MBY900	1400
Φ3.2*4.5	30-50	18.7	45	margin	MBY710	800
Φ3.2*11	38-52	17.76	110	margin	JDX100	1600
Φ3.2*13	45-60	17.76	120	margin	JDX100	1600
Φ3.5*13	65-90	17.1	165	margin	MBY1100	2000
Φ3.6*4.5	90-136	17.8	58	margin	MBY800	1000
Φ3.6*9	20-45	16.9	70	margin	Synchronous motor:1600
Φ3.8*13	70-100	16.8	180	margin	DBS280	2500
Φ4.2*13	130-150	15.9	231	margin	DBS280	3550

Packaging & Shipping
Typically, our state-of-the-art machines are meticulously disassembled for transport, ensuring optimum protection and integrity during delivery. We employ a variety of advanced packing methods, tailored to your needs: from nude packing for robust items, to secure bundle packing, and eco-friendly grass rope packing. For additional protection, we offer water-resistant packing, and for the ultimate in safeguarding, our premium wooden pallets, sturdy wooden boxes, or versatile carton box packing are available. Our Advantages
Xuzhou Churun Heavy Machinery Manufacturing Co., Ltd. spans a vast 5000 square meters, offering expansive production capacity and state-of-the-art facilities.
Churun stands at the forefront of customer-centric innovation, dedicated to crafting tailored, comprehensive plant equipment configuration solutions. With nearly 300 meticulously engineered production lines serving the global cement, chemical, lithium mica, taconite, metallurgy, and solid waste disposal industries, our prowess speaks volumes. Our technical team, comprising seasoned industry experts, boasts deep design capabilities and a wealth of experience. This has translated into remarkable market achievements, earning us the unwavering trust and accolades of our valued clients. As we look to the future, Churun Heavy Industry remains committed to its core values of professionalism, integrity, and innovation, consistently evolving to deliver efficient, reliable equipment and technical solutions.
The Headquarters of Churun is strategically situated in Xuzhou city, sprawled across approximately 200,000 square meters. Our facility houses over 200 pieces of cutting-edge, large and medium-sized metal processing machinery, including lathes, riveting machines, welding equipment, and assembly lines, ensuring precision and excellence.
Our esteemed products have garnered recognition and trust from both domestic and international customers, boasting successful exports to countries and regions such as Indonesia, Russia, Cambodia, Vietnam, Laos, Africa, Uzbekistan, Romania, and beyond.

After Sales Service
Experience unparalleled service! With our exceptional after-sales support and expert consultation, Xuzhou Churun Heavy Machinery Manufacturing Co., Ltd. is dedicated to exceeding customer expectations. Unlike most, our sales hotline, email, Skype, and MSN are continuously active to ensure your inquiries are resolved swiftly-typically within just 30 minutes.
Pre-sale Services: Enthusiastic Support
Our team is here to craft tailored solutions for you! We offer a strategic prophase plan and meticulous process flow design tailored to your unique requirements, while also manufacturing equipment customized to suit your specific needs.
Sale Services: Attentive Guidance
Our skilled technicians will be dispatched directly to your site, providing expert guidance for installation and adjustment. They will train operators and conduct thorough inspections to ensure everything meets your high standards.

After-sale Services: Unwavering Commitment
Building long-lasting relationships is our mission. We commit to regular follow-up visits to ensure your continued satisfaction and success with our products.
Moreover, we offer a comprehensive one-year warranty to guarantee seamless operation of your machines. With our well-stocked inventory of spare parts, replacements can be delivered promptly to minimize any downtime.
We warmly invite you to visit our company and workshop. At Xuzhou Churun, we are eager to collaborate with you, offering the most suitable products at competitive prices for your needs.
FAQ
1. Why we believe in Xuzhou Churun industries co., ltd:
1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate
2.How long is the delivery time of your product?The delivery time is within 30 working days.3. Payment terms:
A: Accept payment type: T/T, Cash.30% deposit when signed contract. Full payment paid before shipping.4.How long is the product warranty period?Our warranty period is 1 year, excluding wearing parts.5.What's the after sale service of your company?We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.6. Can your company provide wearing parts?We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
