8 Axises Double Spindle Turning Milling Machine Center CNC Lathe Turning Center
| US$100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TMC25S2M2T2Y
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Product Name
Turning Center
Used as
Turning Milling Machine
Another Name
Turning Milling Center
Spindle Spped
30-4000
Mx. Bar Capacity
76
Spindle
Double Spindle
Can Be
CNC Lathe
Axis Number
8
Eight Axis
X1,Y,Z1,X2,Z2,W,C1,C2
Transport Package
Export Packing
Specification
Turning Center with Double Spindle
Trademark
ALLWAY
Origin
China
HS Code
845811
Production Capacity
50 Units/Months
Product Description

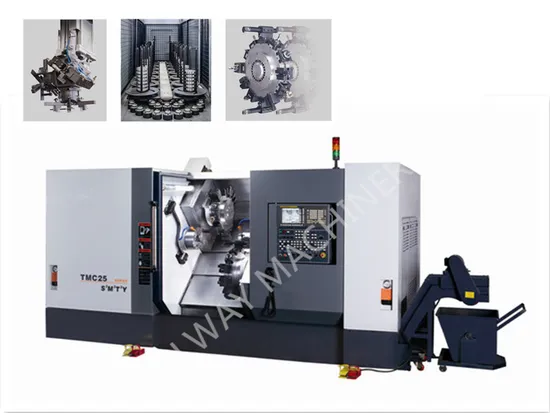

8 axises Double Spindle Turning Milling Machine Center Cnc Lathe Turning CenterTMC25S2M2T2Y Turning Center with Double Spindle Product introduction and function
It use variety of control technologies, included self-developed pneumatic, hydraulic, concealed electric spindle, concealed high-power powered turret, automatic tool measuring and adjusting (Optional), temperature control, collision protection. Combined Turning-Milling process and Intelligent control, also intergrated mechanic, electric, pneumatic and hydraulic.
It has six feeding axis and two C-axis, totally eight axis, X1,Y,Z1,X2,Z2,W,C1,C2, Turning, Milling, Drilling, Boring, Tapping, Reaming can be done in one process. C-axis can be divided into 0.001degree, suit for processing Cam, Spiral flute with complex shape.
| item | unit | TMC25E | TMC25SMTY | TMC25S2M2T2Y | |||
| Max. swing over bed(disc/shaft) | mm | φ700/φ385 | φ800/φ385 | φ360/φ360 | |||
| Max. cutting dia.(disc/shaft) | mm | φ460/φ385 | φ460/φ385 | φ360/φ360 | |||
| Chuck and tailstock(or sub chuck) distance | mm | 105-655 | 85-865 | 20-820 | |||
| Max. cutting length | mm | 540 | 720 | 720 | |||
| Max. bar capacity | mm | φ76 | φ76 | φ76 | |||
| stroke | X1 | mm | 245 | 245 | 245 | ||
| Y | mm | × | ±50 | ±50 | |||
| Z1 | mm | 570 | 800 | 800 | |||
| X2 | mm | × | × | 210 | |||
| Z2 | mm | × | × | 800 | |||
| W(tailstock/sub spindle) | mm | 550 | 780 | 800 | |||
| Rapid traveling | X1/Z1 | m/min | 30 | 30 | 30 | ||
| X2/Z2 | m/min | × | × | 30 | |||
| Y | m/min | × | 10 | 10 | |||
| W | m/min | 15 | 15 | 15 | |||
| guidway | rolling | rolling | rolling | ||||
| ballscrew | X1/X2 | mm | φ32×10 | φ32×10 | φ32×10 | ||
| Y | mm | × | φ32×5 | φ32×5 | |||
| Z1/Z2 | mm | φ40×12 | φ40×12 | φ40×12 | |||
| W | mm | × | φ40×10 | φ40×12 | |||
| spindle | speed | r/min | 30~4000 | 30~4000 | 30~4000 | ||
| Spindle nose | A2-8 | A2-8 | A2-8 | ||||
| Spindle in taper | metric | φ100 | φ100 | φ100 | |||
| Bearing bore | front | mm | φ140 | φ140 | φ140 | ||
| end | mm | φ120 | φ120 | φ120 | |||
| Main motor power | kw | 15/22 | 15/22 | 15/22 | |||
| Chuck size(10″) | mm | φ254 | φ254 | φ254 | |||
| tailstock | Bore taper | morse | MT-5 | MT-5 | MT-5 | ||
| Feeding | hydraulic | servo | servo | ||||
| Turret | Tool number | 12 | 12 | 12 | |||
| Tuning / boring tool | mm | 25/φ40 | 25/φ40 | 25/φ40 | |||
| Position accuracy | ″ | ±10 | ±10 | ±10 | |||
| Reposition accuracy | ″ | ±3 | ±3 | ±3 | |||
| Turret motor power | kw | 5.5/7.5 | 5.5/7.5 | 5.5/7.5 | |||
| Driving tool holder | BMT65 | BMT65 | BMT65 | ||||
| Tool holder speed | r/min | 30~4000 | 30~4000 | 30~4000 | |||
| Machine Position accuracy | mm | ±0.008 | ±0.008 | ±0.008 | |||
| Machine Reposition accuracy | mm | ±0.004 | ±0.004 | ±0.004 | |||
| Weight | kg | 7,000 | 9,000 | 11,000 | |||
| Overall dimension(L×W×H,without chip conveyor) | mm | 3500×2000×1950 | 3850×2250×2400 | 4050×2400×2400 | |||
CONTACT US FOR GETTING MORE INFORMATIONS!
