Biomass Pellet Cooler with Good Cooling Effect

Product Description

Product Description

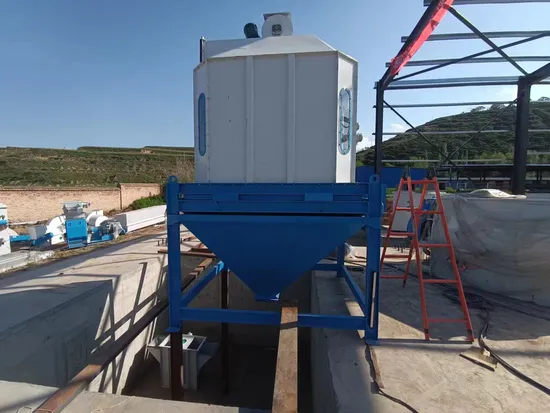

Cooler is mainly used for cooling of pellet feed in the feed pelleting section. It cools the pellet feed coming from pellet mill and with a temperature of 70°C~90°C to a temperature 3°C~5°C slightly higher than ambient temperature, and is capable of lowering to a safety moisture content. The cooled pellets not only improves in hardness but also can prevent from going mouldy, which facilitates the transportation and storage of pellet feed.

Our Advantages
1.Counterflow Cooler use countercurrent cooling principle to cool high temperature and high humidity particles, hot air and hot material contact, cold air and cold material contact, avoid cold air and hot material direct contact to produce sudden cooling resulting in particle surface cracking phenomenon;
2.Increase the cooling volume, extend the material cooling time, greatly improve the cooling effect;
3.The use of air closure feed, eliminate the inlet channeling phenomenon, cooling effect is good;
4.Adjustable conical bulk material mechanism, uniform cloth
5.The top of the cooler is made of stainless steel, strong corrosion resistance, long service life;
6.Slide valve type feed and discharge mechanism, smooth and reliable discharge;
7.Suitable for cooling of any granular material;
8.New cooling equipment integrating the most advanced international cooling technology;
9.After cooling, the particle temperature is not higher than room temperature 3°C~5°C, and the precipitation rate is not less than 3%~3.5%

Product Parameters

Model	SKLN1.5	SKLN2.5	SKLN4	SKLN5	SKLN6	SKLN8
Parameters
Power (kw)	1.1	1.1	2.2	2.2	2.2	3.2
Capacity (t/h)	3	5	8	12	15	20
Cooling time (min)	Not less than 6~10
Feed temperature after cooling	Not 3~5°C higher than ambient temperature

Application
