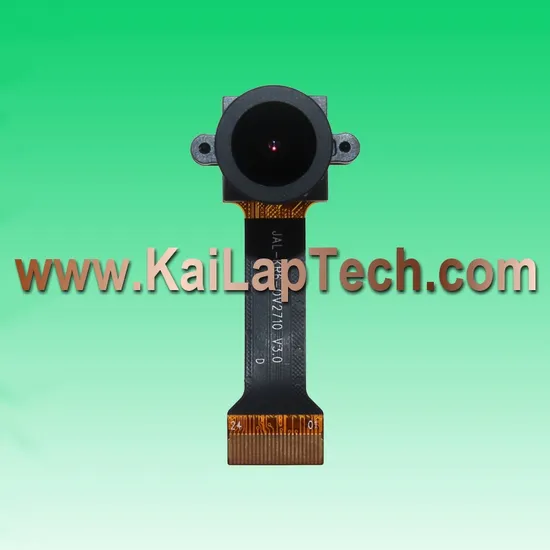

Jal-Kr6-Ov2710 V3.0 2MP Ov2710 Parallele Dvp-Schnittstelle M12 Fester Fokus Kameramodul

Jal-Kr6-Ov2710 V3.0 2MP Ov2710 Parallele Dvp-Schnittstelle M12 Fester Fokus Kameramodul

US$13.00-16.00 100 Pieces (MOQ)

Basic Info.

Model NO.
JAL-KR6-OV2710 V3.0
Specification
47.85 x 22.00 mm
Origin
China
Production Capacity
500000 Pieces

Product Description

2MP OV2710 Parallele DVP-Schnittstelle M12 Fester Fokus Kameramodul
Kameramodul Nr. JAL-KR6-OV2710 V3.0
Kameramodul Nr. JAL-KR6-OV2710 V3.0
Auflösung 2MP
Bildsensor OV2710
Sensorart 1/2.7"
Pixel Größe 3.0 um x 3.0 um
EFL 3.40 mm
F.NO 2.50
Pixel 1920 x 1080
Betrachtungswinkel 120.0°(DFOV) 85.0°(HFOV) 60.0°(VFOV)
Linsenabmessungen 13.70 x 13.70 x 22.52 mm
Modulgröße 47.85 x 22.00 mm
Modultyp Fester Fokus
Schnittstelle DVP-Parallel
Autofokus-VCM-Treiber-IC Keiner
Linsenmodell KLT-LENS-MJ7007B
Linsentyp 650 nm IR-Schnitt
Betriebstemperatur -30°C to +85°C
Gegenstecker FH12A-24S-0.5SH
