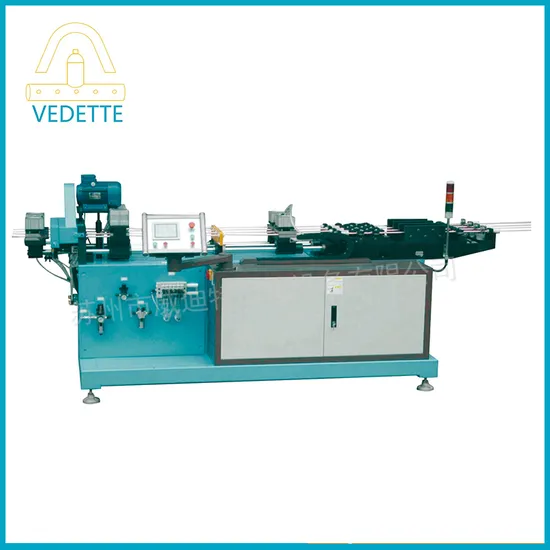

Pneumatic Automatic Copper Chipless Tube Cutting Machine

Product Description

copper coil pipe chipless cutting machine
PRODUCT NAME:
This machine is used to cut long straight copper pipe into short pipes.
PRODUCT INTRODUCTION:
This machine is used to cut long copper coil into short straight pipes.
Product Features:
Features:
1.Servo Continuously feeding ,accurate position, stable feeding,suitable for cutting long tube
2 .100% automation,and easy to adjustment.
3.Can cut pipe stably without deformation
4. HIgh efficiency,can cut 6 pipe at same time

Pipe Material	TP1/2 or Fairly standard product
External diameter of copper pipe	φ6.0mm-20mm
Thickness of pipe	0.3mm-1.5mm
External diameter of coil	φ1000mm-1250mm
Coil centre hole diameter	φ130
Coils distance	250-340
Coil weight	≤280kg
Straightness tolerance	≤2‰
Finished Surface condition	No obvious pull, row, pressure scar
Non-Round deformation	≤3%
Tube diameter reduced rate	f<20% (actual wall thickness - wall thickness)/wall thickness
production efficiency	8 times/min (L=1000)

PRODUCT AND PIPE PHOTOES
Factroy Introduction: Established in 2011, Suzhou VEDETTE Industrial Equipment Co., Ltd. is a professional factory producing metal pipe forming machine , include CNC copper and stainless steell pipe punching machine, pipe spinning machine, punching flanging machine, pipe end processing machine, non¬chip open feeder, bending machine , as well as copper and stainless steel fitting.
Now VEDETTE owns factory area about 2000 square meters and 30 workers, includes professional staffs specializing in mechanical and electrical integration control, computer software, three-dimensional structure design and digit control technology.t has strong technical ability in design, development, production, sales. Besides, it also has good production capacity and prefect after-sales service system.
"VEDETTE" 's main products includes metal pipe punching machines, pipe spinning machines, pipe end forming machines,CNC automatic pipe cutting machines , pipe bending machines etc. Since it established , it has cooperated with many domestic customers such as CRRC , DUNAN,SANHUA,GREE, LUVATA,SUNRAIN and expand overseas market in South African, Germany,Indonesia, Vietnam and Korea.Through many years development,we have improved quality and technology greatly. Also , we have developed a series of different models of product,win high reputation.we can provide different kind of machines according to customer need,provide pre-sale and after-sale service,not only provide good quality product,but also provide technical training to customers. And provide professional technical for maintenance and after-sales service, as well as product software upgrades free of charge.
Innovation and cooperation are the long-term policy of "VEDETTE", Based on idea " quality first, service first , price second",,VEDETTE will create the best products and provide the most satisfactory services,.we sincerely hope to become your faithful friends and partners!
Packing and Delivery:

Our machine is delivered within 15-20 days after the deposit confirmed.

The machine is usually packed in a professional exported case by shipping way.

Our services:

Before-sales service:

1,We will help our customer confirm the right model according to the offered pipe inforamtion.

2,You are very welcome to visit our factory to see our machine how to work before you place an order with us.

After-sales service:

1,Free installation,trial start and adjustment,training.

2,We guarantee machine quality for one year.During this year,if spare parts of the machine we damaged,we can send the components to the customer by DHL,TNT for free.

3,If customer have any question about operation when using our machine,we will reply you by email/telephone/other online chat tool within 24 hours.
