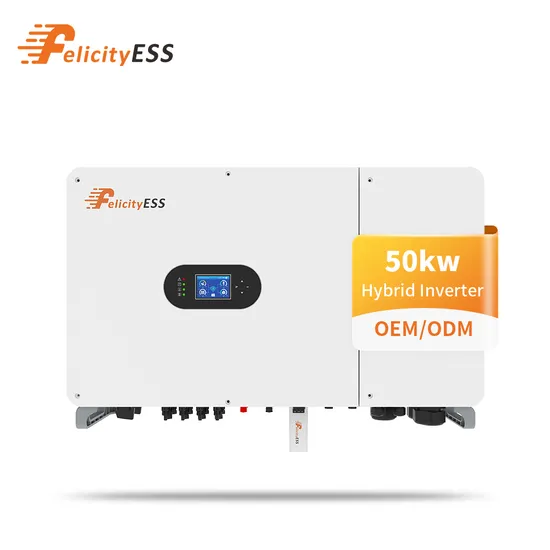

Felicityess 50kw High Voltage DC/AC Inverter Three Phase Hybrid for Commercial Use

Product Description

FelicityESS 50kW High Voltage DC/AC Inverter Three Phase Hybrid for Commercial Use
BECOME FELICITY NEWENERGY DEALER
0 Inventory, 0 Cost Investment, 0 Risk
FelicityESS- Top 100 Global Energy Storage Product Brands
1.4 Billion Annual Output Value
100+ Global Patented Technologies
30+ Global Branches
100+ Senior Experts and Professional Technical Talents in New Energy
Product Description
Product Parameters

Model	T-REX-50KHP3G01
Battery Input Data
Battery Voltage Range	160~800Vd.c.
Max.Charging Current	50+50(A)
Max.Discharging Current	50+50(A)
Battery type	LFP(LiFePO4)
Numberof battery input	2
PV String Input Data
Max.DC Input Power	65 kW
Max.DC Input Voltage	1000Vd.c
Min.DC Input Voltage	150Vd.c.
Start-up Voltage	250Vd.c
Rated DCInput Voltage	600vd.c.
MPpT Range	200~850Vd.c
FullLoad DCvoltage Range	450~850Vd.c.
pVInput Current	36+36+36+36(A)
Max.PV Isc	55+55+55+55(A)
No.of MPP Trackers	4
No.of Strings perMPP Tracker	2
AC Output Data
Rated AC Output Power	50 kW
Max.AC Output Power	55 kW
ACOutput Rated Current	72.5A
Max.AC Current	79.7A
Rated AC Voltage	220/380,230/400Vac(-20%~+15%)
AC Wiring Mode	3W+N+PE/3W+PE
Rated AC Frequency	50/60Hz(45~55Hz/55~65Hz)
THDI	<3%(At Rated Power)
Power Factor	0.8(leading)to0.8(lagging)
Efficiency
Max.efficiency	97.6%
Euro efficiency	97.0%
MPPT efficiency	99.9%
Protection
pvInput Lightning Protection,	Integrated
pv string Input Reverse Polarity Protection,
Battery Input Lightning Protection,
Battery Input Reverse Polarity Protection,
Insulation ResistorDetection
Residual Current Monitoring Unit,
Output OverCurrent Protection,
Output Shorted Protection,
Output OverVoltage Protection,
Anti-islanding Protection,
Acoutput Lightning Protectiono
Certification and Standards
Grid Regulation	NRS097-2-1,VDE4105,EN50549-1,AS 4777.2,GB/T34120,GB/T34133,GB/T34129
Safety EMC/Standard	IEC/EN61000-6-1/2/3/4,IEC/EN62109-1,IEC/EN62109-2
General Data
Operating temperature range	-25 to 60°C(>50Cderating)
Protection degree	P65
Humidity	0~95%(Nocondensation)
Cooling	Smart cooling
Altitude	3000m(>2000mderating)
Communication with BMS	RS485,CAN
Monitormodule	WiFi/GPRS
Installation Style	Wall-mounted
Warranty[1]	10 years
Net Weight(KG)	85.6KG
Gross Weight(KG)	98.4KG
Product Dimension(MM)	940*340*582MM
Package Dimension(MM)	463*770*1110MM

Certifications
Company Profile
FelicityESS New Energy Technologies is a leading, inverter manufacturer and energy system integrator with17 years of experience. With a 40,000 square meter facility and more than 1,000 employees, the company hasmore than 30 offices around. Our prod!sfotoucts include home energy storage batteries, all-in-svstems andsolar inverters.Our products offer flexibleenergy conversion, eficient storage solutions forhomes ana businesses
Our Factory
Packaging & Shipping
Our Exhibitions

FAQ
Q1: How to install and use the solar inverter?
A1: We provide an English manual and videos. All videos covering every step of machine disassembly, assembly, and operation will be sent to our customers.
Q2: What if I don't have export experience ?
A2: We have over 30 overseas offices and warehouses that can ship items to you by sea, air, or express delivery. We will help you choose the most suitable shipping service.
Q3: How is your technical support?
A3: We have over 30 offices overseas with professional technical engineers and sales teams stationed year-round. They can address your pre-sales and post-sales issues. If any problem arises after delivery, we can send technical engineers to assist you. You can also contact us online via WhatsApp, Skype, WeChat, or email.
Q4: Can you customize the solar inverter for us?
A4: Of course. We offer customization for product specifications, brand name, machine color, and unique design patterns.
Q5: How can I become your agent?
A5: Contact us, and we will provide details about our dealer program.
Q6: What is the warranty for the inverter?
A6: 10 years.
