Customized Wilkinson Power Divider 698-2700MHz 2 Way Power Splitter N Female for Radio System

Product Description

Product Discription

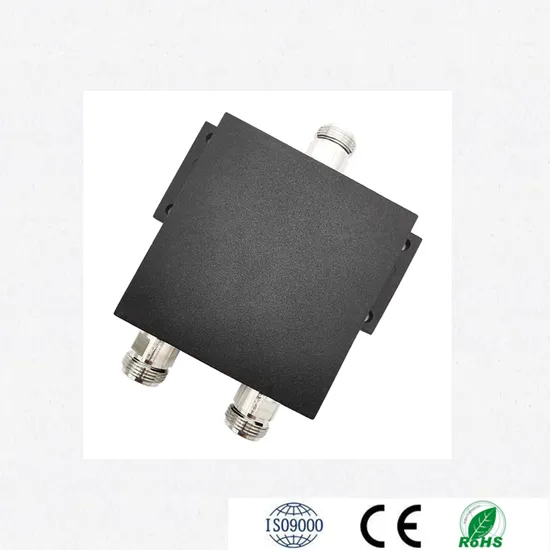

50W 2 Way Power Splitter(698-2700MHz, IP67, N Female)
The wilkinson power splitter also called Wilkinson Power Divider,
uses quarter wave transformers to split the input signal to provide two output signals that are in phase with each other. The resistor between the two output ports enables the two outputs to matched while also providing isolation.
Topwave Telecom Model TPW-2WPS-727-NF refers to 698-2700MHz 2/3/4 way power splitter with N type connection. Compared with cavity splitter, whose high isolation and small dimensions are highly accepted in cabinet system and integrated system.

Features & Benefits

·Wide Frequency Band Covering 698-2700MHz
·Low Insertion Loss
·Low VSWR
·High Isolation
·Indoor & Outdoor Using IP67
·Available with Type N, 7/16DIN or 4.3/10 Connectors

Electrical & Mechanical Specifications

Model No.	TPW-2WPS-727-NF
Split Channel	2-way
Split Loss(dB)	3.0
Insertion Loss(dB)	≤0.5
Isolation(dB)	≥20
Freq(MHz)	698-2700MHz
VSWR	≤1.30
Power Rating(W)	50W (average Per Port)
Impedance	50 ohm
Connector	N Female
Color	Black
Operating Temperature(ºC)	-30~+65
Weight(kg)	0.25(approx)

Recommended Products

About us

Hefei Topwave Telecom Co.,Ltd, is a worldwide leading provider of comprehensive RF passive equipment and high-performance wireless infrastructure solutions focused on innovation and differentiation at the edge of wireless telecommunication networks.
Topwave Telecom established in 2007, located in Hefei National High-tech Zone. With the decades of development, we have our own R&D center and manufacturer center.We are OEM and ODM service provider and network operators to improve performance and reduce operating expenses via comprehensive set of products and solutions. Topwave has more than 10 years experience to export goods to all over the world, the RF passive devices like power splitter, coupler, filter, multiband combiner etc, which widely used for DAS, IBS, BTS and BDA.
Topwave persist to provide excellent products and service for every client as always. Our mission is to make the world connected, make the world small, and make the world smart. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.

Main Products

Application

Testing Equipment

Packing Details

FAQ

Q: Can I get smaples for validation test?
A: Let's talk, some samples are free but shipping charge should be on your account.
Q: What is your MOQ?
A: We don't have MOQ limit.
Q: What is your payment terms?
A: We accept Western Union, T/T, Paypal and so on.
Q: What is your delievry time?
A: Normally around 2 weeks, TBD for massive quantity or customized products.
