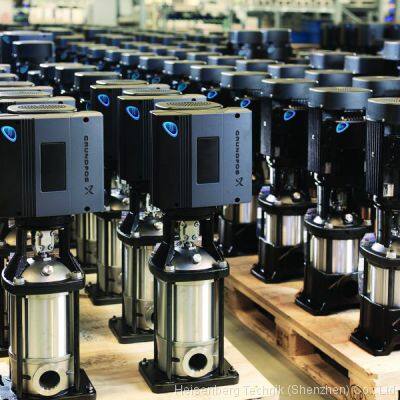

Grundfos CR5-20 A-FGJ-A-E-HQQE 3x400D 50HZ Product ID: 96513389

Grundfos CR5-20 A-FGJ-A-E-HQQE 3x400D 50HZ Product ID: 96513389

Product Details

Product Details

Product Description

Product Description
Grundfos CR5-20 A-FGJ-A-E-HQQE 3x400D 50HZ
Electrical data
Motor standardIEC
Motor type100LC
IE Efficiency classIE3
Rated power - P23 kW
Power (P2) required by pump3 kW
Mains frequency50 Hz
Rated voltage3 x 380-415D V
Rated current6.3 A
Starting current840-920 %
Cos phi - power factor0.87-0.82
Rated speed2900-2920 rpm
EfficiencyIE3 87,1%
Motor efficiency at full load87.1 %
Motor efficiency at 3/4 load88.0 %
Motor efficiency at 1/2 load87.7 %
Number of poles2
Enclosure class (IEC 34-5)55 Dust/Jetting
Insulation class (IEC 85)F
Built-in motor protectionPTC
Motor No85U15510

Controls
Frequency converterNONE

Others
Minimum efficiency index, MEI ≥0.57
Net weight53.5 kg
Gross weight58.8 kg
Shipping volume0.133 m³
Danish VVS No.385902120

Installation
t max amb60 °C
Maximum operating pressure25 bar
Max pressure at stated temp25 bar / 120 °C

25 bar / -20 °C
Type of connectionDIN / ANSI / JIS
Size of inlet connectionDN 25/32
Size of outlet connectionDN 25/32
Pressure rating for connectionPN 25
Flange rating inlet250 lb
Flange size for motorFT130
Connect codeFGJ
