3.6V 19000mAh High Capacity Primary Lithium Battery Er34615h for Electric Meters
Basic Info.
Model NO.
ER34615H
Application
Video Store and Bookstore, Warehouse, Shopping Arcade, Supermarket, Garment Store
Detection Signal
Intelligence System
Certification
CE, RoHS
Frequency
8.2MHz
Detect Distance
0.9-1.2m
Dimension
Od14.5*25.2mm
Weight
10g
Nomal Capacity
1200mAh
Max. Continuous Discharge Current
20mA
Cut-off Voltage
2.0V
Transport Package
Carton
Specification
D
Trademark
SUNJ
Origin
China
HS Code
85065000
Production Capacity
100000
Packaging & Delivery
Package Size
35.00cm * 28.00cm * 35.00cm
Package Gross Weight
15.000kg
Product Description
Product Description

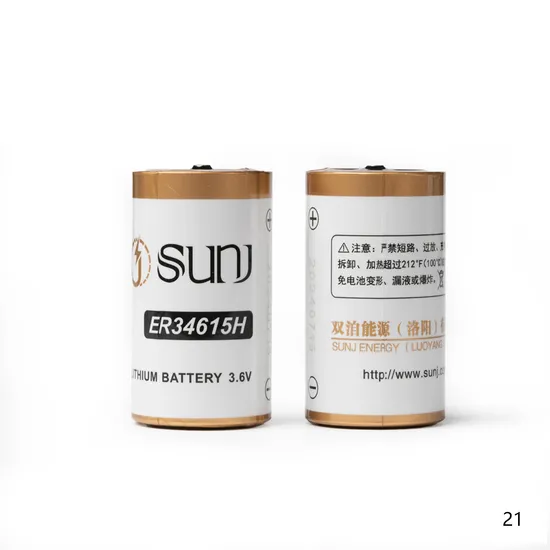

3.6V 19000mAh High Capacity primary Lithium Battery Er34615h for Electric Meters
Product features : High cell voltage : open-circuit voltage of 3.67V and an operating voltage of 3.60V
Wide operating temperature range : from -55oC to +85oC.
High energy density : up to 650Wh/kg and 1280Wh/L.
Low self-discharge rate: less than 1% per year at 20oC
Long life span and superior shelf life : storage periods and achieve a service life of 10 to 20 years.
Excellent safety : inspected by Laboratories, and meet UN transportation test requirements.
Detailed Photos
Product Parameters
Specification
Lithium thionyl chloride battery Li-SOCL2
| Subject | Features | Remark |
| Specification | ER34615H | Carbon - clad, stainless steel shell, fully sealed structure |
| Norminal voltage | 3.6V | |
| Norminal capacity | 19000mAh | 2mA, 25±3ºC,cut-off at 2.0V |
| Max. continuous discharge current | 230mA | To get 50% of the nominal capacity at 25ºC, 2.0V cut-off.higher currents possible, consult SUNJ . |
| Max. available pulse current | 400mA | 400mA/0.1s pulse,drained every 120s at 25ºC from undischarged cell with 20uA base current,yield voltage readings above 2.7V.Fitting the cell with lithiun-ion battery capacitor will get higher pulse,consult SUNJ . |
| Operating temperature | -55ºC~+85ºC | |
| Dimension | φ34.2x61.5 | D |
Electrical performance curve
