1000W Water Cooling Laser Rust Removal Machine for Melt Surface Cleaning, Laser Cleaning for Automotive Parts, Automotive Welding Pretreatment Tools

Product Description

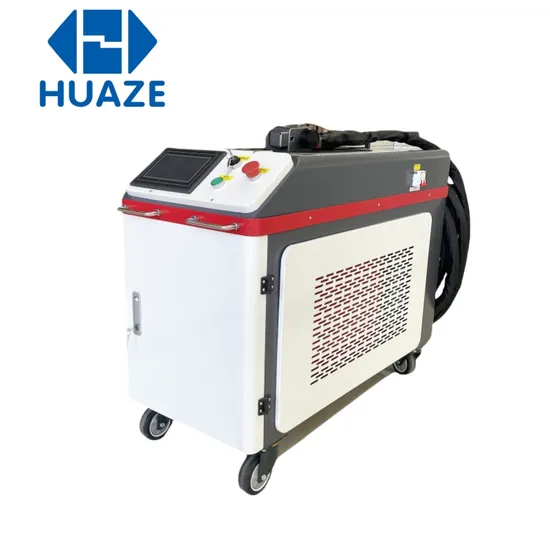

Cabinet Laser Cleaning Machine Water Cooling 1000w
The laser cleaning equipment produced by our company is a new generation of surface cleaning high-tech equipments.Environmental friendly laser ablation method to replace chemical and mechanical cleaning methods, which is easy of installation, manipulation and automation.. It can remove the surface of the rust, resin, stains, oil, dirt, coating, paint etc. Laser cleaning is considered to be the most reliable and effective solution because of its non-abrasive, non-contact, non-thermal effect and applicability to various materials. Laser cleaning will be instead of traditional chemical and mechanical cleaning methods for environmental protection and safety. our machine is widely using in various industries, including ships, auto repair, rubber molds, high-end machine tools, tracks, and environmental protection.
Welcome to send us inquiry now, discounts will be available. Product Description
1.1 What is Laser cleaning machine? This 1000w cabinet pulse laser cleaning machine is hand-held, small size, It can achieve very fast and simple cleaning, whole machine weight is about 135kg, It is also known as laser rust cleaning machine;All-in-one, all outside parts can be collected inside the cabinet, users can handle and move it forward easly. With very small cleaning head, greatly reduce workload, and support 16languages;
1.2 How many types of laser cleaning machine?
There're two most common types of laser cleaning machines:
1.One is pulsed laser cleaning machine.
Pulsed laser cleaning machine with pulse laser source and galvo cleaning head, if you have high-value products to be cleaned without harm the base materials, you must use this Pulsed laser cleaning machine, because CW laser cleaning machine will damage the base materials. If you wanna cleaning oil fouling, blot, and dirt on molds, you can choose this damage-free pulsed laser cleaning machine, it support 50w, 100w, 200w.

2.Another one is CW fiber laser cleaning machine;
CW fiber laser adopt handheld cleaning head with continuous laser source, the advantage of CW laser cleaning machine is of high cost performance, if you have low requirements for laser cleaning and only remove rust or thin paint of stainless steel, mild steel, iron and other metals, you can choose the CW laser cleaning machine. The laser power support 1000w, 1500w, 2000w.

1.3 How is it working?
Laser cleaning machine is a type of laser ablation machine to irradiate and heat the surface material of object with a CW (Continuous wave) laser or pulsed laser and make it evaporate or sublime to achieve the purpose of removing the surface materials.Users don't have to touch the surface polluted material, mount the cleaning head to polluted area, press down the trigger, the laser will promptly shoot out and clean the rust away.
1.4 Security identification & Electrical safety
Product Parameters
2.1 Operating environment and related parameters

Operating Environment
Content	HZ-1000M
Supply Voltage	Single Phase AC220V±10%, 50/60Hz AC
Power consumption	≤6000w
Working environment temperature	0ºC~40ºC
Working environment humidity	≤80%

Optical Parameters
Average laser power	≥1000w
Power instability	<5%
Laser working mode	Pulse
Pulse width	30-500ns
Maximum monopulse energy	15-50mJ
Power regulation range(%)	10-100(Gradient Adjustable)
Repeat frequency (kHz)	1-4000 (Gradient Adjustable)
Fiber length	10m
Cooling mode	Water cooling

Cleaning Head Parameters
Scan range(Length*Width)	0mm~250mm, continuously adjustable; supporting 9 scanning modes
Scanning frequency	The maximum is not less than 300Hz
Field mirror focal length(mm)	300mm (Optional 150mm/200mm/250mm/500mm/600mm)

Mechanical Parameters
Machine size (L*W*H)	About 990*458mm*791mm
Size after packing (L*W*H)	About 1200*650*1050mm
Machine weight	About 135kg
Weight after packing	About 165Kg
Cleaning head weight(excluding Optical head)	<1.5KG
Mode of operation	Handheld/Automated

Product Features
3.1 Which features of the handheld laser cleaning machine?
All-in-one design make the laser cleaning machine all outside parts can be collected inside the machine, including cleaning head, holder, laser cable, supporter and tool kit, users can hold the handle and push it along.
3.2 What's the configurations of this handheld laser cleaning machine?

Name of name	Model specifications	Units	Quantity	Remarks
Laser cleaning mainframe	HZ-1000M	Table	1	/
Laser cleaning head	HZ-QBDXYP1000	Sets	1	/
Process database	Built-in	Sets	1	/
Laser Protecive glasses	SD-3	Payment	1	/
Protect the lens	40*2	Pcs	5	/
Lens cleaning kit	Chassis	Pcs	10	/

3.3 16 kinds world languages support;
Our Laser cleaning machine' cleaning software is easy to understand, it supports 16kinds languages, including English, Chinese, Russian, Spanish etc
3.4 Compare with traditional cleaning machine, what advantages of our laser cleaning machine?

Item	Traditional		New Generation
	Dry Ice Cleaning	Mechanical Polishing	Laser cleaning machine
Workpiece Damage	Damaged	Damaged	No Damage
Side effect	No Pollution	Polluted	No pollution
Operation	Simple	High-intensity work	Simple
Contact	No contact	Touch and grind	Non contact
Cleaning Size	No limit	No limit	Accurate size cleaning
Consumable	Dry Ice	Sandpaper, grinding, wheel, oil stone etc	Only power on the machine
Frequency or Efficiency	Slow	Generally	Fast, improve at least 6times
Using Cost	Initial:Middle	Initial:Low	Initial:High
	Later:High	Later:High	Later:Low

Installation Instructions
Application
Our Laser cleaning machine is widely using in construction works,Machinery repair shops, Advertisement, Building material shops, Auto parts, Ship industry, for example rubber mold,High-end machine manufacturing,tire mold track,environmental protection industry,energy and Mining, Manufacturing plant etc
