US$16,500.00-17,500.00
|
1 Set
(MOQ)
|
Basic Info.
Application
River/Lake/Pond
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008, CE
Application Field
Agriculture
Warranty
One Year Warranty
Underwater Mowing Depth
Less Than 1.8m
Drive Mode
Bilateral Wheel
Amount of Work
1000-2000sqm/H
Transport Package
Standard Package
Production Capacity
100sets/Month
Packaging & Delivery
Package Size
850.00cm * 280.00cm * 80.00cm
Package Gross Weight
10000.000kg
Product Description
Paddle wheel/diesel propelled lotus leaf waterweeds hyacinth aquatic plants harvester for sea/occean
Product Description

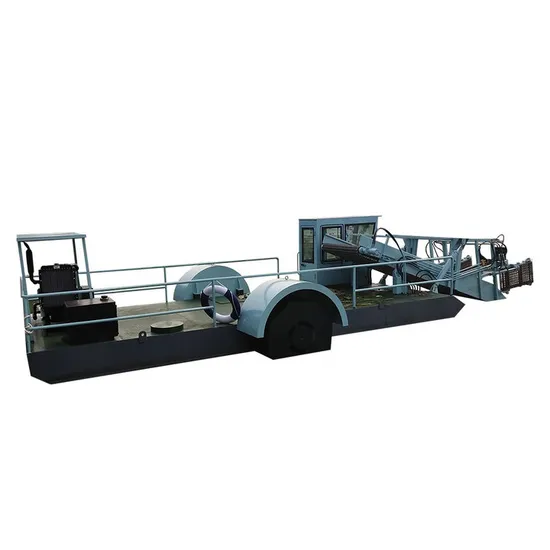

Mowing and cleaning boat
|
1. The ship is mainly used for salvage of garbage and floating objects in rivers and lakes, and the salvage garbage and floating objects can be automatically unloaded to the designated shore dock and garbage truck.
|
2. The ship has a two-compartmen structure, and the collecting bin is installed in the front section of the ship. According to the situation of garbage, the fishing depth can be adjusted freely, and the two ends of the collecting tank are mechanical swing arms, which can swing left and right to expand the cleaning area.
|
3. The middle compartment is a storage and unloading compartment, which can store the collected garbage and floating objects. After the ship reaches the shore, the middle compartment can be lifted up to unload the garbage by rotating the conveyor belt.
|
4. The ship salvage range is large, elegant and beautiful, low noise, low fuel consumption, safe and simple operation, high degree of automation, ca an effectively clean the river.
|
Technical Data:
River cleaning machine,which can be used in rivers,lakes,reservoirs,parks and other environments to clean up water plants,duckweed,lotus leaves,water hyacinth,reeds,etc.
Total length | 8.5m
|
Hull length | 6m
|
Hull width | 2.8m |
Hull height | 0.8m |
No load draft | 0.3-0.4m
|
Load draught | 0.4-0.5m
|
Collecting depth | ≤1.8m
|
Collecting width | ≤2m
|
Loading capacity | 2-3T
|
Power of engine | 39kw |
Sailing speed | 5-20km/h |
Working speed | 3-5km/h |
Endurance
| 12h |
Drive mode
| Bilateral wheel |
Discharge height
| ≤3m |
Amount of work
| 1000-2000sqm/h |
