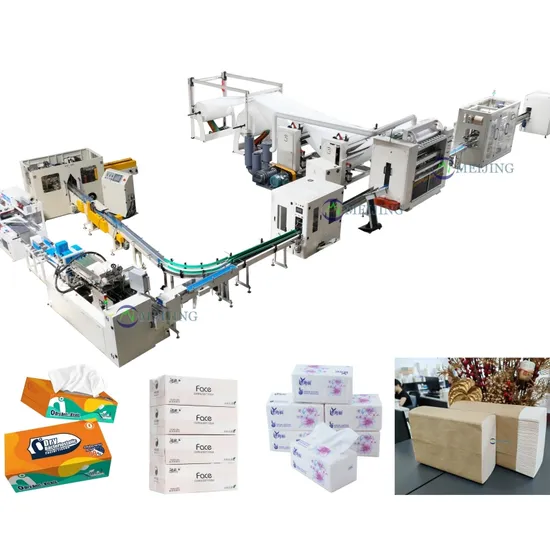

Auto Tissue Machine V Fold Facial Tissue /Hand Towel Paper Making Machine

Auto Tissue Machine V Fold Facial Tissue /Hand Towel Paper Making Machine

US$23,500.00-65,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FJ-CF
Certification
CE
Condition
New
Control
Automatic
Embossing Type
Custom Made
Embossing Roller
Custom Made
Tissue Packaging
Custom Made
Function
Multi-Function
Tissue Type
Pull Out
PLC
Siemens
Automatic
Full Automatic
Speed
0-130 M/ PCS
Back Stand
2
Transport Package
Standard Type
Specification
3*8*2.4
Trademark
MEIJING
Origin
China
Production Capacity
20PCS/Year

Packaging & Delivery

Package Size
800.00cm * 300.00cm * 190.00cm
Package Gross Weight
8000.000kg

Product Description

Product Description How to start a small facial tissue or cotton towel production? which machine shall need? 1. one set facial tissue folding machine2. one set facial tissue cutting machine3. one set facial tissue packing machineThere are different type machines, full auto type or semi auto type, very welcome your consulting to work on some different production solutions for your reference according to your market popular products.
Features: 1. Automatic counting and output;
2. The equipment provides 7-10 lines of different models for customers to choose. 3. The 6 line facial tissue folding machine is more suitable for the current market than 2-5 line. 4. Independent valve control system of knife groove ensures sufficient adsorption and side-by-side folding. 5. Operation system: imported PLC and frequency conversion speed regulation system.

* High Level Glue Lamination System
1. Two plies of paper web, each one goes to embossing first (steel roller to rubber roller);
2. The glue will be caught on the bulge of embossing face, goes to the middle oftwo steel rollers ( there point point combined two plies into one, or nested combined two plies into one)
3. Make the paper web more absorbency and strong.
4. Lamination unit with glue capacity adjusting control, to control the glue capacity from the glue tank to the paper surface.
5. it adopts scraping glue system, also can adopt rolling glue, the cost is different, scraping glue on the glue is much more stable than rolling glue on the glue, and the glue speed is more faster, and the probability of sticking paper is much lower.
6.Independent motor control glue: when stop machines, this motor automatically stir glue to avoid glue dry hard to clean.
7.when paper broken, machine will stop automatically.
1. Full Auto Facial Tissue Folding Machine
1.7~10 line V folding machine;
2.Machine speed: 0-12 logs /min;
3.Siemens PLC control & touch screen;
4. Driving by independent motor & for each station;
5. Adjust paper tension on touch screen;
6. Adopts vacuum suction & automatic fold counting function,advantages with high speed, neatly folding;
7.Stepless speed regulation unwinding, adapt to the high and low tension of the base paper;
8. With jogging button and Emergency button on machine;
9.The machine will stop when the paper broken to avoid waste caused by no paper or paper broken.
Machine Model FS-7/200 Facial Tissue Folding Machine
Jumbo Roll Width 1500mm for 7 lane machine
Jumbo Roll Dia 1300mm
Finished Products 200 * (100-230)mm, the width can be adjust on the machine
Jumbo Roll Stands 2
Program Control PLC, Siemens Brand
Parameter Setting Touching Screen, Siemens Brand
Machine Speed 0-12 logs /min
Embossing device Steel to steel, or steel to rubber
Counting auto electronic counting
vacuum pump LONGTECH roots vacuum pump (TAIWAN)
Power supply 7.5-25kw, 380V, 50Hz
Machine structure Full wallboard type
Certification European standard CE, TUV

2. Full Auto Facial Tissue Log Saw Machine
1.The machine will cut the facial tissue;
2.It can one channle or two channel;
3. Cutting speed: 100-200 sheets/min;
4. Adopt frequency control, PLC , servo tracking control to realize automatic control system;
5.The cutting size is adjustable freely;
6.The servo system can guarantee the cutting size is more precocious;
7.Equipped with Automatic photocell inspection system, the blade will stop cutting when no paper log coming;
8. Equipped with blade sharpening frequency;
9. The machine will connect with facial tissue folding machine and packing machine to be production line.
Machine Model DH-M120-II Full Automatic Facial Tissue Log Saw Machine
Cutting Size (90-250)*(60-150)*(60-150)mm
Max Log length 2100mm
Driving system Servo motor drive feeding belt
Cutting system Rotating circular knife
Cutting Speed 100-120 cuts/min
Cutting Channel One or two
Grinding Pneumatic grinding, parameter can be set on the control panel
Cooling system steady compressed air blowing for cooling
Driving Independent servo motor drive,
Power supply 9kw, 380V, 50Hz
Certification European standard CE, TUV

3. Full Automatic Facial Tissue Packing Machine
1. Adopt packing method by wrapping, folding and sealing with compact structure and high product appeal;
2. Adopts advanced PLC computer program, human-machine interface operation;
3. Automatic tailing, automatic push function,cutting and sealing;
4. Emergency stop/pause control function,safe power off, pressure protection;
6. Sealing and cutting device adopts temperature control design, good sealing effect, no broken bag.
Machine Model ZB302 Full Automatic Facial Tissue Packing Machine
Packing Size L: 100-210mm
W: 90-150mm
H:30-150mm
Packing Speed 100-120 bags/min
Program Control PLC,
Parameter Setting Touching Screen
Air supply 0.5-0.7 MPa
Packing film CPP,PE,OPP/CPP,PT/PE,KOP/CP Film,ect.
Film rolls max diameter 450mm
Film rolls inner core dia 75-78mm
Power supply 8kw, 380V, 50Hz
Machine weight 3000kg
Certification European standard CE, TUV
Finished Product


Exhibition

Certifications

FAQ

Q:Can engineer come to our country?My staff can't operate the machine -- We have skillful and experience technician train and teach the workers to operate the paper machine,we have very very details installation video and guide training online too. Q:How to purchase accessories or wearing parts matching the paper towel machine?Can you sell it to us --Before shipping, we will prepare some wearing parts to avoid the need for replacement in the future about 2 years, after it, when you need we will send you at basic cost in time. Q: How can i choose the machine model?
-- please send us inquiry and tell us your production demands ideas, like capacity, jumbo roll information, workers, workshop etc, we will make details analysis for your reference and to work on suitable production line for you. Q: How long we can receive the machines? --According to different model type, usually the delivery time is about 50-70 days. We manufacturing the popular model in store, it will more fast delivery.
