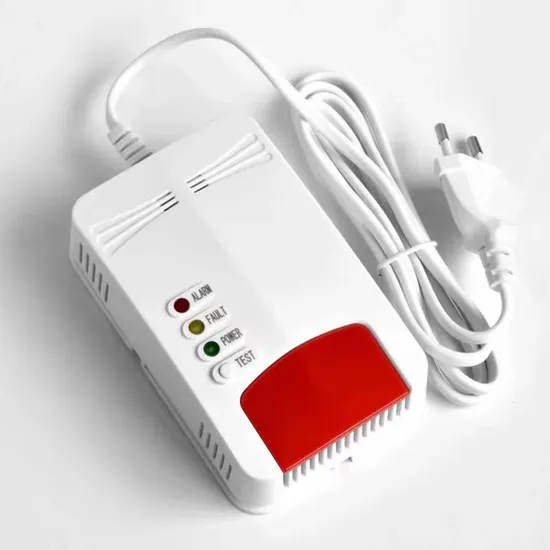

Wired Wireless Co Gas Detector with Relay Output and Solenoid Valve (ES-6505GD)

Product Description

Wired Wireless CO Gas Detector with Relay output and solenoid valve (ES-6505GD)
Features/Specification
High reliability sensor
Auto reset after alarm
MCU processing adopted
fault automatic detected
Gas type:natural gas/LPG /CO
SMT design,high stability
Technical Specification
Operating voltage: AC 85-260V
Static current :<= 100mA
Alarm current :<= 110mARating Power: <= 3W (AC 220V supply)
Warm-up Time: 180S
Alarm Level:10%LEL(CH4);
Alarm Level CO:100PPM
Power: LED Constant Green
Alarm: LED Flashing Red Rapidly (CH4)
LED flashing red slowly (CO)
Sensor Failure: Fault LED Constant Yellow
Alarm Reset:Automatic reset when leaked gas clears
Sound Level: >= 85dB/m
Operating temperature: -10 ºC~ +50 ºC
Environment humidity: <= 95 % RH (no congelation)
Installation mode: wall mounted
Alarm output: relay output/sound & flash alarm
Networking: RF 315MHz or 433MHz (wireless type)
Radio distance: 100m in open area (wireless type)
Execute criterion : GB15322.2-2003
Outline size : 123*78*40mm
Product Profile
Installation
Wired Wireless Optional

Type	Output
Wired	Relay NO/NC & Sound
Wireless	RF Signal & sound

DC AC types optional

Connectors for solenoid valves
