Product Description
Product Description

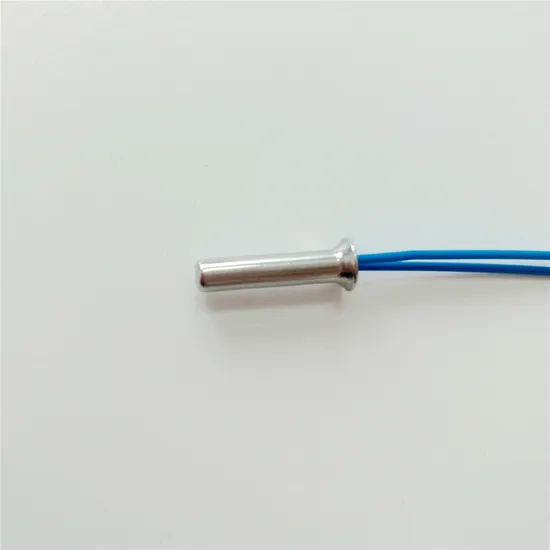

MFP series temperature sensor using the NTC resistance element, according to the different temperature environment or application, through the mature technology, fabricate into a variety of specifications of the sensor, customers can use directly without fabricating.
Technical Data:
Item | Temperature |
Sensing Element | NTC Thermistor various R and B value on request |
Temperature range | -30°C to +150°C |
Response time | Water (0.4m/s) T0.63 ≤ 30s |
Dissipation Factor | ≥ 2.5mW/°C |
Long-term stability | Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C) |
Dielectric Strength | 1500VAC |
Insulation Resistance | ≥100MΩ 500VDC |
Other options:
1.Standard value: R25ºC: 10K B25/85ºC: 3435, different NTC R-T curve available
2.Different probe and wire size and color available.
3.Different size SUS housings available for sensor mounting protection.
4.Different type of connector is available.
Typical Applications:
1. Toilet seat heating
2. Water heater
3. Floor heating and Cogeneration systems
Features:
1. Moisture-proof
2. Fast response
3. Small time constant
Relevant Products:
