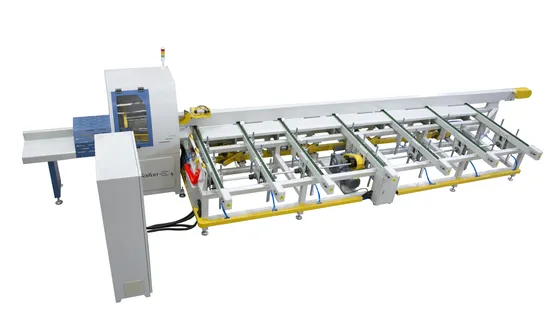

Automatic Timber Cross Cut Saw Machine with Feeding System

Automatic Timber Cross Cut Saw Machine with Feeding System

US$33,000.00
1-4 Pieces
US$30,500.00
5-9 Pieces
US$28,000.00
10+ Pieces

Basic Info.

Model NO.
SF6060S
Power Type
Electric
Layout
Vertical
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Customized
Customized
Condition
New
Color
Customized
After-sales Service
on Line Service
Feeding Speed
5-30m/Min
Cutting Width
30-300mm
Cutter Spindle Rotation Speed
3150rpm
Servo Drive Motor Power
1kw
Cutting Motor Power
11kw
Transport Package
Plywood Box
Specification
9.4m*1.2m*1.6m
Trademark
Saifan
Origin
China
HS Code
8465910000
Production Capacity
500

Packaging & Delivery

Package Size
9692.00cm * 2825.00cm * 1768.00cm
Package Gross Weight
3300.000kg

Product Description

Product Description
Application
This is automatic cross cut saw, cutting continuously and automatically with high precision and high efficiency. Have program, can pre-set and edit and save cutting plans. Detail description
It contains cutting program, input parameters from the Siemens PLC touch screen, have two cutting modes, one is Manual measure mode, measure raw material length by hand then input into machine, and then input max. 8 different cutting length and quantity. Another mode is Auto measure mode, machine will auto measure the raw material length, and can input only 1 length and quantity.
Can automatic show the problem alarm words in screen, and with our operation guidance videos, worker can easily understand the problem and release it.
Product Parameters
Model SF6060S
Saw blade diameter 600mm
Feeding table length 6m
Max. Feeding length 6.1m
Out-feeding table length 1.2m
Cutting thickness 10-140mm
Cutting width 30-300mm
Cutting section
Thickness*width
Max.150*280mm
Max. 140*300mm
Feeding speed 5-30m/min
Saw spindle diameter 30mm
Cutter spindle rotation speed 3150rpm
Servo drive motor power 1kw
Cutting motor power 11kw
Total power 18.5kw
Voltage 380v 50hz 3phase
Pressing method Cylinder, air pressure 0.5-0.8Mpa
Flow 0.1m3 / min
Nozzle 10mm
Cutting tolerance In +/-1mm
Machine size 9.4m*1.2m*1.6m
Machine weight 1200-1400kg
Dust collection port 150mm*2pc
Electrical components Schneide r
PLC & Touching screen Siemens

Detailed Photos
1.It contains cutting program, input parameters from the Siemen s PLC touch screen, have two cutting modes, one is Manual measure mode, measure raw material length by hand then input into machine, and then input max. 8 different cutting length and quantity. Another mode is Auto measure mode, machine will auto measure the raw material length, and can input only 1 length and quantity.
Can automatic show the problem alarm words in screen, and with our operation guidance videos, worker can easily understand the problem and release it.
2.Working table is slanted, thus wood can close to the table tightly in cutting. Start button can be remote control or wire control, thus more convenient for operator.
3.Movable magnetic Start Button, more convenient for worker.
4.Heavy duty and wide worktable more convenient for load wood, aluminum alloy pusher head, longer life.
5.Built-in control panel thus can protect the panel, more convenient for operation thus reduce labor intensity.
6.Built-in & Independent sawing unit, strong motor belt, underlay motor, more stable and safe, good for saw blade, convenient for exchange saw blade.
7.Safe sawing unit inside the machine, more safe for workers, and convenient for collection sawdust, thus to protect the machine. Three pressing structures hold and press wood, can ensure smooth cutting.
8.Safe switch, when open the door, machine will stop immediately thus to protect machine and worker.
Related Products
Certifications

Packaging & Shipping

Company Profile
Manufacture woodworking machines in 2003.
Manufacture foldable plywood box machines in 2007, and become the market leader owns +70% market share since 2010 in China.
As our customers and market request, develop and manufacture wood pallet machines from 2012.
In order to grow up together with our customers, making long-life and reliable machines is our pursuit, we insist on developing new and better automatic machines.
We have our own Research & Development team, Machining center, Painting center, Assemble and Testing center, Sales Team, and After-sales Service Team, total about 20000Sqm area, and 90 workers totally.
Now we have Foldable plywood box machines, wood pallet machines, wood pallet collar machines, and wood package software etc.
Welcome your inquiry and visiting.
FAQ
1. Do you offer installation?
Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.

3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.

4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.

5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.

6. Can you customized the machine?
Our machines can be customized made according to buyers' request.

7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.

8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish.
