D50: 50-180um Herbal Medicine Ultrafine Powder Dry Grinding Wood Fiber Mill

D50: 50-180um Herbal Medicine Ultrafine Powder Dry Grinding Wood Fiber Mill

US$30,000.00-90,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CUM-L
Cutter Material
Hard Alloy
Object
Wood, Herbal Medicine, Wood Flour, Wheat Stalk
Type
Wood Fiber Mill
Partical Size
D50:50-180um
Certificate Standards
GMP/FDA
Production Capacity (Kg/H)
3-200
Rotate Speed (Rpm)
3000
Input Particle Size (mm)
<=6
Produce Size (Mesh)
80-300
Power (Kw)
7.5-55
Principle
Cylinder Culling
After-sales Service
Installation, Commissioning & Training
Warranty
2 Years
Transport Package
Standard Packing
Specification
Customized
Trademark
ALPA
Origin
Shandong
Production Capacity
2000sets/Year

Packaging & Delivery

Package Size
4000.00cm * 5000.00cm * 6000.00cm
Package Gross Weight
10000.000kg

Product Description

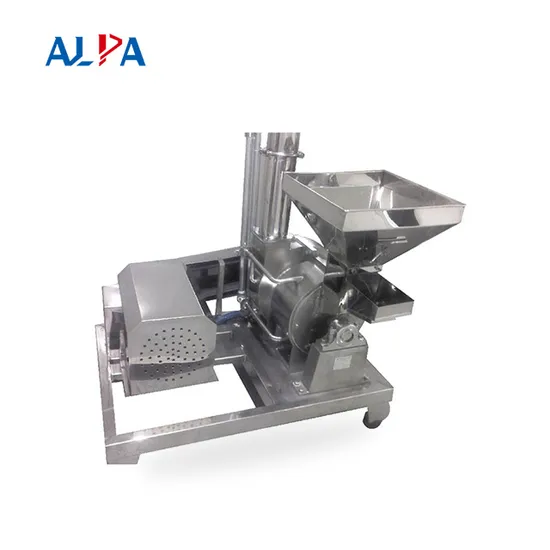

CUM-L Wood Fiber Mill
Widely used in Chinese herbal medicine, wood flour, wheat stalk, corn stalk, rice stalk, sorghum stalk, millet stalk, sesame stalk, peanut shell and other industries.

Available D50:50~180μm. No sieve classification to avoid difficult screening Negative pressure operation, Friendly-environment, GMP/FDA standards. It is dust-free during the grinding process and can be installed in a clean workshop. Independent air inlet and exhaust system 20~30% higher than the same type of grinding equipment Compact structure and small occupation. easy to disassemble and clean Lower installation power, wide application, high cost-performance. High efficiency, low production cost, widely used in the pharmaceutical and food fields Suitable for grinding of fiber materials such as Chinese herbal medicine and straw etc. Grinding is in closed system, low dust and noise, clean and environmentally friendly production process. PLC control system, easy operation. Optional explosion-proof design, meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials High-temperature, low-temperature, normal-temperature, airtight cycle, Inert gas cycle designs are available, for different grinding requirements of different materials.
Working Principle & Advantages
1.The material (≤6mm) is sent to the grinding chamber under negative pressure. The grinding chamber consists of three grinding zones:The first grinding zone: pendulum - can grind various harder materials, such as minerals, leather, animals;The second grinding zone: pendulum knives - can grind various fiber materials, rhizomes, whole grasses, fruits, fungi, flowers and others;The third grinding zone: fixed knives - control particle size by adjusting the gap.The material is conveyed to the classifying chamber. Centrifugal force field is generated by classifying impeller.
The qualified fine powder is moved to the center of the rotor, sucked away by draft fan, and then collected by cyclone collector; the coarser particles return to grinding chamber for secondarily grinding. Material recovery rate is above 99%.2. Designed according to the "GMP" standard of the pharmaceutical industry. Stainless steel. Dust-free and can be installed in clean workshop.3. Easy to operate, high efficiency and low cost. Widely used in pharmaceuticals and food industries.4. Could be used not only in single machine, but also in closed loop system with air classifier to obtain finer particles.
Technical Parameters:

Parameter CUM240-L CUM300-L CUM500-L CUM600-L CUM700-L
Production Capacity (kg/h) 3~15 10~40 20~80 60~120 80~200
Rotate Speed (rpm) 3000 3000 3000 3000 3000
Input Particle Size (mm) ≤6 ≤6 ≤6 ≤6 ≤6
Produce Size (Mesh) 80~300 80~300 80~300 80~300 80~300
Power (kw) 7.5 11 22 37 55
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
Related Engineering Case:

Shandong ALPA Powder Technology Co., Ltd. (abbreviation: ALPA / Equity Code: 171033)
THE WORLD'S LEADING SUPPLIER OF ULTRA-FINE POWDER SOLUTIONS
ALPA is a world-renowned supplier of powder processing systems, committed to traditional powder industry development. For 20 years, focused on the research and development of dry grinding, classification, powder shaping, surface modification and provided systematic solutions. We provide customized and international certified products: Jet Mill, Air Classifying Mill, Classifier, Ball Mill and Classifying production line, powder surface modification production line, etc.

WHO CHOOSE ALPA
37 world top 500 companies, 89 Chinese top 500 companies, 169 national key laboratories and engineering technology research centers have selected ALPA. More than 3,000 customers have chosen us
ALPA enjoys a high reputation in more than 100 countries and regions around the world.With its high-quality products and services, it has won the trust of many well-known brand companies around the world.
Certification Authority
ALPA is one of the earliest companies in the industry that passed the ISO9001 quality management system authority certification. At the same time, ALPA has free import and export rights, and has obtained CE certification for export to the European Union and GOST certification for export to Russia. The machine design used in the medical industry fully meets the requirements of GMP certification.
Good After-sales Service
Our after-sales service team is always ready to diagnose and solve problems for you
Having trouble with the production process? Do not worry. We will be waiting for you 24 hours a day.
About Our Equipment
ALPA can provide dry ultrafine grinding equipment suitable for various materials Impact mill
High efficiency, has two milling effects of impact and grind, large milling ratio, simple structure, stable operation, suitable for milling medium-soft hard materials.
Jet mill
Uses the high speed turbulence airflow generated by compressed air or superheated steam as milling power. Impact extrusion, friction and shear between the particles or between the particles and the fixed plate occur, so as to achieve milling.
Ball mill + Classifying
The ball mill and classification production line refers to a complete set of milling system composed of Ball mill, cyclone, dust collector and fan.
Q: What service do you supply? A: 1). We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients' project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
