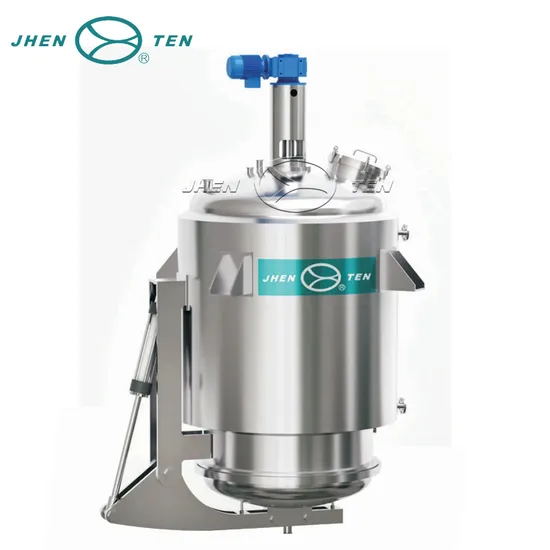

304 316 Stainless Steel Drug Extractor Plant Extraction Tank
| US$12,000.00-28,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ZT
Certification
CE, ISO, CE, ISO9001, Nb/T 47003.1-2009, GB150-2011"
Condition
New
Main Material
Stainless Steel
Mixing Drum Shape
Disc
Quick Details Place of Origin
1 Year
After-Sales Service Provided
Video Technical Support, Online Support
Applicable Industries
Applicable Industries:
Key Selling Points
Key Selling Points:
Weight (Kg)
50 Kg
After Warranty Service
Online Support
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
Marketing Type
Hot Product
Warranty of Core Components
1 Year
Core Components
Motor
Material
SS304, SS316
Manufacturing Process
Be Equipped with Jacket and Insulation Layer
Scope of Application
Tea, Chinese Herbal Medicines
Surface Treatment
Electrical Polish, Mirror Polish, Sand Polish, Aicd
Layout Type
Horizontal
Mixer Type
Extractor
Operating type
Extractor
Transport Package
Export Package
Specification
2000L-8000L
Trademark
JhenTen
Origin
China
HS Code
84219990
Production Capacity
200 Set/Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 300.00cm * 500.00cm
Package Gross Weight
500.000kg
Product Description
Packaging & Delivery Packaging DetailsPlywood Case
Port
ShangHai or NingBo
Lead Time :
| Quantity(Sets) | 1 - 1 | >1 |
| Est. Time(days) | 20 | To be negotiated |
• There are varieties of volume from 2000L-8000L, also it can be designed and customized according to the customers' equirements.
• Pneumatic control self-locking type discharge door ensures noleakage and it is fast and safe under the sudden electricity off and gas off.
• Connector uses tri-clamp, inner tank use SS304 or SS316L, the inner surface mirror polishing Ra≤0.28um-0.6um. Outer surface can be polished, wiredrawn, sandblasted according to customers' requirement.
Tank Optional Configuration
• Mobile Storage Tank Optional Configuration: sterile air filter, thermometer (digital display type or dial), pressure gauge, sightglasses, sanitary manhole, in-outlet, CIP universal rotatingcleaning ball, level gauge, etc., or configured according to customers' requirements.
Application
Suitable for food, chemical industry, atmospheric, decoction, wet leaching, heat reflux, forced circulation penetration, aromatic oil extraction and organic solvent recovery, especially for Dynamic extraction or countercurrent extractio, short time and high content of material.
Suitable for dynamic extraction of tea, herbs and other plant leaveswith water as solvent medium.
Product Parameters
| Design Parameter | |
| Design pressure | customers' requirements (ATM-0.8MPa) |
| Design temperature | Tank body and Jacket (0ºC~160ºC) |
| Material | |
| Liner | 304, 316L |
| Jacket | 304 |
| Insulation | Rock wool or PU |
| Legs | 304 |
| Connection | |
| In-outlet | Tri-clamp, Flange |
| Surface Finish | |
| Finish type | Mechanical / electrolytic polishing, sand blasting, pickling |
| Polishing precision | Inner surface Ra≤0.4um |
| Outside surface Ra≤0.6um | |
Normal Model And Main Technical Parameters
| Model | JTRDC-2000 | JTRDC-3000 | JTRDC-5000 | JTRDC-6000 | JTRDC-8000 | |
| Effective volume(L) | 2000 | 3000 | 5000 | 6000 | 8000 | |
| Tank | Diameter(mm) | Φ1300 | Φ1600 | Φ1800 | Φ1900 | Φ2000 |
| Height(mm) | 1500 | 1500 | 1800 | 2000 | 2200 | |
| Mxing | Power(kw) | 2.2 | 3 | 4 | 5.5 | 7.5 |
| RPM(r/min) | 35(Screw)(Can adjust the design according to the customers usage) | |||||
