2000t Heavy Duty Aluminum Cold Chamber Die Casting Machine

Product Description

GUANGDONG SHIMI INTELLIGENT EQUIPMENT CO.,LTD

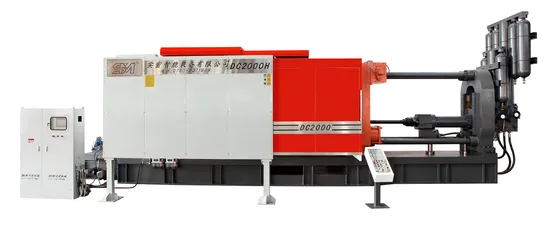

Aluminum Die Casting Machine DC2000T High Pressure Cast Machine
SHIMI DC2000T Cold Chamber Aluminum Die Casting Machine for making LED lighting Features and Configuration

Reinforced Toggle Design
Mold clamping unit adopts Five-dot type toggle design, which optimized structure of connecting road and enhanced sports properties.
The steel bushing of hinge pin adopts alloy steel bushing (oil lubrication exist simultaneously),which reduce times of lubrication and prevent locking of toggle when no oil .

Die Platen and Tie Bar System
The optimization design of die platens have been carried out multiple times through analysis of element software, then strengthening design (increased thickness and support ribs of castings ), which both guarantee the service life of die platen and mold. The tie rods of each machine have passed the test by professional testing organization, to ensure the deflection of tie rod within reasonable scope during the operation of machine.


New Generation Stable and Reliable Injection System
Using 17.5Mpa system pressure, the maximum dry shot speed reaches to 8-9.5m/s, the injection force increases about 5-8%, it is more easier to molding to products with thin wall or high requirement on air tightness and surface finish, to reduce porosity of die castings effectively , especially suitable for automotive castings and stress castings.

Automatic centralized lubrication system
Central automatic lubrication system, timing lubrication toggle to improve mechanical life and reduce maintenance.

Servo drive and dual proportional control hydraulic power systemDual-proportional control of the hydraulic system, intelligent dynamic operation, clear high-pressure throttling, reduce oil temperature.
Dual proportional control hydraulic system, pressure and speed can be adjusted.
Improve the stability of the whole machine and ensure the product quality.
Flexible and smooth action conversion, reduce the impact of action, and prolong the service life of machinery and molds.

Precise And Reliable Mold Adjusting System
Product Parameters

ITEM	UNIT	DC2000T
Clamping force	KN	20000
Clamping stroke	MM	1400
Ejecting force	KN	650
Ejection stroke	MM	300
Mold thickness	MM	600-1600
Platen Size (w*h)	MM	2150*2150
Diameter of die bar	MM	280
Tie bar spacing(w*h)	MM	1350*1350
Force of shot	KN	1510
Stroke of shot	MM	1050
Plunger diameter	MM	120-160
Shot Weight/Al	KG	22-39
Shot Weight/Mg	KG	15.8-28
Casting Pressure (Intensify)	Mpa	133-75
Casting area	CM2	1400-2630
Max Casting area	CM2	5000
Injection Position	MM	-200,-400
Launch distance of shot head	MM	450
Shot chamber flange diameter	MM	260
Shot flange protruding plate height	MM	30
Power of Motor	KW	110
System working pressure	MPa	16
Oil Tank Volume	L	2800
Weight of Machine	KG	130000
Size of Machine	M	12.7*4.4*4.4

Products Application

Packaging & Shipping
Company Profile
Guangdong Shimi Intelligent Equipment Co., Ltd
is a professional manufacturing enterprise engaged in research and development, manufacturing, sales and export of cold chamber, hot chamber, and vertical die casting machines,Founded in 2009, the company has been relying on a professional R&D team. Combining advanced die-casting machine production and manufacturing processes at home and abroad.ShiMi has independently researched and developed hundreds of reliable products with high performance and high stability. ShiMi company has achieved rapid development, And it has invested a new production base in Jiangmen, Guangdong in 2022.Covering an area of 23000 square meters. ShiMi company has the capabilities of R&D and manufacturing heavy duty die-casting machines.
Our Advantages
High Performance Cold Chamber Die Casting Machine Series DC2000T
+ Maximum idle shot speed > 9m/s
+ Pressure build up time ≤15ms
Low-speed stage: It can be accurately controlled to avoid the air involved in gas accumulation.
High speed stage: Can quickly reach high speed, effectively control the filing time and casting molding effect. Pressure-boosting stage : the pressurization speed, speed can be changed according to the process to strengthen the casting density without causing deformation.
