US$4,365.00-9,999.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
DM-12NT/DM-14ST/DM-16MT
Product Name
Horizontal Tube 1600 Degrees Vacuum Mti Dual Zone
Heating Element
Fe-Cr-Al-Mo Wire/Sic/Mosi2
Tube Material
Quartz Tube/Alumina Tube
Thermocouple
K / S / B Type
Temperature Accuracy
+-1c
Transport Package
Wooden Box
Specification
60-120 diameter
Production Capacity
200/Month
Product Description

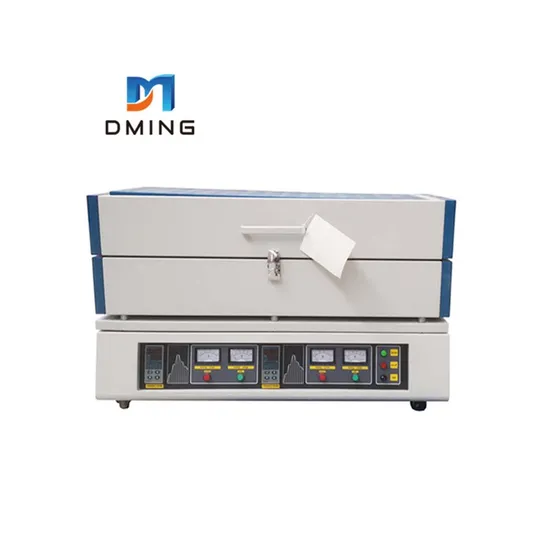

Product Description Horizontal tube vacuum mti dual zone tube laboratory furnace with 1200 c
Features:
Dming multi-zone tube furnace is split with two, three or five heating zones, which can achieve faster heating up to 1200oC and create a different thermal gradient by adjust different heating zone temperature. It is excellent furnace to prepare functional materials under thermal gradient, epitaxial film growth by CVD or PVD with a vacuum system, and also can be used for annealing, diffusing and sintering sample in various atmospheres.
Standard Parts:
Tube plug 4 pcs; Thermocouple 1 pc; Quartz tube 1 pc; Vacuum pump 1 pc;
Vacuum flange 1 set; Vacuum gauge 1 pc
Product Parameters
Model | Tube Outer Dia * Heating Zone Length | Power (KW) | Max Working Temperature | Heating Zone | Thermocouple | Tube Material | Heating Element |
DM-12NT-40/220-2 | 40x220x220mm | 5 KW | 1200oC | 2 zones | K type | Quartz tube | Fe-Cr-Al-Mo wire |
DM-12NT-60/220-2 | 60x220x220mm | 5 KW |
DM-12NT-80/220-2 | 80x220x220mm | 6 KW |
DM-12NT-100/300-2 | 100x300x300mm | 12 KW |
DM-12NT-120/300-2 | 120x300x300mm | 12 KW |
Model | Tube Outer Dia* Heating Zone Length | Power | Max Working Temperature | Heating Zone | Thermocouple | Tube Material | Heating Element |
DM-14ST-40/220-2 | 40x220x220mm | 5 KW | 1400oC | 2 zones | S type | Alumina tube | SiC heating element |
DM-14ST-60/220-2 | 60x220x220mm | 5 KW |
DM-14ST-80/220-2 | 80x220x220mm | 6 KW |
DM-14ST-100/300-2 | 100x300x300mm | 12 KW |
DM-14ST-120/300-2 | 120x300x300mm | 12 KW |
Model | Tube Outer Dia * Heating Zone Length | Power | Max Working Temperature | Heating Zone | Thermocouple | Tube Material | Heating Element |
DM-16MT-40/220-2 | 40x220x220mm | 6 KW | 1600 | 2 zones | B type | Alumina tube | MoSi2 heating element |
DM-16MT-60/220-2 | 60x220x220mm | 6 KW |
DM-16MT-80/220-2 | 80x220x220mm | 6 KW |
DM-16MT-100/300-2 | 100x300x300mm | 12 KW |
DM-16MT-120/300-2 | 120x300x300mm | 12 KW |
Note: It can also be made into 3 heating zones and 5 heating zones according to customers' requirement.
Company Profile Dming Technology is the leading manufacturer of lab furnace, industrial furnace and the related accessories.As a manufacturer with more than 10 years' experience in thermal engineering, Dming Technology offers the wide and deep range of furnaces worldwide. Satisfied customers in more than 30 countries offer proof of our commitment to excellent design, quality and cost efficiency.Dming Technology offers a complete line of high temperature processing technologies in many styles and configurations.From muffle furnaces, Melting furnace, distillation furnace, electric arc furnace to vacuum sintering furnaces(Powder Metallurgy), Mesh belt furnace,oil gas quenching furnace and large-scale production ceramic kilns.Our customized solutions include products and heat treatment processes designed to meet specific customer requirements, and provide sample testing until the customer is satisfied.
Our Advantages
Production & stocks
Package & shipping
FAQ Q1: How is your company's product after-sales service system?
A: We have professional pre-sales and after-sales departments and
can respond to you within 8 hours to resolve any technical issues.
Q2: How about the quality guarantee period?
A: 2 years, exclude irrationally operating and consumable parts.
Q3: How about your products quality?
A: CE certification available and twice test before shipping.
Q4: What's your delivery time?
A: Conventional model needs 3 days.35 days for customized products
Q5: Are you a manufacturer or a trading company?
A: We are a factory with 10 years experience in the field.
