Angle Profile Processing Machine Fincm Cnc Angle Hole Punching Machine Fabrication

Angle Profile Processing Machine Fincm Cnc Angle Hole Punching Machine Fabrication

US$80,000.00
1-2 Sets
US$78,000.00
3+ Sets

Basic Info.

Model NO.
APM1412S
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.3-0.5mm
Performance Classification
Mid-Range CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Weight
10t/15tons/18t/22t
Max.Length Workpiece
8m/12m
Max.Punching Diameter
22*50mm/25.5mm
Punching Force
150kn/350kn/950kn
Maiking Force
1030KN
Shearing Force
1800KN
Max Length Workpiece of Finished
8m/12m
Workpiece Feeding Speed
40m/Min
Cooling Method
Water Cooling/Air Cooling
Quantity of CNC Axes
3
Nominal Punching Force
1000kN
Cutting Mode
Single-Blade Shearing
Frequency
50 Hz
Working Temperature
0ºC~ 40ºC
AC Voltage
380V
Transport Package
Container
Specification
25m*7m*2.2m
Trademark
FINCM
Origin
China
HS Code
8462411900
Production Capacity
100 Units

Product Description

Product Description

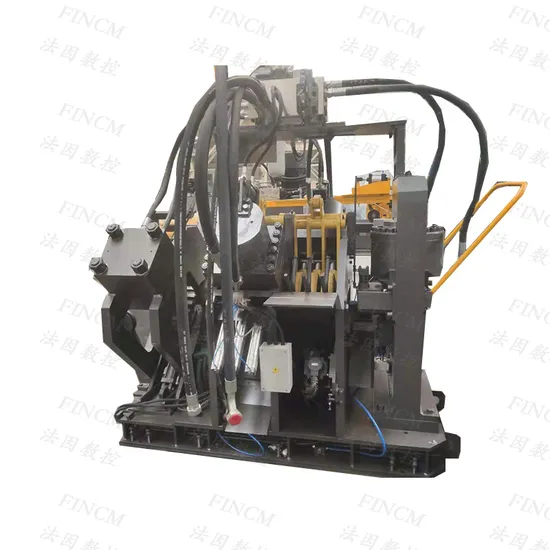

APM1412S FINCM Hydraulic Angle Steel Tower Angle Line CNC Punching Shearing Marking Machine
It is mainly used for customers to manufacture angle steel components, complete typing, punching, fixed length cutting on angle steel. Simple operation, high production efficiency.

Technical specification of APM1412S:
Model APM1412S
Angle Size 40x40x3~140x140x8mm(Q345)
Max. workpiece length 12m
Max. punching capacity(DxT) Φ25.5mm x8mm
Nominal punching force 350KN
Nominal marking force 1030KN
Nominal cutting force 1800KN
No. of character group 4 Piece
No. of character in each character group 18 Piece
Character size 14x10x19mm
Range of stadia 20~170mm (stepless)
No. of punch on each side 3piece
Max. feeding speed 40m/min
No. of CNC axes 3piece
Overall size 25x7x2.2m
Total power 31.4Kw
Machine weight (kg) Approx. 15000kg

Angle feeding Speed: 40m/min, the effiency is about 1000 holes/hour
The finished angle conveyor is rotated to one side by pneumatic power. The max. Length of finished angle is 8 m.
There are four transverse conveyors which can infeed automatically.
Type of programming: Keyboard input, USB interface input, floppy disc input.
Working environment:
Working temperature: 0~ 40 degree
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ± 10%
Frequency: 50 Hz
Main outsourcing components list of APM1412S:
No Name Brand Manufacture
1 AC servo motor Delta Taiwan China
2 PLC Delta Taiwan China
3 Electromagnetic valve Atos/Yuken Italy/Tawan
4 Relief valve Atos/Yuken Italy/Tawan
5 Double vane pump Albert USA
6 Air valve SMC/Airtac Japan/Taiwan China
7 Cylinder SMC Japan

Relateed Products
Company Profile
Shandong FIN C N C MACHINE CO., LTD is located in Jinan high tech Development Zone, is committed to the development, research, design, manufacture, sales of CNC machine tools, such as processing angle bar, beam channel profiles, steel plates, tubesheet and flanges. It is mainly used in iron tower, steel structure, heat exchanger, boiler, bridge, truck and other industries.FIN CNC machines exported to 50+ countries across globe market. Our company has strong R & D center with 30 engineers team, they have 20 years of experience ; 280 staff, plant area about 270,000 sqm. Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine. The company drafted many China national standards for C N C angle line
Cooperatine Supplier

Product Process Control
Sales Network
Our Service
FAQ
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
