Low Rpm 5kw 220V Permanent Magnet Generator Neodymium Ring Magnet

Product Description

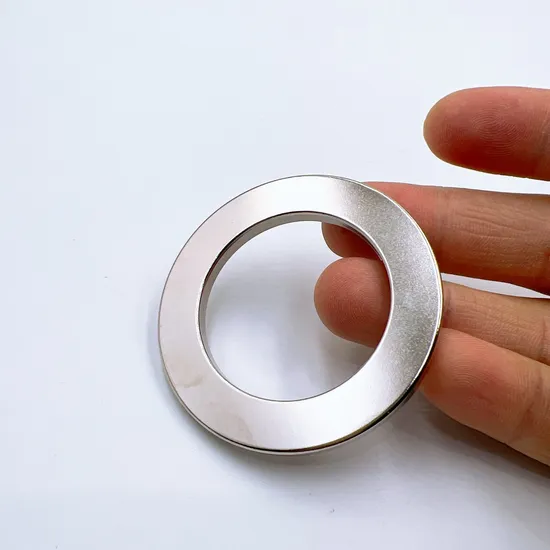

Low rpm 5kw 220v permanent magnet generator neodymium ring magnet
(HS code: 85051110) Product Description Product show:

Material	Neodymium-Iron-Boron
Performance Grade	N35-N52
Size	ODiameter Min 1mm-Max 220mm IDiameter Min 0.6mm-Max 80mm Thickness Min 0.5mm-Max 50mm
Surface	Nickel (can build all kinds of coatings)
Tolerance	± 0.05mm
Magnetization	Thickness (Poles on Flat Ends)
Operating Temperature	Maximum 80 ° C (can be customized temperature)
Note	1. Be careful fragile and clip hand. 2. Placed in a dry place, stored at room temperature! 3. When connecting two magnets, must be careful draw them, close to each other slowly and gently. Hard crushing would cause damage and cracks in the magnetic material.

Grade:

Grade	Br		Hcb		Hcj		(BH)max		Working Temp
	mT	Gs	kA/m	Oe	kA/m	Oe	kJ/m3	MGOe	ºC
N35	1180-1230	11800-12300	≥868	≥10900	≥955	≥12000	263-287	33-36	≤80
N38	1220-1280	12200-12800	≥899	≥11300	≥955	≥12000	287-310	36-39
N40	1260-1310	12600-13100	≥923	≥11600	≥955	≥12000	302-326	38-41
N42	1280-1340	12800-13400	≥923	≥11600	≥955	≥12000	318-342	40-43
N45	1320-1370	13200-13700	≥876	≥11000	≥955	≥12000	342-366	43-46
N48	1360-1420	13600-14200	≥836	≥10500	≥876	≥11000	358-390	45-48
N50	1390-1450	13900-14500	≥836	≥10500	≥876	≥11000	374-406	47-51
N52	1420-1480	14200-14800	≥796	≥10000	≥876	≥11000	390-422	49-53
N35M	1180-1230	11800-12300	≥868	≥10900	≥1114	≥14000	263-287	33-36	≤100
N38M	1220-1280	12200-12800	≥899	≥11300	≥1114	≥14000	287-310	36-39
N40M	1260-1310	12600-13100	≥923	≥11600	≥1114	≥14000	302-326	38-41
N42M	1280-1340	12800-13400	≥923	≥11600	≥1114	≥14000	318-342	40-43
N45M	1340-1390	13400-13900	≥876	≥11000	≥1114	≥14000	342-366	43-46
N48M	1360-1420	13600-14200	≥876	≥11000	≥1114	≥14000	366-390	46-49
N35H	1180-1230	11800-12300	≥868	≥10900	≥1353	≥17000	263-287	33-36	≤120
N38H	1220-1280	12200-12800	≥899	≥11300	≥1353	≥17000	287-310	36-39
N40H	1260-1310	12600-13100	≥923	≥11600	≥1353	≥17000	302-326	38-41
N42H	1280-1340	12800-13400	≥923	≥11600	≥1353	≥17000	318-342	40-43
N45H	1330-1390	13300-13900	≥923	≥11600	≥1353	≥17000	342-366	43-46
N48H	1360-1420	13600-14200	≥923	≥11600	≥1274	≥16000	366-390	46-49
N33SH	1140-1190	11400-11900	≥836	≥10500	≥1592	≥20000	247-270	31-34	≤150
N35SH	1180-1230	11800-12300	≥868	≥10900	≥1592	≥20000	263-287	33-36
N38SH	1220-1280	12200-12800	≥899	≥11300	≥1592	≥20000	287-310	36-39
N40SH	1260-1310	12600-13100	≥923	≥11600	≥1592	≥20000	302-326	38-41
N42SH	1280-1340	12800-13400	≥923	≥11600	≥1592	≥20000	318-342	40-43
N45SH	1330-1390	13300-13900	≥923	≥11600	≥1592	≥20000	342-366	43-46
N28UH	1030-1090	10300-10900	≥780	≥9800	≥1990	≥25000	207-231	26-29	≤180
N30UH	1090-1140	10900-11400	≥812	≥10200	≥1990	≥25000	223-247	28-31
N33UH	1130-1170	11300-11700	≥852	≥10700	≥1990	≥25000	247-263	31-33
N35UH	1180-1220	11800-12200	≥868	≥10900	≥1990	≥25000	263-287	33-36
N38UH	1220-1270	12200-12700	≥899	≥11300	≥1990	≥25000	287-310	36-39
N28EH	1030-1090	10300-10900	≥780	≥9800	≥2388	≥30000	207-231	26-29	≤200
N30EH	1080-1130	10800-11300	≥812	≥10200	≥2388	≥30000	223-247	28-31
N33EH	1130-1170	11300-11700	≥852	≥10700	≥2388	≥30000	247-263	31-33
N35EH	1180-1220	11800-12200	≥868	≥10900	≥2388	≥30000	263-287	33-36

Size:
Coating:
Magnetization:
More product:
Packing:
As the magnets have strong attraction and we will use the spacer to apart the magnets each other in case people will be hurt when take it out. Then, they will be packed in a white box of pieces each, several boxes to a carton.

+By Air: If the goods will be shipped by air, all the magnetic should be degaussed and we will use Iron sheet to shield.
+By Sea: If the goods are will be shipped by sea, we will place a pallet on the bottom of cartons.

Shipping:

Express (TNT, DHL, FedEx, UPS, etc), Air, Ocean.
a: The weight is under 40Kgs, we recommend to send them in shielding boxes to you by Express.
b: The weight is between 40Kgs-100Kgs, it can be sent by Express or Air.
c: The weight is over 100Kgs, we recommend to send them by Ocean.
FAQ
1. What is normal dimension of your products?
All magnets are customized.

2. What information do I need to supply when I have a inquiry?
If you have any inquiry, please kindly advise the following items:
a. Dimensions or drawing with tolerances.
b. Material grade or magnetic properties.
c. Magnetic direction. c. Magnetic direction.
d. Surface coating (If necessary).
e. Quantity and delivery terms.

3. How long will you give me the reply?
We will reply you in 24 hours.

4. How is the price?
As we believe the quality is the most important, we will provide the high quality magnet with reasonable price.

5. Could I get samples?
Yes, we have materials in stock to help you to get the samples as soon as we can.

6. How long will you deliver sample and bulk order?
If we have materials in our stock, we can send them within 3 days. If we don't have material in stock, production time for sample is 5-10 days, 15-25 days for bulk order.

7. How to pay you?
T/T, Western Union, PayPal.

We will try our best to satisfy you.
Our Service
1.Quick response: we commit to give you immediate detailed quotations with instructions and product material. And customize your required product in the shortest time.
2. High-quality products and favorable price: we reduce material costs through purchase large quantitative of raw materials and other measures from manufacturers directly, which ensure good quality and favorable price of our products, and we share our profit with customers.
3. Closed service: Big or long-term cooperation customers can become our VIP customers and enjoy more competitive prices and VIP service.
They love us:

1. Professional factory, 6 years gold supplier and Trade Assurance supplier in ******.

2. More than 10 years experiences for magnet and export, we can supply technical support and develop projects with customers together.

3. High quality products, we have advanced equipment and good quality system to ensure the products quality.

4. Competitive prices and quickly delivery.

5. Good service. Usually we will reply customer within 24 hours.

6. Various payment way.
