S13 50kVA80kVA100kVA125kVA 1000 kVA 10kv Oil Immersed Power Transformer

Product Description

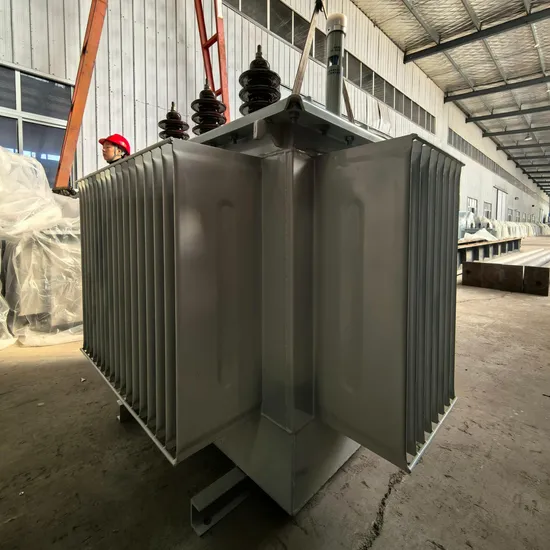

Product Description The S11/13-M series fully sealed oil immersed power transformers developed and produced by our company have the advantages of low loss, low noise, and high efficiency, which can achieve good energy-saving effects and reduce pollution. Compared with ordinary oil immersed transformers, fully sealed transformers eliminate oil storage tanks, and the change in oil volume is automatically adjusted and compensated by the elasticity of the corrugated sheets in the corrugated oil tank. The transformer is isolated from air to prevent and slow down oil degradation and insulation aging, enhance operational reliability, and operate normally without maintenance.
Product Features
1. The transformer iron core is made of imported high-quality cold-rolled silicon steel sheets stacked together, greatly reducing no-load losses and no-load currents. The iron core is tied to ensure its compactness and reduce noise.
2. The high and low voltage windings are made of oxygen free copper. For low voltage windings of 500kVA and below, a double-layer cylindrical structure is used. For windings of 630kVA and above, foil coils are used. For high voltage windings, a multi-layer cylindrical structure is used.
3. The transformer connection group adopts Dyn11 to reduce the impact of harmonics on the power grid and improve the quality of power supply.
4. The transformer is a fully sealed structure, which extends its service life, eliminates the need for lifting and maintenance.
5. The measured noise level is lower than the standard.
After normal transportation, this series of transformers can be installed with relevant components without the need for core inspection. After passing the acceptance test, they can be put into operation.
Usage conditions
1. Maximum ambient temperature:+40 ºC
2. Minimum ambient temperature: -25 ºC
Altitude:<1000m3
A. Maximum monthly average relative humidity: 90% (20 ºC) 5. Installation location: Installed in a place without fire, explosion hazard, serious pollution, chemical corrosion, and severe vibration, indoors or outdoors.
Execution standards
GB 1094.1 Power Transformers
GBTT 15164 Load Guide for Oil immersed Power Transformers
GB/T 6451 Technical Parameters and Requirements for Three phase Oil immersed Power Transformers
GB 2536 Transformer Oil
JB/T 3837 Method for Model Designation of Transformer Products
JB/T 501 Test Guidelines for Power Transformers
GB1094.3 Insulation level and insulation test of power transformers - Air gap for external insulation
DL/T572
Transformer Operation Regulations
The above standards shall be subject to the latest release; Other requirements of the equipment should be based on the latest national or professional standards.
If you have a demand for transformers with a capacity exceeding 2500kVA or customized requirements, please feel free to contact me.

Main product performance parameters of S13 10KV double winding series
Model	Rated capacity (KVA)	Connection symbol	Voltage combination(KV)			No load loss (W)	Load loss(W)		No load current(%)	Short circuit impedance(%)
			High voltage	tap range	Low voltage		Dy	Yy
S13-M-30	30	Yyn0 Dyn11	10 6.3 6	±5% ±2×2.5%	0.4	80	630	600	1.5	4.0
S13-M-50	50					100	910	870	1.3
S13-M-63	63					110	1090	1040	1.2
S13-M-80	80					130	1310	1250	1.2
S13-M-100	100					150	1580	1500	1.1
S13-M-125	125					170	1890	1800	1.1
S13-M-160	160					200	2310	2200	1.0
S13-M-200	200					240	2730	2600	1.0
S13-M-250	250					290	3200	3050	0.9
S13-M-315	315					340	3830	3650	0.9
S13-M-400	400					410	4520	4300	0.8
S13-M-500	500					480	5410	5150	0.8
S13-M-630	630					570	6200	6200	0.6	4.5
S13-M-800	800					700	7500	7500	0.6
S13-M-1000	1000					830	10300	10300	0.6
S13-M-1250	1250					970	12000	12000	0.5
S13-M-1600	1600					1170	14500	14500	0.5

Main product performance parameters of S13 10KV double winding series
Model	Rated capacity	Connection symbol	Voltage combination(KV)			No load loss	Load loss(W)	No load current(%)	Short circuit impedance(%)
	(KVA)		High voltage	tap range	Low voltage	(W)
S13-M-2000	2000	Yyn0 or Dyn11	6 6.3 10 10.5 11	±5% or ±2×2.5%	0.4	1940	18300	0.4	5.0
S13-M-2500	2500					2290	21200	0.4	5.0

Insulation level
Voltage level kV	Maximum operating voltage of kV	Rated short-time power frequency withstand voltage kV(Effective value)/1min	Rated lightning impulse withstand voltage kV (peak)
			full wave	Truncated wave
0.4	0.46	5	75	85
10	12	35
20	23	55	125	140
