PA Thermak Break Strips Extrusion Mould Steel Tools for Forming Nylon Profiles and Bars

PA Thermak Break Strips Extrusion Mould Steel Tools for Forming Nylon Profiles and Bars

US$4,780.00-5,300.00 1 Piece (MOQ)

Basic Info.

Model NO.
PW-HK28
Material
Mold Steel
Molding Material
Metal Mould
Extrusion
Extrusion
Extrusion Mould
Hollow Mould
Nose Application
Profile Molding
Outlet
Direct Feeding
Pressure of Nose
High Pressure
Metal Mould
Die Casting
After-sales Service
Engineers Available to Service Overseas
Weight
60-100kg
Runner
Cold Runner
Customized
Customized
Process Combination Type
Compound Die
Cooling System
Water Cooling
Installation
Fixed
Transport Package
Plywood Case
Specification
Hot Plate and Cold Plate
Trademark
Polywell
Origin
China
HS Code
8477900000
Production Capacity
80 Sets Per Month

Product Description

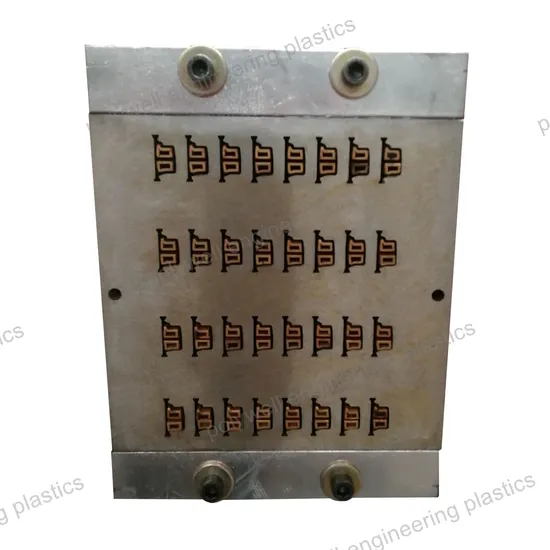

PA Thermak Break Strips Extrusion Mould Tools for Forming Nylon Profiles and Bars
Polywell mould can meet the needs of the market and customer.
Polywell has its own design and development of nylon insulation strip automatic extrusion production line with high stability, high yield, high adaptability.
Extrusion molding (also known as plastification extruding) is a process that the stack of molten substance in mold is pushed out to assume another form of other final product under pressure.
Mold decides the shape and detail sizes of the final product.
The utility model mainly uses the special screw to make the polyamide and the glass fiber mixed good.
Heat insulating rubber strips are widely applied to the doors, windows and curtain wall aluminum sheets through the different sections of the die.

Product Specifications:
Product Name Mould for thermal barrier strips extrusion machine
Brand Polywell
Size Various types
Mold material Mold steel
Product PA66 thermal barrier strips
Runner Cold/Hot runner
Mould cavity Multi-cavity
Mould weight 60kg-100kg
Service Provide complete set of production press and technology and best after sale service.
Lead time 28-35 working days
Package Plywood case

Detail introduction:
PA66 granules and fiber glass are dired and get into the barrel through the hopper. Screw and pellets contact with the rotation of the screw is forced to promote the spiral groove die direction.
Because the screw barrel gap is small, the granule material is hot body under great pressure in the forward process, it is plasticizied to nylon thermosol through the high temperature of the electric heating ring body. Nylon plastic and plastic compression heating hot melt by extrusion molding, after traction, cutting or rolling become adiabatic adhesive tape products.
The host adopts imported inverter and traction, speed stability, ensure the main, auxiliary synchronous speed.
We use German technology to make the mould, so the surface of thermal insulation strips are beautiful, accurate shape and with high strength.
We use imported Japanese RKC temperature control table, so that the accuracy of the temperature can be controled in ±2 degrees.
Our Advantages:
1. Our engineers follow the molds' production every week to make sure all of them are in schedule.
2. After trial production, we will check the samples to make sure everything are right.
3. We will send the sample and dimension report to our clients for approval.
4. After everything is ok, we will do final inspection on the molds and products before shipment.
Our Company: Package & Delivery
We usually put each mold into a plywood case to make sure the mold is safe during the whole transport process.
The weight of each mold is around 60-100kg. It depends on the mold sizes.
We usually need 28-35 working days to produce a mold. After that, we will do the mold test to make sure both the mold and the polyamide strips produced by this mold are qualified.
Please feel free to contact us if you have any questions.
Address:Jinfeng Town, Zhangjiagang City, Jiangsu Province, China
