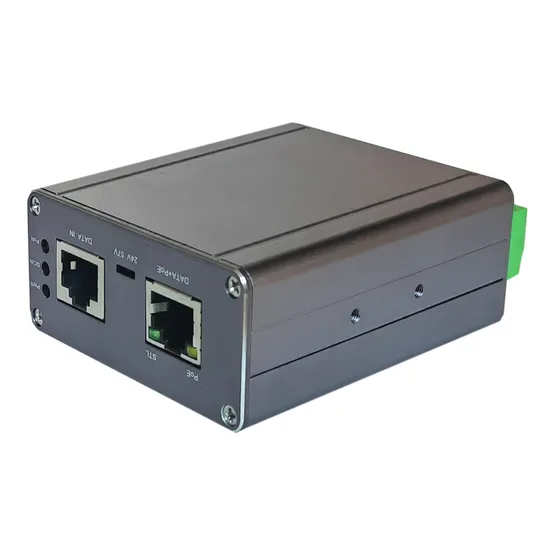

Industrial Gigabit IEEE 802.3bt Poe+/Poe++ 90W DIN-Rail Poe Injector with DC 12V~48V Input
| US$25.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
EC550-B(BT8)
Color
Silver
Type
ODM
Internal Structure
Linear Model
Power Source
Half-Bridge Type
Connection
Plug In
Brand
OEM
Transport Package
Box
Specification
80*70*32mm
Trademark
OEM
Origin
China
HS Code
8517623200
Production Capacity
1000pics/Month
Product Description
Product Description: product descriptionEC550 series is a 1G/2.5Gbps unmanaged Ethernet booster power supply product specially developed for high-power PoE application scenarios. This series of products comes standard with two 10/100/1000/2500Mbps adaptive RJ45 ports, which makes the products flexible and convenient to use. Using DIN installation mode, with high reliability devices and hardware structure design, the product is more suitable for industrial scenes with harsh use environment and high reliability requirements
| Specification Parameter: specification parameter | ||
| product model (Product Model) | HV-EC350-B(BT8) | HV-EC550-A(BT8) |
| hardware configuration (Hardware Configuration) | ||
interface type (Interface Type) | 1 x 10/100/1000Mbps RJ45 Data IN 1 x 10/100/1000Mbps RJ45 PoE OUT 1 DC IN(3P) power supply terminal 1 DC2.0 power interface | 1 x 10/100/1000/2500Mbps RJ45 Data IN 1 x 10/100/1000/2500Mbps RJ45 PoE OUT 1 DC IN(3P) power supply terminal 1 DC2.0 power interface |
| switch (DIP Switch) | 1 output voltage adjustment switch | |
| Power input (DC IN) | DC2.0: 36-48V/5A(MAX) 5.08mm_3P Terminal: 12-48V/10A(MAX) | |
| PoE standard (PoE Standard) | IEEE802.3bt | |
| Class8 | ||
| PoE output power (PoE Power) | MAX:90W(IEEE802.3bt) | |
| PoE pin definition (PoE PIN) | PIN: 1278+,3456- | |
| PoE output (PoE Output) | IEEE802.3bt: 54Vdc | |
| IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; | |
| network protocol (Network Protocol) | IEEE802.3u 100Base-TX; IEEE802.3x; | IEEE802.3u 100Base-TX; IEEE802.3x; |
| IEEE802.3ab 1000Base-T; | IEEE802.3ab 1000Base-T; | |
| IEEE802.3bz 2.5GBase-T; | ||
Led light (LED Indicators) | PWR(Power): power indicator. | |
| Poe: Poe on indicator light | ||
| Din: DC 2.0 power supply access indicator light | ||
| La: 4-wire PoE power supply indicator lamp | ||
| Lb: 4-wire PoE power supply indicator | ||
| transmission distance (Transmission Distance) | Poe: 100/1000/2500mbps 0 ~ 100m (CAT5e,CAT6) | |
| PoE:10Mbps 0~250 meters (CAT5e,CAT6) | ||
| transmission medium (Transmission Medium) | 10base-t: cat 3, 4, 5 and above twisted pair | 10base-t: cat 3, 4, 5 and above twisted pair |
| 100base-tx, 1000base-t: cat 5, 5e, 6 and above twisted pair. | 100base-tx, 1000base-t: cat 5, 5e, 6 and above twisted pair. | |
| 2.5GBase-T: Cat5e,6 and above twisted pair | ||
| Working temperature (Operating Temperature) | -40ºC~+75ºC | |
| Storage/transport temperature (Storage Temperature) | -40ºC~+85ºC | |
| relative humidity (Relative Humidity) | 5%~95% non-condensing. | |
| Heat dissipation mode (Thermal Methods) | No fan design, natural heat dissipation | |
| Mean Time Between Failure (MTBF) | 100000h | |
| the protection grades (Protect Garde) | IP40 | |
EMC | Surge for power surge protection: IEC 61000-4-54 kV/2 kV (8/20 US) | |
| Surge for surge protection of network port: IEC 61000-4-54 kV/2 kV (10/700 US) | ||
| Anti-static ESD: IEC 61000-4-28K/15K | ||
| product size (Product Size) | 80*70*32mm | |
| Packing size (Package Size) | 120*100*59mm | |
| Installation mode (Installation Method) | DIN installation or wall-mounted installation | |
| net weight (Weight) | 0.3KG | |
| attachment (Enclosure) | Equipment, certificate, instruction manual | |
| Power adapter (non-standard: optional purchase as required) | ||
| Packing mode (Package info) | 80PCS/CTN,510*430*320mm,25kgs/CTN | |
| Warranty period (Warranty) | 1 year | |
| Product Selection: product selection | ||
HV-EC350-B(BT8) | PoE power supply, two 10/100/1000Mbps RJ45 ports, 54V PoE output, maximum total output power of 90W (Port 1 IEEE 802.3BT Class 8max: 90W), DC: 12V-51V input, wide temperature (-20-65 C), DIN rail/wall mounting; | |
HV-EC550-A(BT8) | PoE power supply, two 10/100/1000/2500Mbps RJ45 ports, 54V PoE output, maximum total output power of 90W (Port 1 IEEE 802.3BT Class 8max: 90W), DC: 12V-51V input, wide temperature (-20-65 C), DIN rail/wall mounting; | |
| Remarks: AC-to-DC external power supply is excluded by default; Optional; | ||
