Basic Info.
Structure
Bench Drilling Machine
Automatic Grade
Automatic
Certification
ISO 9001, SGS
Thickness of Material Stacking(mm)
100mm
Number of Clamping Cylinders 12
Clamping Force7.5kN/1PC.
Spindle Speed (Frequency Conversion Step
100-560rpm
Work Feed Speed
20-200mm/Min(Hydraulic Speed Regulation)
Spindle Feed Stroke
190mm
Spindle Motor Power
5.5kw
Transport Package
Export Standerd
Specification
4210*2605*2850mm
Production Capacity
Other
Product Description

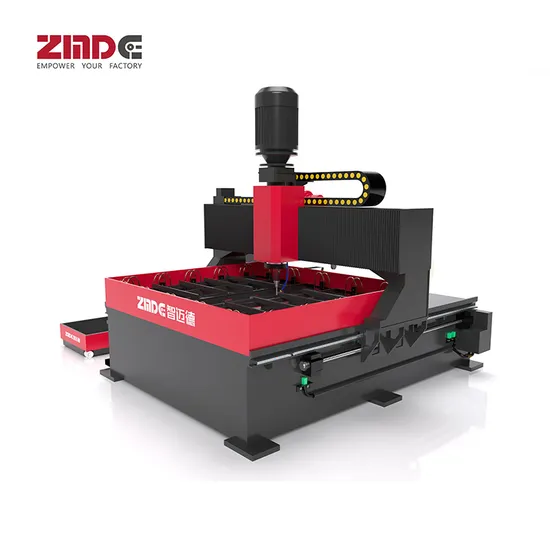

ZMDE Precision CNC Plate Drilling Equipment for Steel Automatic Steel Structure Tube I H Beam Cnc Drilling Machine
>Maximize Savings with Cost-effective Equipment <
1. Crafted from robust materials, our equipment boasts a low failure rate, significantly reducing maintenance costs. Each component-ball screw, linear guide vice, hydraulic parts, electrical parts, servo motor, frequency converter-is sourced from industry-renowned brands.
2. Enjoy the convenience of a CRT display with automatic chip removal, which cuts down on manual cleaning time and associated costs.
3. Benefit from the high precision of our equipment, ensuring a high qualification rate of workpieces and effectively lowering consumable costs.
>Effortless Operation and Exceptional Productivity <
1. The intuitive human-machine interface provides a clear, visual experience, automatically generating machining programs.
2. Our system is controlled by CNC and PLC, guaranteeing precise positioning every time.
3. Workpieces are securely clamped by hydraulic clamps, with operators managing them via a convenient, labor-saving foot switch.
4. The table is equipped with 12 fast hydraulic clamps, allowing for the simultaneous clamping of four workpiece groups.
5. Small workpieces can be clamped at the four corners of the table, drastically reducing production preparation time and boosting efficiency.
6. The ability to clamp small workpieces at the table's corners further shortens the production preparation period and enhances efficiency.
> Uncompromising Quality and Versatility <
1. Essential components like the gantry, column, and table are made from solid materials, with the main machine weighing up to 6300kg.
2. Applicable across various industries, making it an indispensable tool for plate processing.
3. Accommodates a wide range of drilling diameters, from 12mm to 50mm.
> Optimized for Diverse Production Scenarios <
1. Ideal for continuous production of multiple batches of single flat-type workpieces.
2. Supports small batch production of multi-species workpieces, capable of processing different plate shapes like rectangular, round flange, or polygonal. Simultaneously handles two or four different plate specifications.
3. Efficiently handles stacked production of thinner sheets, accommodating stacks up to 100mm thick.
4. Automated software processes determine start and end points for drilling, capable of producing through-holes, blind holes, step holes, and chamfers.
> Advanced Production Process Automation <
1. Integrated line board design ensures a high degree of automation, with automatic positioning based on the drilling program.
2. Automatically adjusts the optimal feeding volume according to varying hole diameters.
3. Facilitates the continuous and automatic processing of large hole diameters, achieving one-time processing and molding.
4. Equipped with an automatic chip removal function for seamless operation.
Technical Parameters
Model | ZMD-Z2016 |
Workpiece Size | Thickness of material stacking(mm) | 100 |
Length×Widthhhhh (mm) | 2000×1600 One piece |
1600×1000 two pieces |
1000×800 Four pieces |
Workpiece clamping | Number of clamping cylinders 12 | Clamping force7.5Kn/1pc. |
Vertical hydraulic type Drilling power head | Number of spindles | 1piece |
Spindle taper hole | morse.taper 5#,4# |
Maximum drilling diameter | 50mm |
Spindle speed (frequency conversion stepless) | 100-560rpm |
Work feed speed | 20-200mm/min(hydraulic speed regulation) |
Spindle feed stroke | 190mm |
Spindle motor power | 5.5KW |
Gantry longitudinal movement (X-axis) | Maximum stroke | 2000mm |
Traveling speed | 0-5m/min |
Servo motor power | 1KW |
Power head lateral movement (Y-axis) | Maximum stroke | 1600mm |
Traveling speed | 0-5m/min |
Servo motor power | 1KW |
Hydraulic system | System pressure/flow | 6MPa/30L/min |
Hydraulic pump motor power | 2.2KW |
Oil tank capacity | 100L |
Chip removal and cooling | Form of chip conveyor | Chain plate type |
Number of chip conveyor | 1 |
Chip discharge speed | 1m/min |
Power of chip removal motor | 0.75KW |
Cooling pump motor power | 0.75KW |
Liquid system pressure | 5MPa |
CNC System | Upper-computer software | ZMDE |
Number of numerical control axes | 2 |
Total installed power | 11KW |
Machine Outline Dimension | L×W×H | 4210×2605×2850mm |
Weight | Main machine | Approx. 4300Kg |
Chip removal system | Approx. 500Kg |
Company Profile
Founded in 2013, ZMDE Co., Ltd. stands at the forefront of innovation as a high-tech enterprise specializing in the research, development, manufacturing, sales, and service of intelligent equipment for assembly building. Recognized as a national 'specialization, speciality, and new' small giant, our core industry focuses on the intelligent industrial mother machines for steel structure assembly buildings and industry IoT solutions.Our advanced intelligent control systems are built for dual plate operations, ensuring superior precision and efficiency.
Our headquarters is strategically situated in Lingang New Area, Pudong New District, Shanghai, and features the state-of-the-art Research Institute of Artificial Intelligence for Assembled Buildings. Spanning 32,000 square meters, this facility is dedicated to overseeing company management and spearheading the research and development of high-end core technologies in Artificial Intelligence for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT).
Our Shandong base, located in Weicheng District, Weifang City, excels in the research, development, and production of intelligent industrial mother machines specifically designed for steel beams in assembled buildings.Additionally, our Shandong base is adept at manufacturing intelligent industrial mother machines for the walls of assembled buildings, ensuring a comprehensive approach to modern construction needs.
FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.
2.Q: What are the payment terms?
A: L/C; T/T.
3.Q: How long is the delivery time?
A: 30 Days.
4.Q:How long is the warranty period?
A: 1 Year.(Original Manufacturers. equipment parts can be achieved lifelong maintenance)
