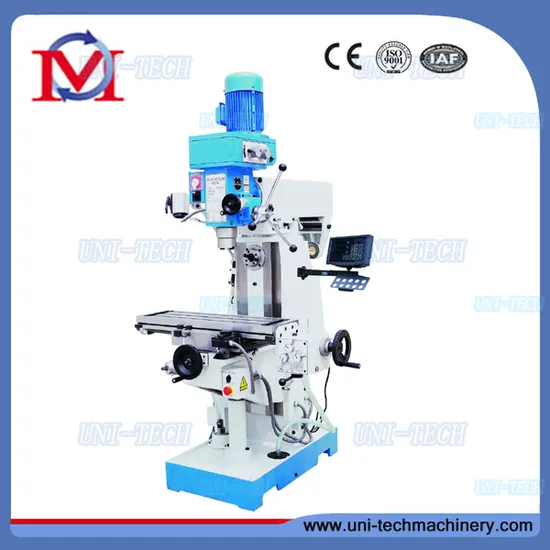

Universal Small Drilling and Milling Machine with Rotary Worktable (ZX7550CW)

Product Description

Universal small Drilling and Milling Machine with Rotary Worktable(ZX7550CW)
Main feature:
1. Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. With V-belt spindle drive and gear spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
Description:
ZX7550CW KNEE-TYPE MILLING AND DRILLING MACHINE is a multifunction drilling and milling machine, bed rigidity, movement stability, high accuracy.
Guide by quenching with good wear ability. Vertical milling, horizontal milling adopts gear drive, transmission of large torque. Longitudinal can be moved with machinery power feeder, reduce labor intensity and improve the machining accuracy and surface finish.
Guide by quenching with good wear ability. Milling head mounted on the front sliding arm, it can move back and forth, not only in the vertical plane of rotation about 45 degrees, but also turn 360 degrees in the bed with a good universal nature of the processing.
If installing appropriate attachments, this machine has many processing function, such as milling, drilling, boring, plane abrasion, etc. Operation expediently, performance reliably, applying to metal finishing and maintain of kinds of companys, especially tools, moulds, fastener processing.
Specification:

Milling and drilling machine	ZX7550	ZX7550C	ZX7550W	ZX7550CW
Max.drilling dia (mm)	50	50	50	50
Max.horizontal milling dia (mm)	100	100	100	100
Max.vertical milling dia (mm)	25	25	25	25
Max.boring dia (mm)	120	120	120	120
Max.tapping dia	M16	M16	M16(Vertical)	M16
Distance.spindle to table surface (mm)	140-490	90-490	80-460	90-490
Spindle speeds range (r.p.m)	230-1825	115-1750	230-1825(Vertical) 80-1300(horizontal)	(Vertical)115-1750 (Horizontal)60-1350
Spindle travel	120	120	120	120
Table size (mm)	800×240	800×240	800x240	800×240
Table travel (mm)	400×230	400×230	400x230	400×230
Overall dimensions (mm)	1100×1100×2080	1100×1100×2080	1280×1100×2080	1280×1100×2080
Motor (Kw)	0.85/1.5	0.85/1.5	0.85/1.5(Vertical) 1.1(horizontal)	( Vertical)0.85/ 1.5 (horizontal)2.2
N.W/G.W (Kg)	610/770	610/770	700/880	850/1000

Standard accessories:
Horizontal Cutter bar, Draw bar, worklight , cooling pump, Milling chuck, drill chuck, oil collecting plate,
Operation manual
Optional accessories:
Universal dividing head
Rotary table
Machine vice
Slotting head
Milling chuck set
DRO
Clamping kits
Boring head
Transimission box
