US$33,000.00-40,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Feature
Feeding, Punching, Aligning,Closing
Hole Shape
on Your Request
Transport Package
Wood Case
Packaging & Delivery
Package Size
300.00cm * 130.00cm * 185.00cm
Package Gross Weight
2000.000kg
Product Description

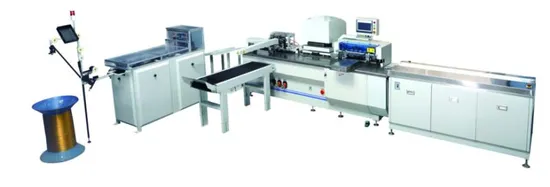

PBW-580 double wire punching and the binding inline machine is recognized as a stable, high-effective, easy-operation used for the majority of notebooks, sketchbooks, documents, desk and wall calendars, and other productions. It has multiple layers in the punching station and reliable jaws to transport papers. It could paper separate, punching, close, and collect all functions in one machine. And with the optional calendar hanger device, hardcover manual punch to improve the efficiency of customers.
Technical data:
Min. punching width | 72 mm |
Max. punching width | 580 mm |
Min. unpunched length | 105 mm |
Max. unpunched length | 800 mm |
Max. punching thickness | 16 mm |
Selectable punch pins (QSA) | Yes |
Binding size | 1/4" - 3/4" |
Stations: | Feeding, Punching, Aligning, Closing 4 Stations |
Punching Stoke: | 5 strokes and max 3mm per stroke |
Speed: | up to1800 books/hour |
Power: | 3PH 380V (other voltage on request) |
Dimension (L×W×H): | 6×1.3×1.6m |
Specification of the size:
Machine detail:
Workshop and customer visiting:
Loading
Exhibition
Common questions and answers:
1. Are your a factory or trading company?
We are a professional double wire products machines maker since 2008 and we are the audited supplier in MIC supervised by BV.
2. What about the warranty time?
12 months when you receive the machine. When you get the machine we could send the engineer to supply training service for the first time but the traffic fees and the accommodation arrangement shouble be on your side. Automatic inline machine training need for 3-4 days and semi-auto machine for 1-2 days.
3. How many molds attached to one machine?
One machine attaches one mold and if you need more sizes, you could make the order.
4.How about spare parts?
Most of the electrical parts and bearings we used are international brands such as SIEMENS. You could buy them in your local market. For the molds, we have stocks of normal double wire binding size molds. The special mold sizes need 10-15 days.
5. Do you have a dealer in my country?
For the hot selling countries, we have the dealers could supply training service for you and detail your could contact with us.
