China-Origin Concrete Placing Boom for Macpex

Product Description

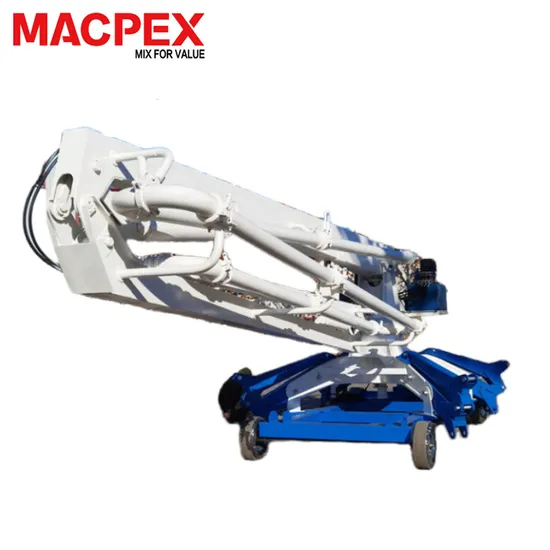

China-Origin Concrete Placing Boom for MACPEX
Discover our high-quality hydraulic concrete placing boom, designed and manufactured by SHANDONG MACPEX MACHINERY EQUIPMENT CO., LTD. Perfect for construction projects, our trailer-mounted boom offers efficient concrete placement. Trust MACPEX, your reliable supplier of construction machinery and equipment.

Item	Unit	Models and parameters
Model		MGY13	MG15	MG17	MG18	MG21	MG24	MG28	MG32
Max. placing radius	m	13	15	17	18	21	24	27.45	31.7
Big arm length	m	3.7	6	6.66	7.66	11	12	12.545	14.5
Big arm elevation	-	-2~84.4	0~70	0~65	0~65	0~65	0~65	0~65	0~65
Medium arm length	m	4.52	5	5.73	5.73	6.5	7.5	8.82	9.2
Medium arm elevation	-	0~180	0~180	0~180	0~180	0~180	0~180	0~180	0~180
Small arm length	m	4.78	4	4.61	4.61	3.5	4.5	6.085	8
Small arm elevation	-	0~180	0~180	0~180	0~180	0~180	0~180	0~180	0~180
Hose length	m	3	3	3	3	3	3	3	3
Concrete delivery pipe	mm	ø125×6	ø 125×6	ø 125×6	ø 125×6	ø 125×6	ø 125×6	ø 125×6	ø 125×6
Tail rotary radius	m	2.72	2.81	3.51	3.93	3.9	3.9	3.9	-
Total power	Kw	4	4	5.5	5.5	5.5	5.5	5.5	15
System pressure	Mpa	24	24	24	24	24	24	24	24
Rotary speed	r/min	0.3-0.8	0.3-0.8	0.3-0.8	0.3-0.8	0.3-0.8	0.3-0.8	0.3-0.8	0.3-0.8
Rotary range	/	0~360	0~360	0~360	0~360	0~360	0~360	0~360	0~360
Mast section	m	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3
Bare machine weight	kg	2500	3000	4800	5200	5900	6500	7000
Balance weight	kg	2×900	2×1100	2200	2×1100	3×2000	3×2000	4×2000	-
Control mode		Panel/ Wireless remote control

Product Detail:
Introducing the China-Origin Concrete Placing Boom for MACPEX by SHANDONG MACPEX MACHINERY EQUIPMENT CO., LTD. This hydraulic boom is perfect for construction projects, providing efficient concrete placement. Trust MACPEX for all your concrete machinery needs.
Certificate:
SHANDONG MACPEX MACHINERY EQUIPMENT CO., LTD. offers the China-Origin Concrete Placing Boom for MACPEX. This hydraulic boom is perfect for placing concrete in construction projects. Trust MACPEX, a leading supplier of construction machinery and equipment.
Introducing the China-Origin Concrete Placing Boom by MACPEX. This hydraulic boom is perfect for construction projects, offering precise concrete placement. Trust MACPEX, a leading supplier of construction machinery and equipment.
China-Origin Concrete Placing Boom for MACPEX
Discover our high-quality hydraulic concrete placing boom, designed and manufactured by SHANDONG MACPEX MACHINERY EQUIPMENT CO., LTD. As a leading construction machinery supplier, we offer reliable and efficient equipment for your concrete placement needs. Trust in our trailer-mounted boom for precise and convenient concrete placement on your construction site. Choose MACPEX for top-notch construction equipment.
Concrete Placing Boom for MACPEX
Experience efficient concrete placement with our hydraulic placing boom. As a leading construction machinery manufacturer and supplier, we offer high-quality equipment for your concrete projects. Trust MACPEX for reliable and durable solutions.
