HD H. 265 4CH 5CH Mobile DVR Adas Bsd

Product Description

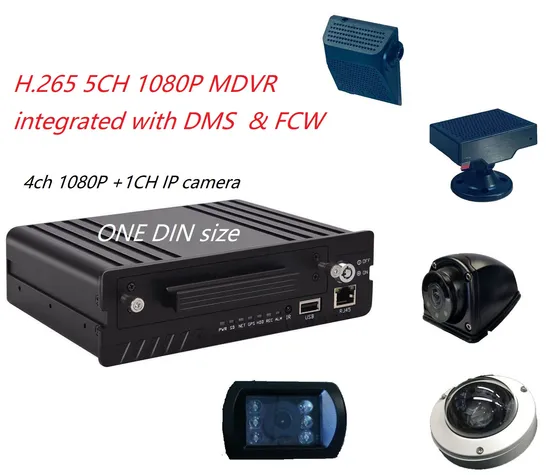

Product Description This is a professional H.265 mobile DVR , support 4G remotely monitoring .
Optional function --AI-pedestrian detection, ADAS function ,360 surround bird view
Product Parameters Key Features:
One DIN size , easy to install Buint in DSM,FCW algorithm hardware , cost down much than a separately ADAS 4G system. H.265 advanced audio/video compression technology; 4ch model support max 4ch AHD 1080P video input + 1ch IP 1080P camera input,4 ch audio input; use the built in 4G module to support ADAS function , save much cost Unique UPS Technology ensures the integrality of record when power failure occurs, even can for 8-10s; Exclusive pre-allocate File System protect data completeness,prevent HDD & SD Card fragment,ensure date stablely and completely; Built in G-sensor module for optional; Built in GPS/BD Extension module for optional; 3G/4G, GPS, Wi-Fi function for optional and switch automaticly; Central management software provided for optional; Local and remote PTZ control; Data redundant storage technology; Remote control ,remote download,remote playback; Support 6ch I/O alrm,over speed alarm,g-sensor alarm,video lose alarm, motion detection alarm,disk alarm; support USB port data backup and device update; HDD+SD Card Storage ( Support 2.5" HDD/SSD, max 128G SD Card); Support HDD heating functions,can work in harsh environment; Realize real time monitor through 3G/4G/wifi; Support Broadcast/Intercom/Text sent etc; Can help customer to add oil sensor/temperature sensor / POS / LED Advertisement Panel for optional; Support IOS/Android Phone Remote monitor

ITEM		DESCRIPTION
System		Linux
GUI		Setup system parameters through the remote controller.
Language		Chinese/English/Customized
Security		Administrator and user password supported
Main chip		HiSilicon Hi3520D-V400
Video and preview	Video input/output	Input: 4ch for 4 channal extra 1ch for IP camera Extra 1channel IP 1080P Output: 2 channel output; 1.0Vp-p, 75Ω
	OSD	Overlays letters… like date & time information and vehicle ID into video streaming
	Video Compression Criteria	H.265
	Preview	Support 1 ch 2ch 4ch 6ch 9ch preview.
	FPS	PAL: 25Frame/s NTSC:30Frame/s
	Resolution	Support 1080p,720P,D1 for optinal
	Video quality	1-8 levels, 1 is the highest level and 8 is the lowest level
	Video Bit Rate	D1: 800Kbps ~ 2Mbps, 8 quality level support, 720P:1Mbps-4Mbps, 8 quality level support 1080P:2Mbps-8Mbps, 8 quality level support
Audio	Audio input/output	4 channel input for 4ch model/8ch for 8ch model; 1 channel output
	Audio Streaming	G.726
Record	Storage	SD card: support max 128G, HDD: support 2.5 inch HDD support USB for data export
	File form/system	H.265/FAT32
	Recording Mode	Default auto recording after power on, support timed recording, alarm recording.
	Video Search	Search video by time, type (normal or alarm), target SD card
	Video playback	Support 1 to 4/8 channels playback simultaneously
		Support forward and backward at the speed of: x2, x4, x8, x16,x32, x64.
Alarm	Alarm input	Support up to 6 channels alarm input
	Alarm record	include the recording within 15 seconds ahead of the alarm starting, and the recording after alarm dynamically adjusted
	Alarm of storage	Support storage alarm
	Alarm function	The alarm of video loss
Communication interface		RS232, RS485,RJ45 10M/100M self-adaption Ethernet interface
Wireless transmission (optional)		Built-in 3/4G wireless transmission module for optional, WCDMA, CDMA2000, TD-SCDMA,TDDLTE,FDDLTE system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module for optional;
GPS (optional)		Support external GPS module for optional
Data remote transmission		Support 3G/4G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download;
PTZ control		Support PTZ control function by local remote controller or client software;
Parameter configuration		Support parameter configuration
G-sensor (optional)		Built-in G-sensor module for optional
Upgrade		Upgrade by USB
Power & consumption	Power management	1.ACC ON/OFF 2. System power off according to the delay time 3.Timing ON/OFF With overload protection, undervoltage protection, short protection,
	Power input	DC:+8V ~ +36V
	Power output	+12V@5*0.5A;
	Power consumption	The normal state<10W;Standby 0W
Working environment	Operating temperature	-25ºC ~ +70ºC
	Operating Humidity	10% to 95%
Dimensions		178(W) x50(H) x145(D) mm.
Weight		1.2-1.8KG
