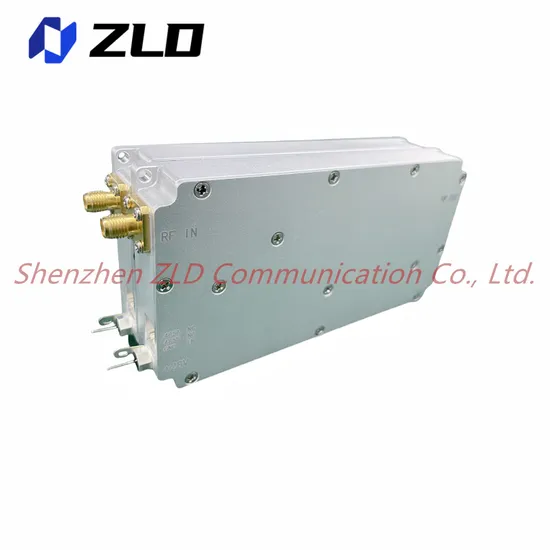

Custom 2100~2700MHz 30W RF PA Signal Power Amplifier Blocking Device Drone Jammer Module
Basic Info.
Model NO.
RFPA2400M-600-K30W
Support Network
GSM
Information content
Data
Certification
ISO
Condition
New
Product Name
Uav Drone Jamming Module
Keywords
Signal Blocking PA Power Amplifier
Gain
50dB
Power
100W
Supplier Type
OEM/ODM
Warranty
1 Year
Working Frequency
Customizable
Transport Package
Carton Packaging with Foam
Specification
150*79.5*24mm
Trademark
ZLD
Origin
China
Production Capacity
5000/Year
Product Description
Product Description2100~2700MHz 30 W Fpv Anti Drone Shielding Device RF Drone Jammer Module
Product Features
• 30W RF Signal Jammer Power Amplifier.
• 2100 ~ 2700MHz Operation Bandwidth.
• Comes with signal interference source.
• Power Amplifier with output short circuit or open circuit protection
Product Description
• The power amplifier module Applied to drone countermeasures and signal shielding.
• High efficiency power amplifier module, attached to an aluminum sub carrier.Product Parameters
Electrical Specifications
| Parameter | Specification | Remark |
| Frequency Range | 2100~2700MHz | |
| Saturated Output Power | 45±1dBm | |
| Gain Flatness | ≤3.0dB | |
| Gain Stability | ±1.5dBm | at -25ºC~+55ºC |
| Power stability | ±1.5dBm | at -25ºC~+55ºC |
| Output VSWR | ≤1.5 | |
| DC Input Voltage | DC28±1.0V | |
| Current Consumption | 4.5 A typ;5.5 A max. | @ Pout=50W CW, 50 ohms load |
| Power supply port | Through-hole capacitor | |
| Working Temperature | -25~+55ºC | |
| Monitoring interface | PHD2.0MM-2*3PIN Socket: PIN1-RS485A;PIN2-RS485B;PIN3-GND; PIN4,PIN5-NC, PIN6-Enable switch,Enable = 0V, Disable = 5V. | |
| LTD pilot lamp | POWER:Power Supply pilot lamp; RUN:Run pilot lamp; ALARM:Fault alarm pilot lamp. | |
| RF output connector | SMA-KFD | |
| Dimension | 150×79.5×24mm | |
| Installation Dimension | 144×73.5×24mm | |
| Screw Size | 4-Ø3.2mm | |
| weight | 0.4kg | |
Product Dimensions
