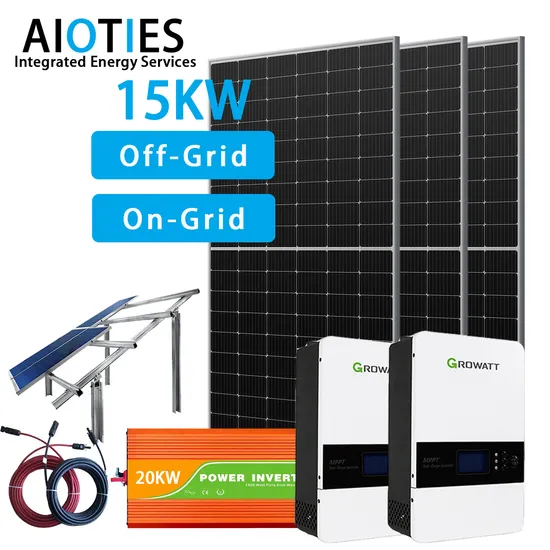

Pay 8kw 10kw 15kw 20kw Wholesale off Grid on Gird Tied Hybrid Home Residential Photovoltaic Renewable Solar Power Station System

Pay 8kw 10kw 15kw 20kw Wholesale off Grid on Gird Tied Hybrid Home Residential Photovoltaic Renewable Solar Power Station System

US$289.00-6,850.00 1 Set (MOQ)

Basic Info.

Condition
New
Certification
CE
Application
Home, Industrial, Commercial
Specification
Normal, depends
Solar Panel Typetype
Monocrystalline Silicon, Polycrystalline Silicon
Controller Type
MPPT
Load Power (W)
20kw
Output Frequency
20kw
Certificate
CE RoHS
Load
Household Appliances
Protection
Short Circuit Protection
Inverter
on Grid
Mounting Type
Ground Mounting, Roof Mounting, Carport Mounting
Output Voltage (V)
AC 110V 220V
Product Name
20kw on Grid Solar System
Type
on-Grid System
Transport Package
Carton
Trademark
AIOTIES
Origin
China
HS Code
8541409000
Production Capacity
10000PCS/Month

Packaging & Delivery

Package Size
223.00cm * 117.00cm * 30.00cm
Package Gross Weight
50.000kg

Product Description

SystemModelDescriptionQtyUnit
20KW Solar power systemXD-20KWPV solar panel 550W
Working Voltage(Vmp):42.28V
Working Current(Imp):13.01A Weight:27.5kg
Dimension: 2279*1134*35mm
36pcs
20KW Three phase Solar Grid Tied Inverter
Efficiency: Max. 98.6%
Interfaces:RS485/WIFI
Nominal AC voltage(range*):280V~490V(Adj)
Working Temp: -25ºC~60ºC
IP65 protection degree
1set
DC Cables Area(mm2):1*4mm(Red+Black),
PV1-F-1*4
TUV certificates
200meters
Tile roof:Aluminium Type
Wind Load Resistanc:45m/s
Snow Load:2KN/m2
1set
MC4 Connector
High current and voltage carrying:30A,1000DC
Low transition resistance,IP67
Excellent plastic material,94-V0,
wide temperature range:-40ºC-90ºC ,
weather and UV resistant for long-time outdoor application approved by TUV
1pairs
Package:Wooden case protect goods while shipping1set
An off-grid solar energy system is not connected to the utility grid, whereas an on-grid (aka grid-tied) solar energy system is connected to the utility grid. Whether off-grid or on-grid system will determine your access to electricity, what equipment is needed for excess production, what happens when the grid goes down, and how you're billed for electricity.
Load Time of Off-Gird System for your reference:
Specification of Off-Grid SystemLoad
1KW50W Fan- 11 Hours
200W Computer- 2.5 Hours
60W TV- 9 Hours
1.5KW50W Fan- 15 Hours
200W Computer- 3.5 Hours
60W TV- 12.5 Hours
2KW50W Fan- 20 Hours
200W Computer- 4.5 Hours
60W TV- 16.5 Hours
3KW50W Fan- 30 Hours
200W Computer- 7.5 Hours
60W TV- 27 Hours
4KW50W Fan- 63 Hours
200W Computer- 12 Hours
60W TV- 48 Hours
2KW Air Conditioner- 1 Hour
5KW50W Fan- 92 Hours
200W Computer- 16 Hours
60W TV- 68 Hours
2KW Air Conditioner- 1.5 Hour

MY Solar Technology Co., LTD. (MYPVTECH) is a major member of MY Solar Group (MY Solar),founded in 2010. MY SOLAR is a professional manufacturer engaged in the research & development, manufacturing & sales business of solar modules, inverters, energy storage batteries, solar power systems and supporting products for solar power stations.
MY Solar is deeply trusted by new and old professional customers around the world for its new energy products with reasonable design, sophisticated technology, rich categories and reliable quality, as well as professional, high-efficiency and refined service characteristics.
The annual production and sales of new energy products include: 3GW solar modules, 250,000 solar systems and 1.2GW solar power plant equipment. Customers are located in Europe, America, Asia, Africa and other regions. MY Solar has reached brand, product and channel cooperation with many well-known manufacturers in the industry, providing stable OEM and ODM services for relevant well-known manufacturers, and providing more cost-effective Tier1 brand product sales services for MY SOLAR customers simultaneously.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:What are the advantages of your company?
A:We are a factory, and we also cooperate with other brands,such as Longi,JA solar,Jinko,Trina,Canadian Solar,GCL,SUNTECH,Yingli etc., to provide customers with better prices and more choices.
Q:May I have a piece of sample to check the quality?
A:Welcome to place the testing order to check the quality or for testing.
Q:How about the delivery time?
A:15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
Q:Where is the port of loading?
A:Shanghai,Ningbo.
Q:Can you do OEM?
A:Yes.
