Small Vertical Injection Molding Machine Small Beer Machine Hardware Wiring and Wrapping Equipment

Small Vertical Injection Molding Machine Small Beer Machine Hardware Wiring and Wrapping Equipment

US$2,850.00-5,000.00 1 Set (MOQ)

Basic Info.

Model NO.
TC-250-P
Type
Tube Head Injection
Structure
Vertical
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Screw Diameter (mm)
26--30
Clamping Force (Ton)
25
Opening Force (Ton)
7
Opening Stroke (mm)
200
Electric Power (Kw)
4
Machine Specification(M)
1.5*1.05*2.35
Weight of Machine (Kg)
1100
After-Sales Service Provided
Video Technical Support, Free Spare Parts, Field I
Transport Package
Plywood Case Pcking
Specification
25T
Trademark
TianCheng
Origin
Dongguan Guangdong
HS Code
8477101090
Production Capacity
20000 Sets/Year

Packaging & Delivery

Package Size
150.00cm * 105.00cm * 235.00cm
Package Gross Weight
1100.000kg

Product Description

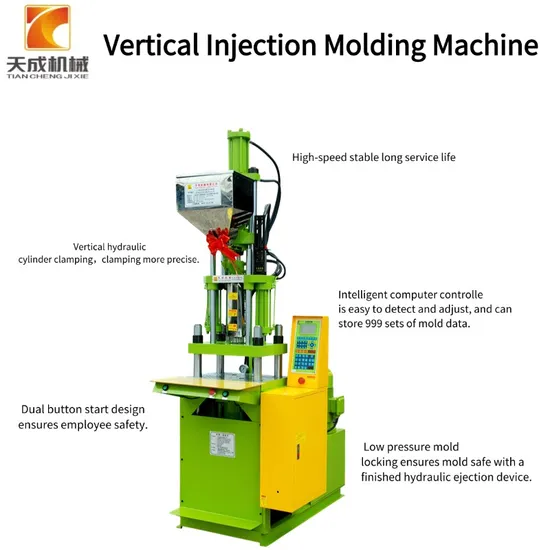

Small vertical injection molding machine Small beer machine Hardware wiring and wrapping equipment
Featuring a Tube Head Injection type, this machine guarantees precise and efficient injection molding for your plastic products. Whether you are working with PVC, PE, ABS, or PP materials, our machine delivers exceptional results.
Product Description
1.machine can be installed with a single mode skateboards,skateboard or alternating dual mode.
2.the low-pressure mold clamping device protection security.
3.the lower mold fixed on the movable mold,insert items for a good positioning of the resistance,and has finished top of the device.
4.temperature control.three-stage.fast,back pressure,screw speed steep-less adjustment for a variety of precision plastic parts molding.
5.the tube can lift,clean and convenient material head,fixed mold easier.
6.in-line screw type injection apparatus.
For choosing proper machine and saving your time, please read below questions carefully and send your inquiry soon , thanks .
1.what material you will use(PP PE or PET ?)
2.weight for plastic product
3.pictures for plastic product (including dimension for plastic product)
4.what output per hour do you need ?
5.Other requirements about the machine you want.
Product Parameters
Brand Name TianCheng Style VERTICAL
Condition New Model NO. TC-250-P
Screw Diameter (MM) 26--30 Max.Hydraulic Pressure(Kg/cm3) 140
Maximum injection Pressure (Kg/cm2) 1325--996 Pump Output (L/min) 30
Theoretical Shot Volume (Cm3) 55--74 Oil Tank Capacity (L) 116
Maximum Shot Weight (G/oz) 50/1.8--66/2.5 Cooling Water Consumption(L/H) 600-800
Injection Rate (Cm3/sec) 45--59 Electric Power (KW) 4
Screw Speed (R/Min) 0--150 Total capacitance (KW) 2
Screw Rate (MM) 106 Total Wattage (KW) 6
Nozzle Retraction Stroke (MM) 150 Machine Specification(M) 1.5*1.05*2.35
Clamping Force (Ton) 25 Weight of Machine (KG) 1100
Opening Force (Ton) 7 Plastic Processed PP, ABS, FRPP/PVC, PE, ABS/PP, PE/PP
Platen Size (MM) 500*340 After-sales Service Provided
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Distance Between Tie-Bere (MM) 370*200 After Warranty Service
Video technical support, Online support, Spare parts, Field maintenance and repair service
minimum Mold Thickness (MM) 60/120 Warranty 1 year
Opening Stroke (MM) 200 Applicable Industries Manufacturing Plant, Construction works , Energy & Mining, Other
Max-Distance opening mold (MM) 260/320
Max.Mold Size 350*280
Ejector Force (Ton) 1.3
Ejector Stoke (MM) 35

Packaging & Shipping
MULTILINGUAL
Our machine computer language could be programmed into: Chinese, English, Korean, Russian, Arabic, Polish, Thai, Turkish, Spanish and Vietnamese.
This will enable customers to easily use the machine.
Certifications
Successful transaction
Our Services
1. 24 hours services, the answers to any questions will be replied sooner.
2.Direct factory services, exclusive and unique solution can be provided to you by our professional engineers and staffs teams.
3.Materials suppliers offered ,the contact ways to different kinds of the materials and requirements of your products can be supported here, you can contact them by yourself .
4. After-sales services, engineers available to service machinery overseas; besides, the videos and document of solution will be sent at once.
5.The full and specific set of the subject for your project will be offered for you by free after we get touch with you.
6.12 Months Warranty and spare parts of machine will be offered within 3 days to avoid to waste your production time. FAQ
Q1: Are you a trading company or a manufacturer?
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What's your warranty for the machine?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.
Q3: What's your Delivery Time?
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
Q4: Why choose TianCheng Machinery Co., Ltd.?
A4: "Tiancheng Machinery, we sincere, you succeed!" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.
