PMC-53M-A DIN96 Class 0.5S Low-Cost Three-Phase Multifunction Energy Meter 7-Segment LCD RS-485

PMC-53M-A DIN96 Class 0.5S Low-Cost Three-Phase Multifunction Energy Meter 7-Segment LCD RS-485

US$180.00-220.00 1 Piece (MOQ)

Basic Info.

Model NO.
CET PMC-53M-A
Installation
CT Connected
Usage
Multi-Functional Energy Meter
Certification
CE, UL
Allow Customized Logo
Yes (MOQ > 1000)
Power Supply
95-250VAC/DC, ±10%
Input Voltage
400VLN/690VLL
Rated Current
5A/1A
Measuring Energy
0~99999999.99kWh
Accuracy
IEC 62053-22 Class 0.5s, ANSI C12.20 Class 0.2
Frequency
45Hz-65Hz
Transport Package
Paper Carton
Specification
96(W)x96(H)x88(D)
Trademark
CET
Origin
Guangdong, China
HS Code
9028301400
Production Capacity
214000 Pieces/Year

Product Description

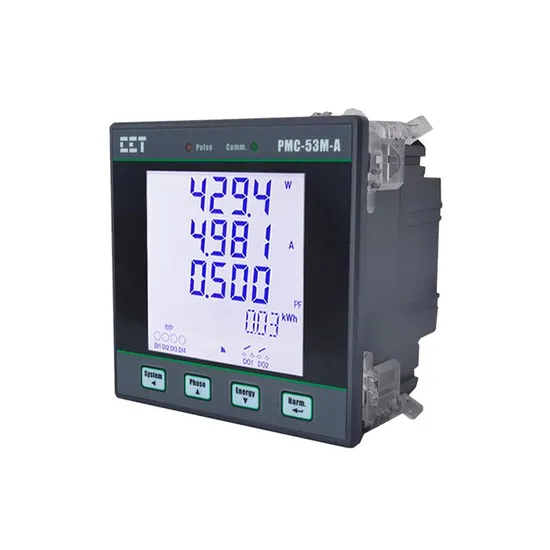

CET PMC-53M-A 3 Phase LCD RS-485 with Modbus RTU Support Digital Multifunction MeterThe PMC-53M-A Digital Multifunction Meter is CET's latest offer for the low-cost digital power/energy metering market. Housed in a standard DIN form factor measuring 96x96x88mm, it is perfectly suited for industrial, commercial and utility applications. The PMC-53M-A features quality construction, multifunction true RMS measurements and a large, backlit, 7-segmant LCD. Compliance with the IEC 62053-22 Class 0.5S Standard, it is a cost effective replacement for analog instrumentation that is capable of displaying 3-phase measurements at once. It optionally provides four Digital Inputs for status monitoring, two Relay Outputs for control and alarm applications. The standard RS-485 port and Modbus RTU protocol support makes the PMC-53M-A a smart metering component of an intelligent, multifunction monitoring solution for any Energy Management System.
Typical Application

• Industrial, Commercial and Utility Substation Metering • Building, Factory and Process Automation• Sub-metering and Cost Allocation• Energy Management and Power Quality Monitoring
Feature Summary

Ordering Information

Dimensions

Technical Specifications

Company Profile

CET has approximately 300 R&D Engineers and a 8000 m2 R&D Center that is strategically located around some of China's Tier 1 Universities in Wuhan.
CET's Production facility is located in Shenzhen's Yantian District, approximately 30 minutes by car from the headquarters, employing about 200 Production workers. CET is fully certified for RoHS manufacturing with an annual production capacity of 600,000 units.
