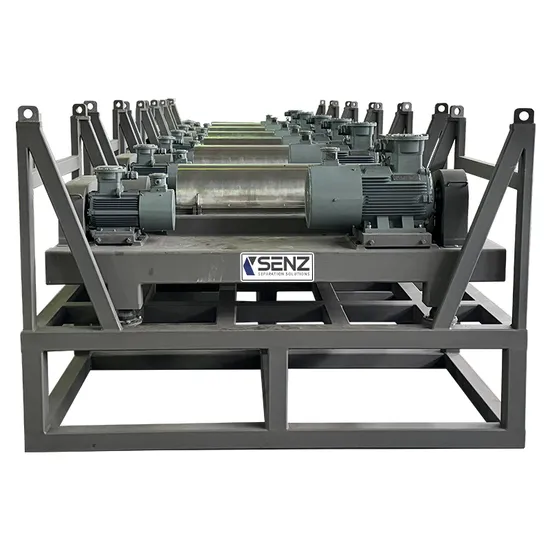

Industrial Oil Clarification Decanter Centrifuge for Coal Tar

Industrial Oil Clarification Decanter Centrifuge for Coal Tar

US$16,800.00 1 set (MOQ)

Basic Info.

Model NO.
LW
Type
Centrifuge
Object
Solid Liquid Separation
Separation Mode
Sedimentation Type
Operating Type
Continuous Type
Installation
Horizontal
Centrifuge Type
Horizontal Spiral Centrifuge
Pressure
Low Pressure
Condition
New
Material
SS304 or SS316 L
Certification
GMP/CE/ISO
Electronic Component
ABB or Siemens
Bearing
S-K-F, NSK as Optional
Transport Package
Wooden Cases
Specification
Based on model
Trademark
SHENZHOU
Origin
China
HS Code
8421192000
Production Capacity
500sets

Packaging & Delivery

Package Size
1500.00cm * 800.00cm * 1100.00cm
Package Gross Weight
1000.000kg

Product Description

Product Description
Industrial Oil Clarification Decanter Centrifuge for Coal Tar
Basic principles
For the auto decanter centrifuges stable performance sludge dewatering separator, the continuous feeding, separating and discharging can be realized as it rotates at its full speed.
It is characterized by compact structure, easy obturation, smooth running, low noises, large handling capacity, low energy consumption, high automation, small working strength, simple operation and easy maintenance, and wide applications.
Structure
Working principle
The drum and the spiral feeder rotate in the same direction but with a certain speed difference; the material is led into the feeding spiral inner cylinder via the feeding pipe and, after speeding pipe and, after speeding up, enters the drum; under the action of the centrifugal force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer; the solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and, after dehydration in the drying area, is discharged out of the machine.
The machine is capable of continuous feeding, separating, dehydrating and discharging under full-speed running.

Product Parameters


Model
Technical parameter motor power outline dimension(mm)
Machine weight
(KG)
(Diameter)mm
Rotation speed
rpm

Length mm

Separation factor
G

capacity
M3/h

Main motor KW

Vice motor
KW

Dimension:
L×D×H
LW250×1000 250 3600 1000 1813 1-3 7.5/11 4/5.5 2065×1050×800 1100
LW360×1200 360 3500 1200 2467 3-8 11/18.5 7.5/11 2600×1500×850 1900
LW360×1500 360 3500 1500 2062 3-8 11/18.5 7.5/11 2800×1400×850 2000
LW420×1750 420 3200 1750 2406 4-20 30/37 11/18.5 3120×1580×1050 3000
LW450×1600 450 3200 1600 2578 5-25 30/45 11/22 3780×1050×1180 3500
LW450×1800 450 3200 1800 2578 5-25 30/45 11/22 3985×1050×1180 3600
LW450×2000 450 3000 2000 2266 5─25 30/45 11/22 4320×1050×1180 3800
LW500×1800 500 3000 1800 2517 10-30 37/55 15/22 4200×1110×1200 4300
LW500×2100 500 3000 2100 2517 10-30 37/55 15/22 4500×1110×1200 4500
LW550×1800 550 3000 1800 2769 10-35 45/55 18.5/22 4380×1160×1230 4800
LW550×2200 550 2800 2200 2412 10-35 45/55 18.5/30 4780×1160×1230 5000
LW650×1750 650 2000 1750 1454 20-50 75/90 30/37 4576×1300×1250 6000
LW650×2000 650 2000 2000 1454 20-50 75/90 30/37 4900×1300×1250 6200
LW800×2000 800 1800 2000 1450 40-100 90/110 45/55 6052×1460×2100 10000
LW1000×2350 1000 1600 2350 1432 50-140 110/132 55/75 6850×1860×2300 12800

Our Advantages
1. Industrial design
Whole machine set design follows concept of advanced industrial design,ensures stability,functionality and safety of whole machine.Also effectively absorbs shear force of dynamic load during operation.

2. Effectively ease resonance during rotating of bi-rotor
When centrifuge works,there is no obvious first-order and two-order resonance regions within designed speed range,meanwhile ,whole vibration intensity of bearing seat is definited within 2mm/s-4mm/s.All of this eliminates extra fatigue damage to components and assembly units from high frequency vibration during operation and sudden vibration when shut down.

3. Thoroughly eliminate phenomenon of liquid ring stalling
Phenomenon of liquid ring stalling happens during heavy duty boot or shutdown process of complete set machine,especially for LW550 and even larger models,It would makes bounce or wild shake,causes extra impact fatigue damage to main bearings,screw bearings and inner parts of rotary bowl.Fortunately ,our engineers have solved this problem thoroughly.
4. Unique technique adopt in main component work-blanks
The manufacturing methods of main component work-blanks are adopt centrifugal casting technique and overall mould-making forging technique,thoroughly avoid risks such as inter-granular corrosion and relaxation of residual stress release in welding joint.

5. Main bearing electrical components selection
We use origin bearings of international first-line brands such as S-K-F,F-A-G and so on.Electrical components mainly adopt ABB and Siemens

6. Constant temperature detection
All fashioning components and assembly units are detected in constant temperature condition,to make sure of actual processing quality meets the requirements of designed precision accuracy.

7. Inter-change ability
Whole machine physical design and processing technique adopted in critical position,ensure all assembly units and bowls of the same centrifuge model interchangeable.It is not only easy to maintain ,but also greatly improve the reliability and safety of equipment.

8. Simplyand safely in bearing disassemblement
One layer of oil film is injected into contact surfaces between bearing and work-piece by high-
pressure,during disassemblement bearing from the machine.which would fundamentally eliminate friction within different parts.As a result,it would reduce 90% of pulling force and lower the risk of damage to high-precision parts when disassemble bearing.
9.Main bearing lubrication system
There are two kinds of lubrication system for specific product models :
A thin oil lubrication
* Oil pump offers an uninterruptedly power to ensure oil works circularly;
* Jet oil lubrication constantly clean and lubricate bearings and reduce temperature;
* Oil filter system ensure lubricant's cleanliness;
* Oil pressure energy storage system ensure lubrication pump offers an extra oil supply(the pressure is no less than 0.4Mpa) for 5-6 minutes,when power fails accidentally;
* Constant temperature system is available.
B grease lubrication
* Adopt a grease with properties of extreme pressure resistance ,oxidation resistance ,abrasion resistance,water scour
resistance,corrosion-proof and high temperature resistance.
* Optional automatic grease system fills grease on main bearing at designed hours and quantity.
10. Main bearing BH device (patent design)
There are two spare safe bearings at either end of main bearing.When machine works well,they keep certain clearance from bearing inside track to chief axis.When unexpected condition occurs,main bearing got damaged or circle center deviation causing an amplitude of vibration reaches to designed clearance,safe bearings begin to work as main bearing Meanwhile,computer automatic control system would get a feedback of abnormal vibration value on bearing position immediately then activates emergency shutdown and goes a smooth shut down.This system protects machine free from damaging and ensure production safety.

11. GSRL feeding device (potent design)
New design of internal spiral core tube has got following achieves.Without reducing centrifugal acceleration,shorten triangle belt's traction time,reduce disorder of swirling flow and extend separation time.Meanwhile increases inner working pressure of centrifuge,and restrains liquid foaming
More parts show of the decanter centrifuge:
After Sales Service
Provide free technical training, guidance and information of accessories.
Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
Once receive the customer complaints, we will response within 24 hours.
Free maintenance and replacement will be provided if defects result from quality failure of our product.
Our company will provide perfect after-sale services and technical support.

FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.
