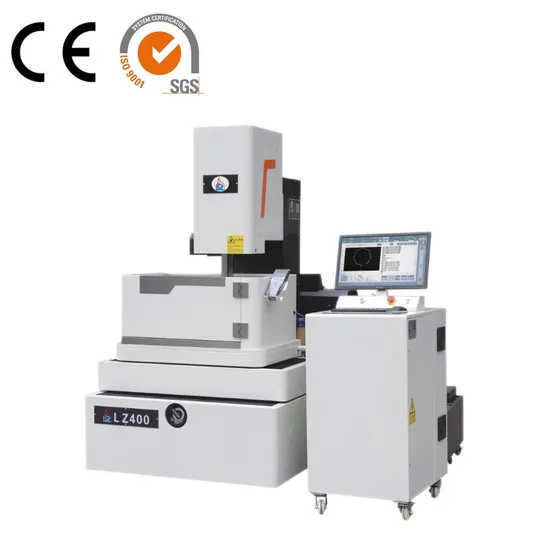

High Accuracy Molybdenum Wire Cut EDM Hot Sale CNC Cutting Machine Lz400

Product Description

Leading CNC Wire Cut EDM Manufacturer in China, Providing customer High End EDM machines with Fast cutting speed.
Customers spread in aerospace, electronic,aotomative, 3D printing, militay and defense,mold and tooling industry.
Products export to Europe, Russia, South America, Southeast Asia, Middle East, etc

Parameters	LZ400	LZ600
Worktable size(mm)	735x460	920x540
X/Y travel(mm)	400x320	600x450
Max workpiece size(mm)	800x500	1000x650
Max cutting thickness(mm)	300	300mm
Max load weight(kg)	500	500
U/V travel(mm)	36x36	36x36
Max cutting taper	±9°/100mm	±9°/100mm
Control type	X Y Servo,UVZ hybrid motor	X Y Servo,UVZ hybrid motor
Z transmission	Numerical control	Numerical control
Simultaneously Controlled axes	X Y U V-4 Axis	X Y U V-4 Axis
Wire diameter(mm)	Φ0.1-Φ0.2	Φ0.1-Φ0.2
Wire speed (m/s)	1-11.4	1-11.4
Reposition accuracy(mm)	≤±0.003	≤±0.003
Max cutting speed (mm2/min)	≥300	≥300
Roughness/Ra(um)	0.7-1.4	0.7-1.4
Water tank volume(L)	120	120
Filtering method	3 layer filtration	3 layer filtration
Power supply	Three phase 380V AC/50Hz	Three phase 380V AC/50Hz
Control system	Baqi system	Baqi system
Total power consumption(kw)	1.6	1.7
Max machining current(A)	10	10
Machine gross weight(kg)	1500	2000
Machine size(mm)	1180x1608x2080	1580x1900x2080
Top-bottom abnormity cutting	Yes	Yes

Remote control and digital management function:
Our machine integrates data management, information mornitoring and other digital functions. Users can operate monitoring software on the remote servicer in real time to monitor each machines working status, processing progress, to arrange work high efficiently.
Standard Configuration:
1) Win10 System with BQ control System(own R&D),dual CPU
2) HT300 Casting Machine Body, two times heat treatment, prevent deformation effectively.
3) 5 axis digital display and Z axis motorized freely drive up and down.
4) Pulse and anti-electrolytic power supply, to enhance cutting accuracy.
5) Automatic center finding, edge finding
6) XY servo motor , 5 axis digtal control
7)High precision linear guide way
8) High precision ball screw, to ensure high accuracy
9) Imported high precion bearings, to keep durable mechnical accuracy

System functions:
BQ series medium wire cut EDM adopts computer control, X,Y,U,V,4 axis simultaneously controlled, the discharge parameter can be automatic selected and control. It is programmed with internationally universal ISO code.The main system functions are as following:

mirror machining	proportionally scaling
conventional taper cutting	top-bottom abnormality cutting
single-stage machining	4 axis simultaneously cutting
program editing	automatic wire radius compensation
automatically machining condition convert	simulation check
return halfway	pitch compensation
automatic edge finding	automatic center finding
wire alignment	graphic real time tracking and check
subprogram calling	unmanned processing(power-off after finishing)
back to the origin point and suspension point	wire feeding speed adjustment

Full travel reposition accuracy ≤ ±0.003mm

Measured by Laser Interfermeter. Reverse error : 0.0009mm System deviation: 0.0016mm Average deviation: 0.0015mm Accuracy: 0.0016mm Repeatability: 0.0009mm R+(single repeatability): 0.000mm R-(single repeatability): 0.000mm A+(single accuracy): 0.0016mm A-(single accuracy): 0.0014mm
Delivery 3000 sets a year:



Contact us for more details, you will get reply within 24 hours .
