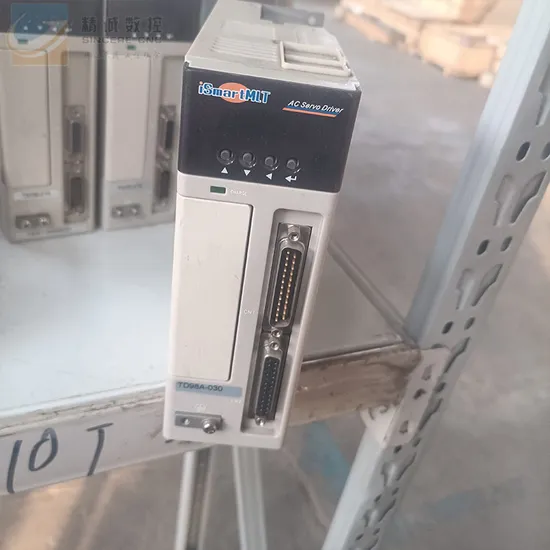

Tb98A-30 Drive

Product Description

Model: JCK5050
System available: FANUC, SIEMENS, GSK, KND,MLT, HCN etc.
Double spindle
2-axis function
Max machining diameter: 590mm
Mechanical spindle
Features
*Each axis equipped with imported high-precision linear guide,ball screws and precise bearings. * Using synchronous guide bush structure,realize high-speed and high-precision machining. * With guide bush or without guide bush switching flexiblely to meet different needs of processing. * Key components with gas sealing structure, oil and slag prevention, improving service life and stability. * Select high torque motor, high rigidity and high strength slipway for each axis and tool holder to meet the requirements of large cutting volume and high efficiency. * High scalability, tool quantities matched with different requirements of processing, reaching great cost-effective.
* Available with ER20 tools to increase the machining range.

Name	Unit	JCK5050
Maximum rotary diameter of machine bed	mm	590
Maximum rotary diameter of machine pallet	mm	155
Max workpiece length	mm	460
Spindle bore and nose		A2-6
CNC control system		GSK 980series(reference)
X/Z servo motor		GSK 8.5N*M
Drive		GSK
Spindle chuck type		Hydraulic chucks
Chuck Size	inch	8
Spindle through-hole diameter	mm	72
Maximum bar passing diameter	mm	62
Frequency converters		Hpmont(7.5KW:HD3M - 4T07G)
Maximum spindle speed	r/min	3500
Number of spindle speed stagcs		Servo Continuously Variable Speed
Electric knife holder		Yaxing.Hongda
Type of tool holder		8-station turret or row of knives
X-axis travel	mm	780
Z-axis travel	mm	465
X - direction lead screw	mm	HJG - 3210
Z - direction lead screw	mm	HJG - 4012
X-axis rapid traverse speed	m/min	18
Z-axis rapid traverse speed	m/min	20
Machine Size	mm	2500*2000*1950
Machine weight		3500kg
