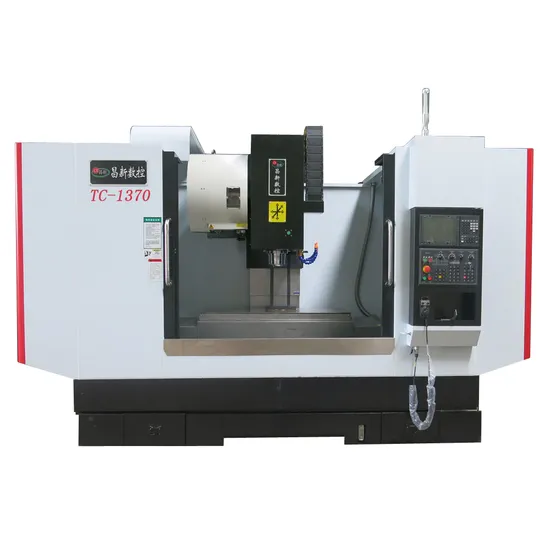

3 Axis/4 Axis / 5 Axis Vmc CNC Milling Machine Price Tc-1370

3 Axis/4 Axis / 5 Axis Vmc CNC Milling Machine Price Tc-1370

US$45,652.18-47,536.23 1 set (MOQ)

Basic Info.

Model NO.
TC-1370
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.003-0.005mm
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Table Size
1500*700mm
Table Max Load
1000kg
Spindle Taper
Bt50
Spindle Motor
11-15kw
Spindle Speed
8000rpm
Specification
3650*3150*2950mm
Trademark
Chansin
Origin
China
HS Code
8457101000
Production Capacity
1000sets/Year

Product Description

Product Description
3 axis/4 axis / 5 axis vmc cnc milling machine price TC-1370
Features:
* cast iron high strength body
* Taiwan Syntec,Japan MITSUBISHI,Fanuc, Germany Siemens nc system
* Taiwan spindle BT50 direct connection
* Hiwin/PMI ball screw
* NSK bearing
* HIwin linear guide rails
* The cutting of the cooling system
* Full enclosed guard
* Automatic lubricating system
* Mechanical abnormal alarm trichromatic lamp
* BT50 arm type tool magazine (24 tools capacity)
Specifications of TC-1370:
Machine Body Casting three linear guide ways high-strength body
Spindle original import Taiwan WLT / TD, 8000 rpm ,direct connection
System Mitsubishi M80A/Fanuc 0i-MF/Taiwan Syntec
Spindle motor Mitsubishi /Fanuc/Syntec
Three-axis motor Mitsubishi /Fanuc/Syntec
Automatic lubrication system pressurized volumetric automatic oiler, automatic balance distribution of lubricants (joint venture Baoteng brand oiler)
Head balance system The body comes with a counterweight balancing system
High pressure chip system high pressure motor, high pressure flushing (joint venture Sinaer brand water pump)
Screw original Taiwan imported Hiwin screw
Spindle cooling plus independent oil cooling system (joint venture Ruike brand oil cooler)
Tool Magazine Taiwan Sanjie arm type with 24 BT50 tools capacity
Controller standard Mitsubishi M80A/Fanuc 0i-MF/Taiwan Syntec color display
X, Y, Z bearings standard German FAG or Japan NSK
Triaxial roller screw standard Taiwan Taiwan Hiwin / PMI
Spindle Knife cylinder Standard Taiwan North Kui / Hao Cheng
Couplings Standard Germany BK3 SW*J
Wind system combined with solenoid valve (triple) standard joint venture Ogreut
The main electrical accessories standard Germany Schneider, Merlin Gerin
Other air pressure components standard joint venture Ogreut
Circuit breakers, relays standard Germany Schneider, Merlin Gerin
Electric box air fan standard joint venture FuRuize
Transformer standard joint venture AoHengda
Work LED lamp standard Taiwan Ou Si
Hand control electronic hand wheel standard Taiwan NEMICON
Three-axis telescopic shield standard joint venture Zhenfei
Full cover standard joint venture Jiancheng

Cnc milling machine center CX-1370
X/Y/Z-Axis Travel 1300/700/700mm
Distance from Spindle Nose to Table 190-890mm
Distance from Spindle Center to Column Guide Rail 757mm
Working Table Size 1500*700mm
Table Max Load 1000kg
T Slot 5-18*135
Spindle Speed 8000rpm
Spindle Motor Power 11-15kw
X/Y/Z-Axis Motor Power 3.0/3.0/3.0kw
Rapid Traverse(X/Y/Z) 24000mm/24000mm/18000mm/min
Cutting Speed 0-10000mm/min
Spindle Taper Diameter BT50/155mm
Positioning Accuracy ±0.008mm/500mm
Repeat Positioning Accuracy ±0.001mm/500mm
Total Electricity Demand 25KW
Machine Size 3650*3150*2950mm
Machine Weight 10.5ton
Accessories Tool box (1 set) Tool Holder(2 pcs) Machine operating manual Operation and programming manual Servo Motor and Controller Manual High pressure spray gun(1 pcs)

Payment Term:
Payment:40% deposit,the balance will be paid before shipping.
Delivery:
20-30 days after received the deposit payment.
Remarks:
1.Warranty:One year free warranty and life time maintenance.
2.Loading port: Shenzhen/Guangzhou
3.Engineers are available to serve overseas, you are responsible for the air tickets and accommodations expenses. The price above is not including this expenses.
4th/5th rotary table optional:
FAQ
Q1: How can I choose the most suitable machines ?
A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .Q2: What's your main products of your company?A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and soon.Q3: What's the Payment Terms ?A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.Q4: What's the MOQ?A4: 1setQ5: What's the warranty?A5: One year.
