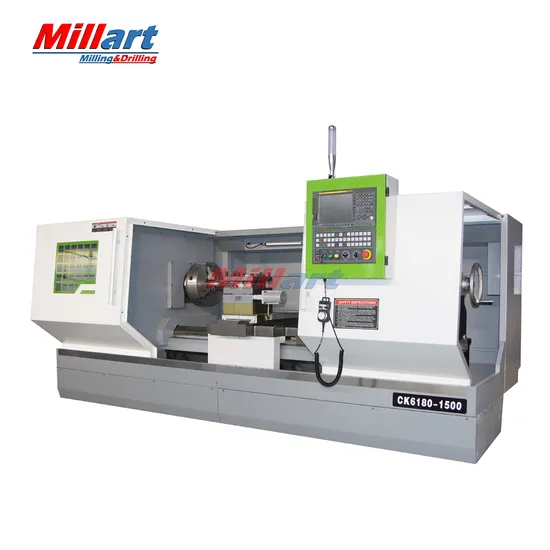

CNC Lathe Machine Price CNC Ck6180 Flat Bed CNC Turning Machine Price
| US$15,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6180
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Max. Swing Over Bed
800mm
Max. Swing Over Cross Slide
520mm
Spindle Bore
104mm
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
8458110090
Production Capacity
100 PCS/Month
Product Description
CNC Lathe Machine Price CNC CK6180 Flat Bed CNC Turning Machine PriceTechnical parameter:
| MODEL | CK6180 | ||
| Capacity | Swing over bed | mm | 800 |
| Swing over cross slide | mm | 520 | |
| Distance between centers | mm | 1500 | |
| Width of bed way | mm | 550 | |
| Spindle | Spindle bore | mm | 104 |
| Spindle bore taper | - | MetricĪ¦120, MT#5 | |
| Spindle nose type | - | C11 | |
| Spindle speed steps | - | 3 Manual,Stepless | |
| Spindle speed range | rpm | 10-1000 | |
| Chuck size | mm | 315 | |
| Chuck type | - | 3-jaw manual | |
| Turret | Turret type | - | Electric turret 4 position |
| Tool shank size | mm | 32x32 | |
| Carriage | X axis travel | mm | 420 |
| Z axis travel | mm | 1400 | |
| X axis rapid traverse speed | mm/min | 4000 | |
| Z axis rapid traverse speed | mm/min | 4000 | |
| Tailstock | Tailstock quill diameter | mm | 104 |
| Tailstock quill taper | - | MT#5 | |
| Tailstock quill travel | mm | 250 | |
| Motors | Main spindle motor | kW | Servo 11 |
| Coolant pump motor | kW | 0.125 | |
| Accuracy | Positioning accuracy | mm | 0.020 |
| Repositioning accuracy | mm | 0.010 | |
| Dimensions | Width x Height | mm | 2100x1740 |
| Length | mm | 3690 | |
| Weight | Net weight | T | 4.8 |
Standard accessories:
| Fanuc 0i TF controller |
| Coolant system |
| Lighting system |
| Manual tailstock |
| Electric turret 4 positions |
| Lubrication system |
| Manual 3 jaw chuck |
Optional accessories:
| Hydraulic 3 jaw chuck |
| Hydraulic tailstock |
| Electric 6 station turre |
| Steady rest |
| Follow rest |
| Live center |
